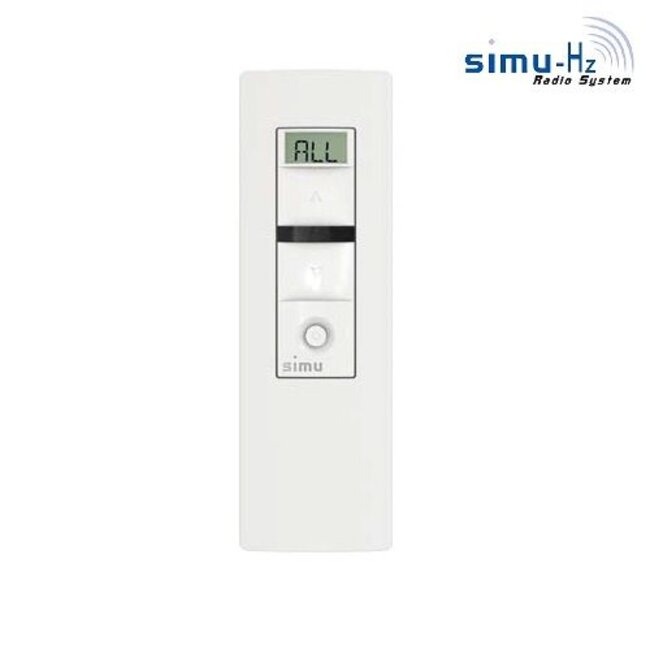

Simu 5-channel HZ handheld transmitter

Simu Hz 5-channel 433 MHz handheld transmitter

Applicable with a product equipped with Simu Hz receiver or Simu tube motor with integrated HZ receiver.
- 5-channel remote control
- frequency 433.42 MHz
- 5 channels with sixth channel for group control
- including LCD display, 2 characters per channel
- rolling code
- easy to program
- Handheld transmitter comes standard with a white cover frame
- frames in anthracite, taupe, red, blue or aluminium can be ordered separately
- battery supplied as standard
- three buttons (up-stop-down)
- supplied with a handy magnetic attachment plate

Setting a new Simu Hz transmitter with integrated receiver using an already functioning transmitter
1. take an already programmed Simu HZ transmitter
2. set this transmitter to the correct channel
3. press the programming button on the back until the Roller shutter responds with a short movement.
Take the new Simu HZ transmitter.
5. set this transmitter to the correct channel
6. briefly press the programming button on the rear until the roller shutter responds with a short movement.
7. Repeat these steps with each channel
8. the new Simu HZ transmitter is set
