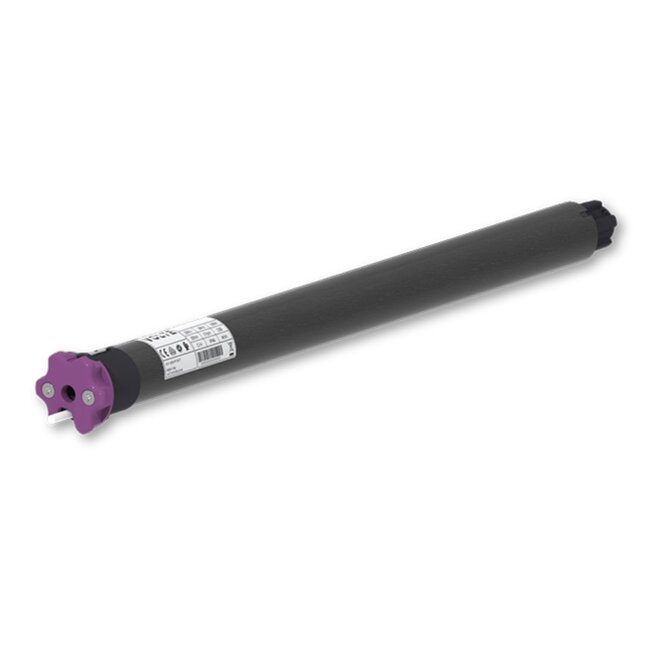

Volte 50 ET-A awning motor with fabric stretch compensation

Volte 50 ET-A awning motor with mechanical adjustment

- electronic adjustment
- downward adjustment with Switch
- automatic or manual upper end adjustment
- only for products with top mechanical stop
- perfect awning closure through fabric stretch compensation
- available in 10, 20 and 40 Nm Nm
- speed 17 rpm
- supply voltage 230 Volt
- noise level 47 to 57 DB
- 2.5 m 4-wire white motor cable
- protection class IP44

Volte 50 ET-A tubular motor is available in the following versions
- Volte 50 ET-A 10/17 - 10 Nm - 17 rpm - 46 DB - 120 Watt - 593 mm - 1.98 kg
- Volte 50 ET-A 20/17 - 20 Nm - 17 rpm - 53 DB - 190 Watt - 631 mm - 2.12 kg
- Volte 50 ET-A 40/17 - 40 Nm - 17 rpm - 57 DB - 240 Watt - 661 mm - 2.12 kg
