Becker Adaption kit 8k125 - L series motors

Becker adaption set SW125

This adapter set for SW125 axles is suitable for Becker L-series tube motors and allows mounting a Becker roller shutter motor in an 8-sided SW125 tube with a wall thickness of 1.5 mm.

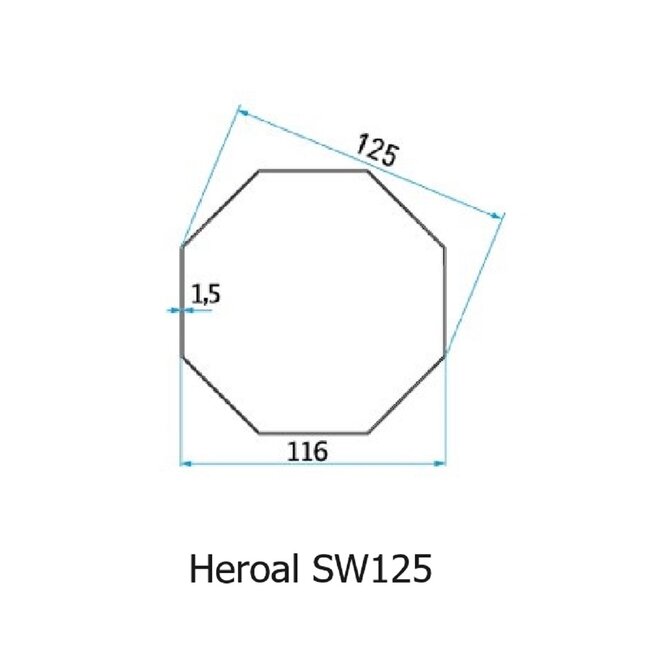

Please note when measuring: normally, an 8-sided Axle/Shaft is measured from flat side to flat side. For this Heroal SW125 tube, that measurement is 116 mm. The designation 125 mm is the size measured across the corners. See image for additional explanation.

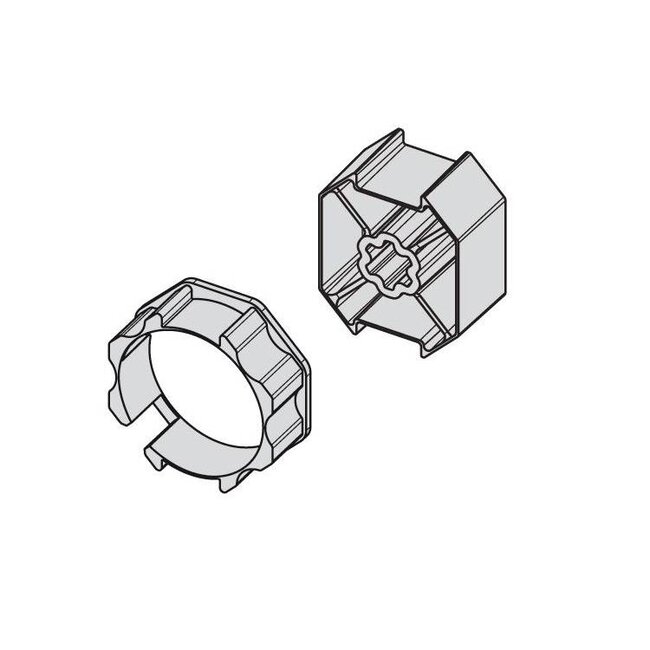

The adapter set for Becker L-series motors consists of two parts:
- adapter: sits on the cable side of the Motor and, on mechanically adjusted motors, allows the adjustment spindle to rotate correctly.
- carriage: is located at the head end of the Motor and forms the connection between the tubular motor and the Axle/Shaft.

- Becker L-series (L44-L120)
