Cherubini Adaption set Ø 102 - 58 mm series

Cherubini adaption set Ø 102 - 58 mm series

Adapter set for a Ø 102 mm tube, suitable for the Cherubini 58 mm tube motors, the adapter set makes it possible to adapt a Cherubini 58 mm tube motor to a Ø 102 tube with an outer diameter of 102 mm and a wall thickness of ± 3 mm.

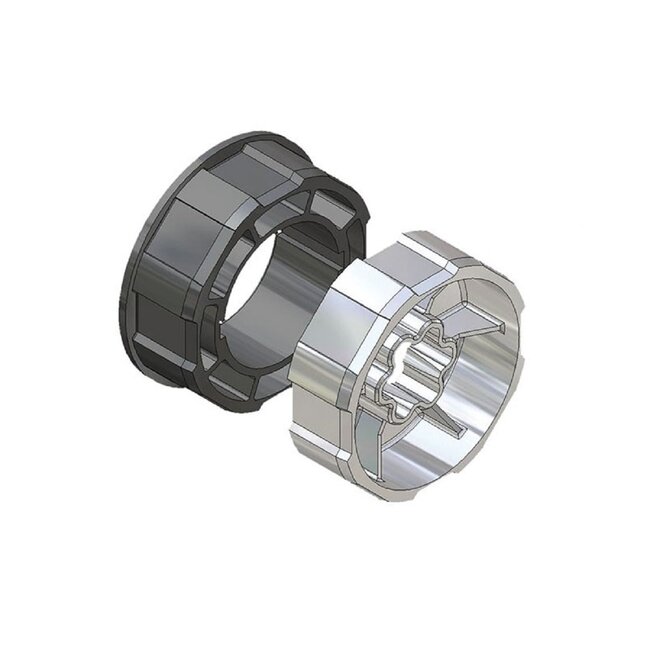

An adapter set for Cherubini 58 mm tube motors consists of an adapter and carrier.
The adapter is the part on the motor wire side which, in motors with a mechanical adjustment, ensures that the spindle of the motor adjustment runs.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.

This adapter set Ø 102 mm is suitable for all Cherubini 58 mm tubular motors.
