Cherubini Adaption set Ø 89 mm Axle/Shaft with cloth slot - 45 mm series

Cherubini adaptation set Ø 89 mm Axle/Shaft with cloth slot - 45 mm series

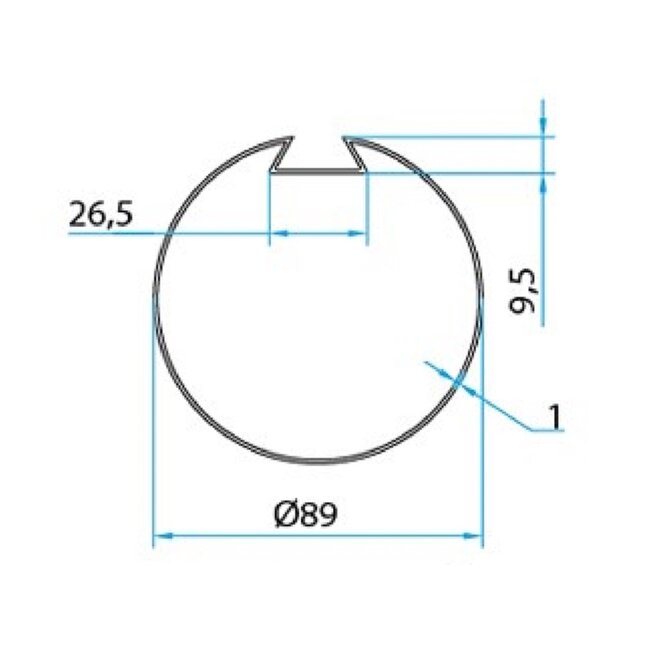

The adapter set for a Deprat Ø 89 mm Axle/Shaft with cloth slot, suitable for the Cherubini Ø 45 tubular motor, the adapter set makes it possible to adapt a Cherubini Ø 45 awning motor to a Ø 63 mm tube with cloth slot with an outer diameter of 89 mm and a wall thickness of 1 mm.

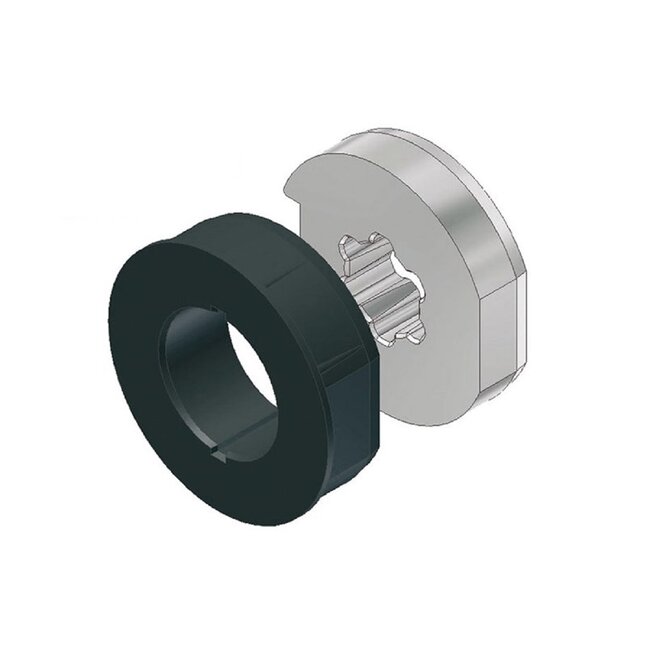

An adapter set for the Cherubini Ø 45 tube motor consists of an adapter and carriage.
The adapter is the part on the motor wire side which, in motors with mechanical adjustment, ensures that the spindle of the motor adjustment runs.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.

This adapter set for a Deprat Ø 89 mm with cloth slot is suitable for all 45 mm tubular motors by Cherubini
