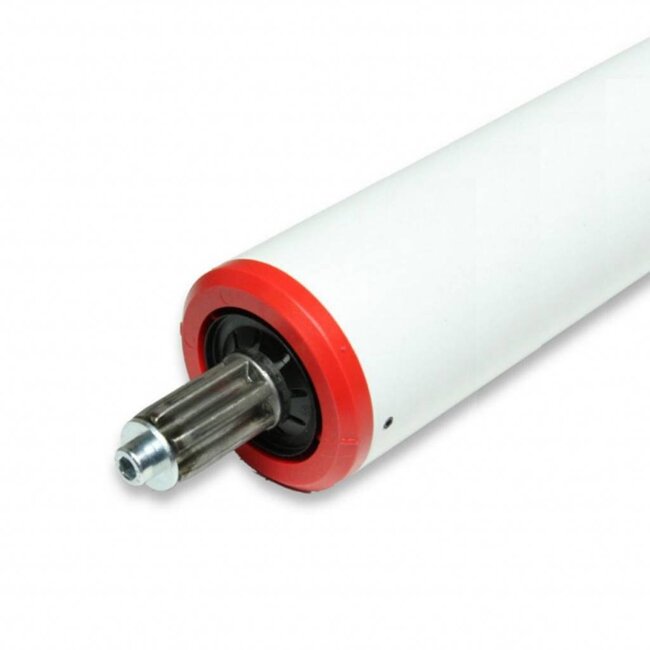

Becker awning motor L..-..-E12, electronic adjustment

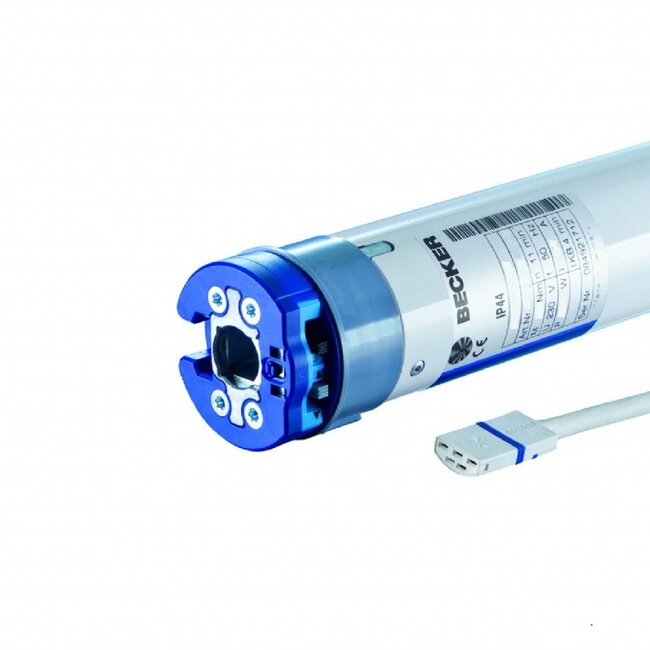

Becker awning motor P..-..-E12 with electronic limit switches

Universal sun protection motor with electronic limit switch. Perfectly matched to blinds and screens with many detailed functions.

- Tubular motor of the Becker P..-..-E12 series
- supplied without motor support and adapter set
- suitable for drive shafts from Ø 63 mm
- replacement for the L..-..PS & L..-..C PS series
- available in 50 to 120 Nm
- speed 17 rpm at 50 Nm and 11 rpm at 60, 80 & 120 Nm
- electronic limit switch
- simple adjustment of end positions on motor head using rotary pins
- blocking detection in UP and DOWN direction
- fabric relief switchable on / off
- automatic fabric length compensation
- increased closing force for cassette awnings
- Adjustment of end positions with conventional control element, e.g. rotary switch
- auto install function
- parallel switching without isolating relay
- soft stop at the top, optimum adjustment of closing force to protect the fabric
- motor head rewindable
