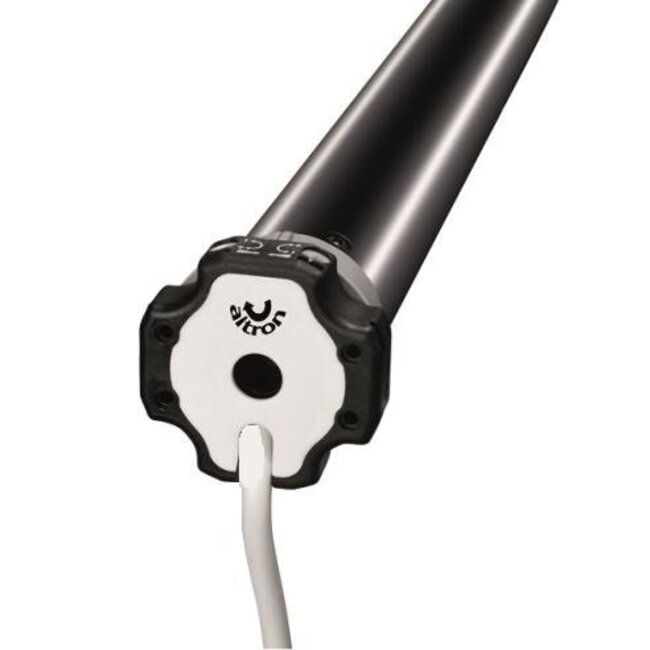

Altron Black tubular motor with mechanical end adjustment

Altron Black tubular motor

The Altron Black tubular motor is no longer in production, as an alternative we will deliver a Cherubini 45 mm tubular motor, this motor will fit in the Altron motor support, the Altron adapter set no longer fits.
You will need to select the right adapter set for this motor:

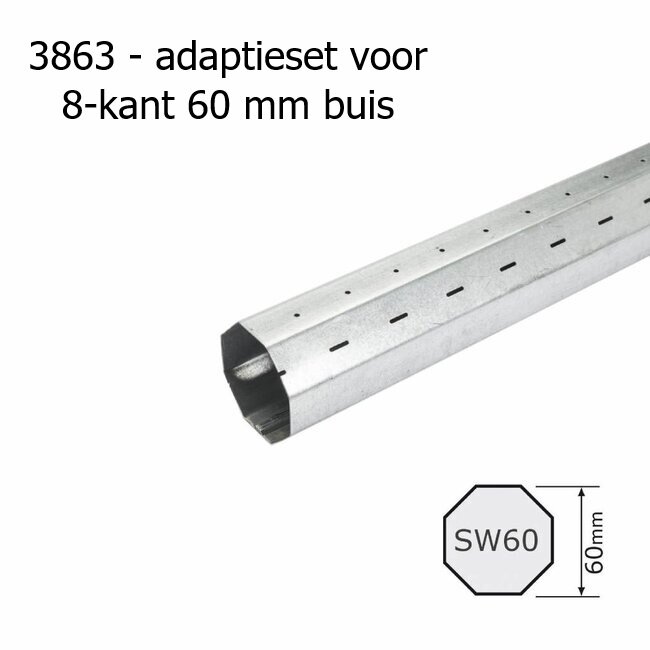

- adapter set 8 side 60 (residential roller shutters)

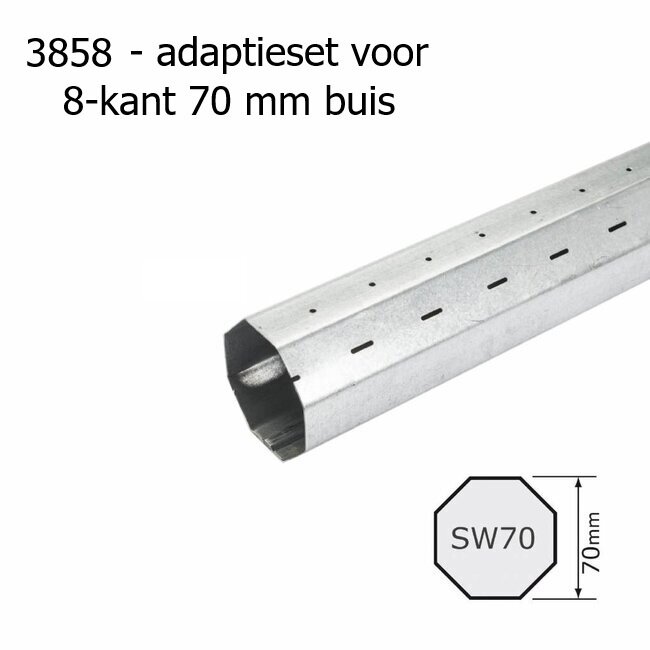

- adapter set 8 side 70 (garage roller shutters)

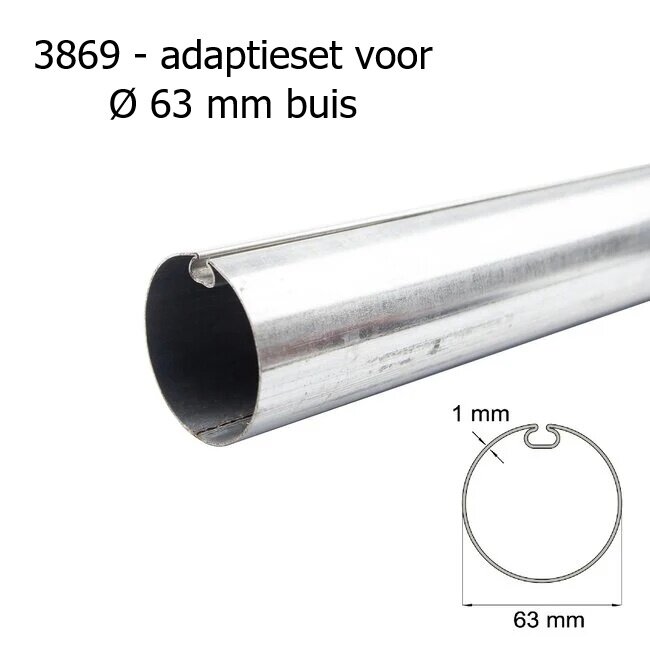

- adapter set Ø 63 mm (screens and drop-down shutters)
- adapter set Ø 78 mm (articulated shutters)

- Motor support not included in delivery
- including (purple) clips so that Altron support can be used
- tubular motor 230 V/50 Hz
- with mechanical final adjustment
- speed 12 and 17 rpm
- available in 8 to 50 Nm
- Black tube motor fits tube with a minimum inner diameter of 45 mm
- final adjustment capacity 16 revolutions
- motor cable length 2.7 m
- not suitable for continuous use

Altron Black tubular motors are replaced by the following motors
- Bl 08/17 --> Cherubini 10/17 - 10 Nm - 17 rpm
- Bl 15/17 --> Cherubini 20/17 - 20 Nm - 17 rpm
- Bl 25/17 --> Cherubini 30/17 - 30 Nm - 17 rpm
- Bl 30/17 --> Cherubini 30/17 - 30 Nm - 17 rpm
- Bl 35/17 --> Cherubini 40/17 - 40 Nm - 17 rpm
- Bl 45/12 --> Cherubini 40/17 - 40 Nm - 17 rpm
- Bl 50/12 --> Cherubini 50/12 - 50 Nm - 12 rpm
