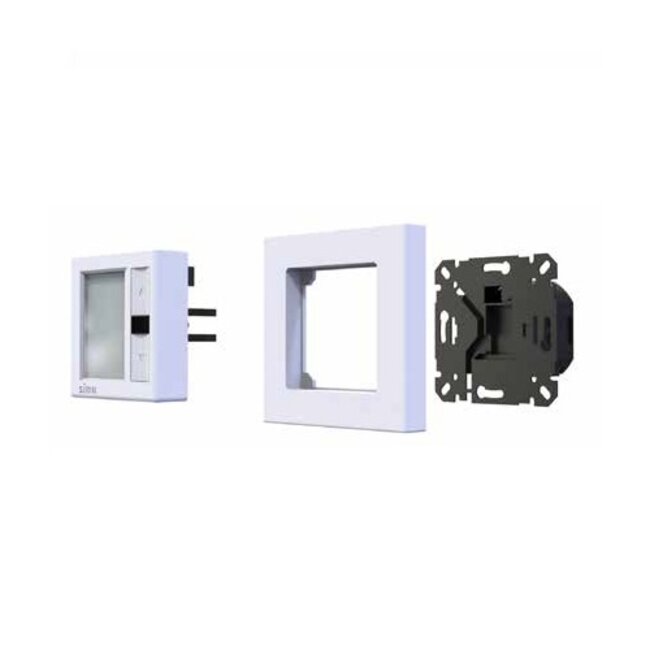

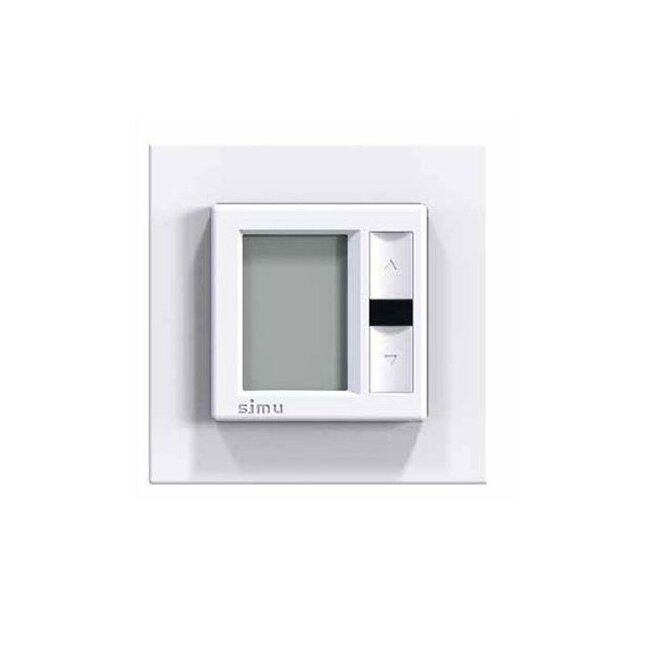

Simu Built-in timer

Simu timer for roller shutters

Built-in Simu timer is an easy-to-set timer. You always need one timer per motor. The Simu timer can be used for all wired motors supplied with 230 V, 4-wire (brown, black, blue and yellow/green wire).

- Wired timer
- suitable for all corded tubular motors (with brown and black wire)
- 3 buttons (up-stop-down)
- automatic summer/winter time changeover
- presence simulation
- day and week program
- 1 up/down cycle per day
- long press on key to register an order
- settings easily deactivated in manual mode
- colour white
- supply voltage 230 AC / 50 Hz
- switching current 3 A / 230 V AC
- reserve power supply (in case of power failure) 3 hours
- protection class IP20
- dimensions: 80x80x42 mm
- operating temperature: 0 C to 60 C
- delivered without surface-mounted box (item 3660)
- option: sun/twilight sensor to clip onto window (item 3661)
