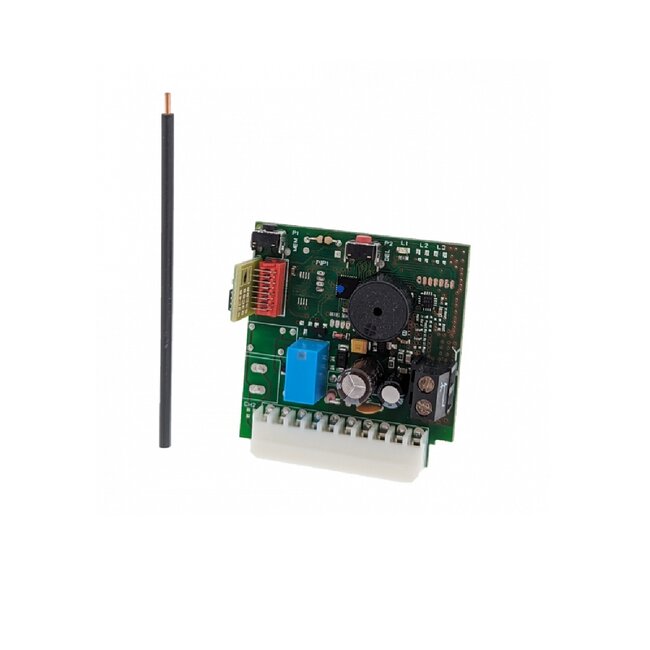

Pro-Line CND1 868 MHz single-channel receiver – Marantec Multi-Bit

Condoor Pro-Line CND1 1-channel - Marantec Multibit

In 2019, Condoor introduced the new Pro-Line operators with their own control system for industrial overhead doors. With this generation of control systems, the technology for using handheld transmitters and receivers also changed.

This receiver has been specially adapted for use in combination with this CND control unit and the previously used Marantec Multibit handheld transmitters

This means you do not need to replace your existing Marantec Multi-Bit handheld transmitters straight away if you are using a Pro-Line operator with a CND control unit. The receiver is simply installed in the C9630 control unit, after which the existing compatible Marantec Multi-Bit handheld transmitters can be paired with the receiver.

A practical solution for combining the new Condoor Pro-Line control unit with existing Marantec Multi-Bit handheld transmitters.

- 1-channel receiver
- 24 Volt DC power supply
- maximum relay load: 1 Ampere
- Operating temperature: –20 to 50 degrees Celsius
- Frequency: 868.3 MHz
- Marantec Multibit encoding/protocol
- storage capacity: 63 Transmitters
- Dimensions: 52×52 mm
