Pro-Line CND1 868 MHz single-channel receiver - Pro-Line CND1

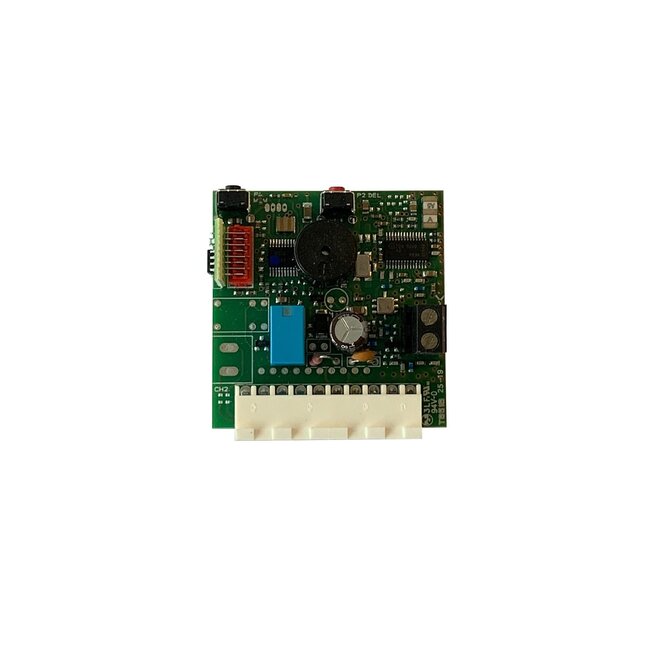

Condoor Pro-Line CND1 1-channel receiver

In 2019, Condoor introduced the new Pro-Line operators with advanced C9630 control units for industrial overhead doors. This technological advancement has not only changed the way industrial doors are operated, but has also led to a redesign of the receivers and transmitters.

With the new receiver, combined with the powerful Pro-Line CND1 Handheld transmitter, you can now effortlessly upgrade your industrial door operator to an advanced transmitter control system. Installing the receiver is a piece of cake – you simply click it into the C9630 control unit, after which you can then register the transmitters. This gives you full control over your industrial door with the convenience of a handheld transmitter. Experience the convenience of the future today with Condoor’s Pro-Line operators and C9630 control system.

- 1-channel receiver
- 24 Volt DC power supply
- maximum relay load: 1 ampere
- Operating temperature: -20 to 50 degrees Celsius
- Frequency: 868.3 MHz
- Pro-Line CND1 encoding/protocol
- storage capacity: 195 Transmitters
- Dimensions: 52 × 52 mm
