Geba Cody keypad complete set

Geba Cody code keyboard

Geba code keyboard for opening and closing doors or Roller shutters by entering a numerical code. Available with different as a combination of 4 code panels and 3 different controls. The keypad/code panel has a metal housing and is vandal-proof because the code panel is outside on the façade and the control system is inside.

- simple control and programming
- weatherproof and safe external installation
- various control options for your user groups
- power supply 20-28 VDC / 230 VAC
- switching contacts are max. 5 Ampere
- connection option of receiver module for control with Transmitter
- code panel with 5-metre cable
- choice of a combination of 4 code panels and 3 different controls
- code panel:

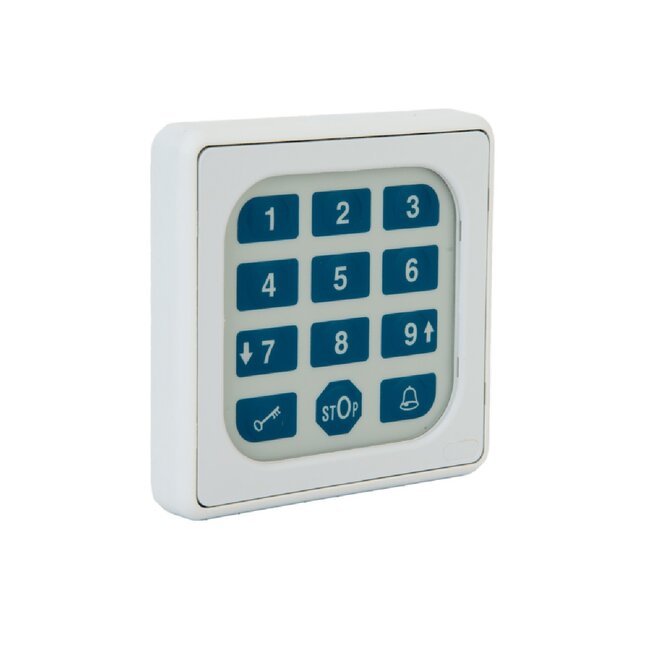

- Standard 1/2/3 --> metal frame, plastic film grid

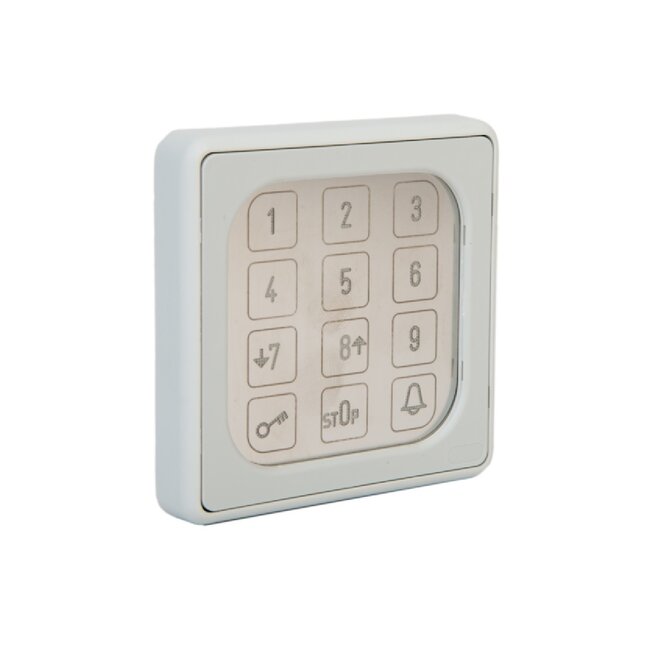

- Quadra-Line E --> metal frame and foil sensor

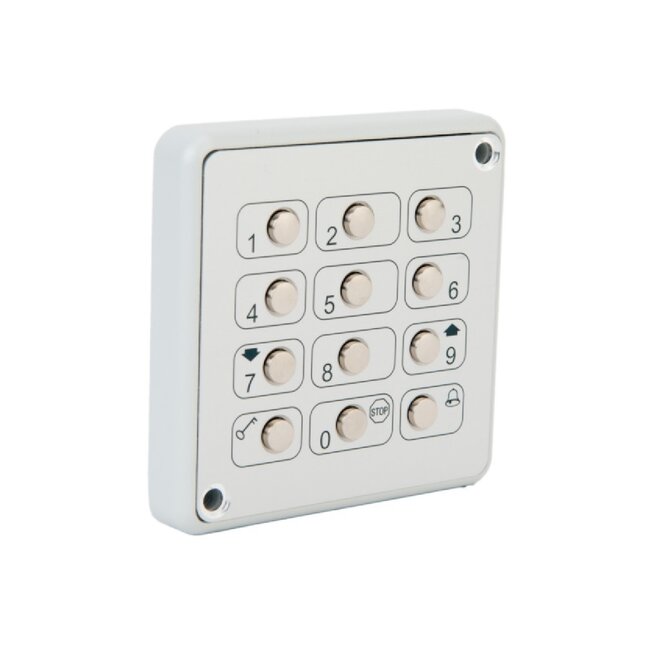

- Quadra-Line --> metal frame and push buttons

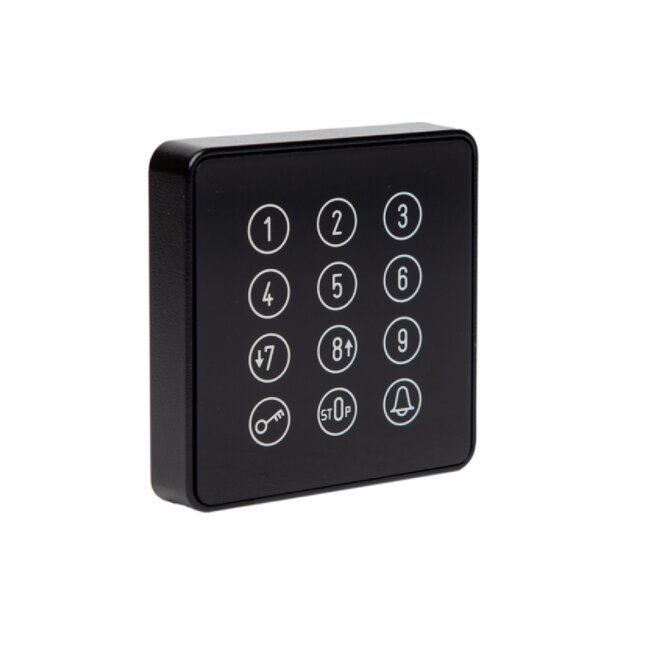

- Touch Black --> metal frame and black acrylic foil sensor

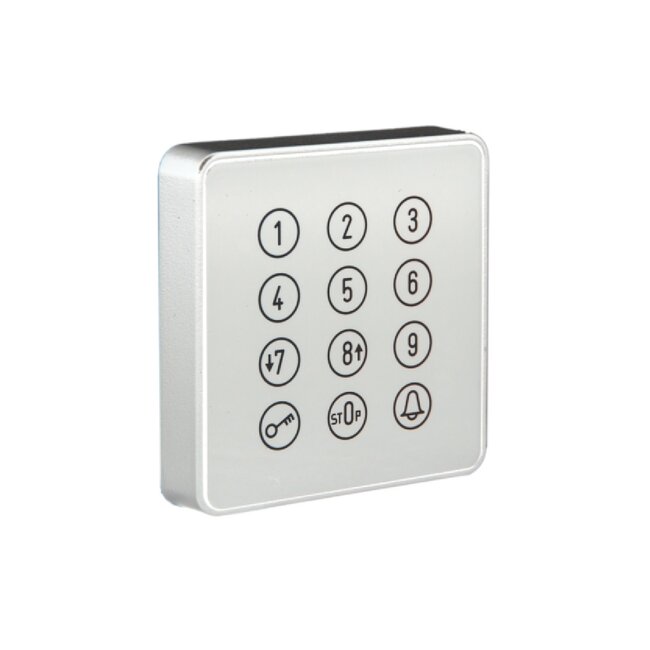

- Touch White --> metal frame and white acrylic foil probe
- control
- Cody Light --> potential-free NC/NO contact up to 4 codes
- COdy Universal 1 --> potential-free NC/NO contact max 50 codes
- Cody Universal 2 --> tubular motor connection (max 5A), max 50 codes
