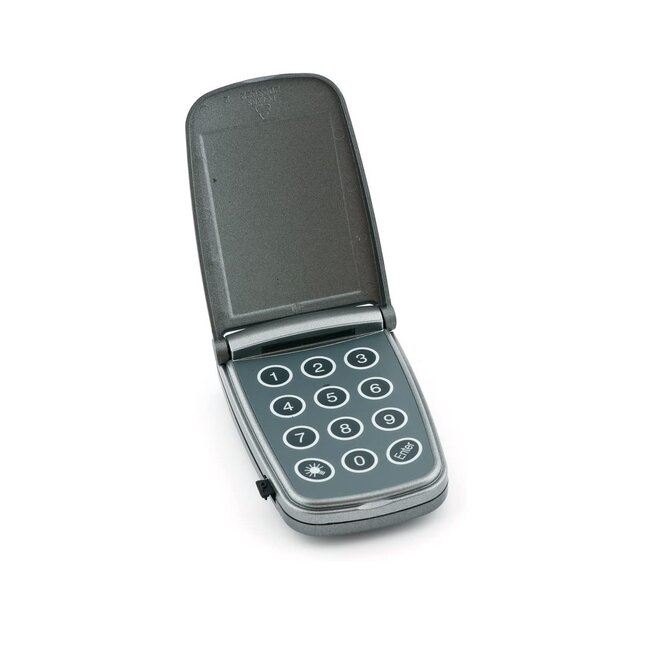

Marantec Command 231 - Multi-Bit code keyboard

Marantec Command 231 code keyboard

Code switch only suitable for Marantec or Proline drive systems with multi-bit receiver (grey Transmitter)

- Control by means of a 4-digit code
- frequency 868 MHz
- power supply 2x 3 V
- battery CR2032
- current consumption approx. 11 mA
- dimensions 70x100x30 mm (wxhxd)
- weight 120 grammes
- protection degree IP54
- 3 freely selectable user codes
- 1 freely selectable user code can be used 3 times, for temporary use
- 1 function key for free assignment
- signalling by red LED signal
- hinged cover protects the keypad from dirt
