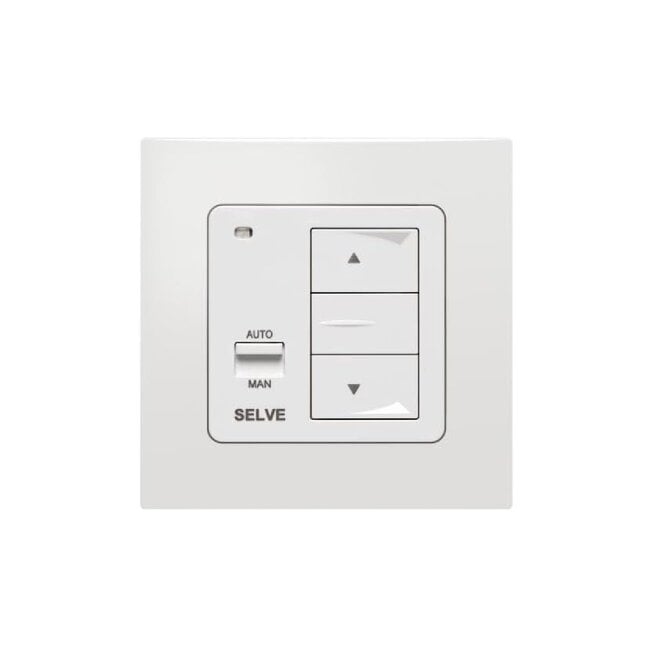

Selve Commeo Wall Send - 1-channel wall transmitter

Selve Commeo Wall Send - 1-channel wall transmitter

Bidirectional 1-channel wall switch for controlling a wireless receiver.
The commeo Wall Send can be programmed into several receivers and control them as one group. Equipped with a slide switch to easily disable automatic central commands, e.g. from the commeo Multi Send.

Intuitive Control with down, up and stop button
Feedback from the receiver is displayed with DUO-LED
AUTO/MAN slide switch to deactivate automatic commands
Installation in 50 x 50 mm frame, suitable for many switching programmes
Simple surface mounting
No electrical connection required

- Dimensions: 80 × 80 × 15 mm
- operating voltage: 3 V DC
- battery: 1 × CR 2032
- protection class: IP20
- permissible ambient temperature: 0°C to +55°C
- wall mounting
- frequency: 868 MHz

New Handheld transmitter programming in case of defective or missing transmitter

- power supply off for 3 seconds
- power supply on for 3 seconds
- power supply 3 seconds off
- power supply on
- press the PROG button on the transmitter for 3 seconds
- all the old transmitters/channels are deleted and the new transmitter
is programmed

Programming additional Handheld transmitters/channels

- press for 3 seconds on the PROG button of an already functioning
Handheld transmitter , the confirms this by briefly running open and closed.
- the receiver is in programming mode for 1 minute
- briefly press (1 sec.) the PROG button of the new hand-held transmitter
or the new channel
- the new transmitter or channel is now programmed
