Article number
6182
This Heroal F-HTF-20 drop-out guide is suitable for wall or frame mounting. The guide has a standard plastic guide lining and a 20 mm infill Read more.

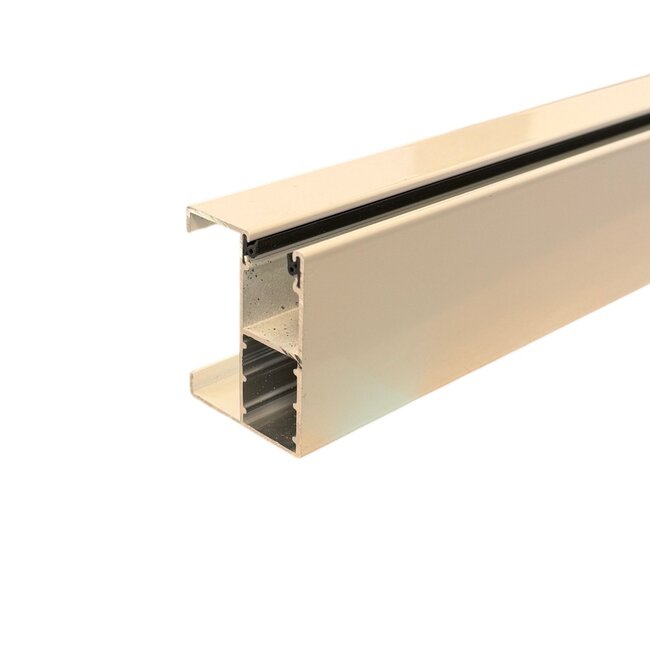

This Heroal F-HTF-20 drop-out guide is suitable for wall or frame mounting. The guide has a standard plastic guide lining and a 20 mm infill.
Optionally you can order an extra 20 mm filling with this guide, see the filling profile.

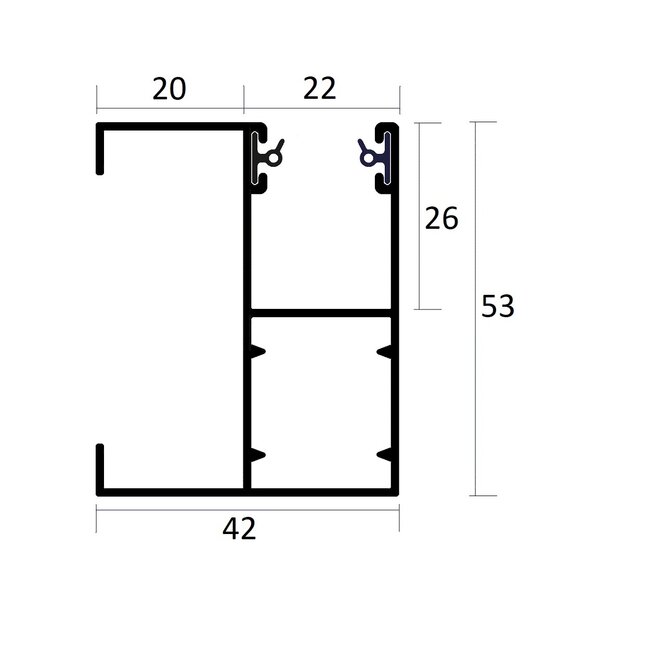

- width 53 mm
- thickness 42 mm (22 + 20)
- available in the colours:
- anthracite - RAL 7016
- blue - RAL 5011
- brown - 22
- cream white - RAL 9001
- grey - RAL 7038
- green (spruce) - RAL 6009
- hell beige - RAL 1013
- red - RAL 3004
- white - RAL 9016
- silver - RAL 9006
When ordering, please specify exact length in mm, the price is determined by the chosen scale
As these profiles are sawn to customer order and are custom-made, they cannot be returned.
PostNL and DHL have a length limitation, for lengths above this limit, transport with our own transport will be charged. Please keep in mind that our own transport is on route and therefore requires extra time.
Maximum length in our web shop is 3000 mm, slides are at trade length of 6000 mm in our production, longer lengths than 3000 mm are available on request.
