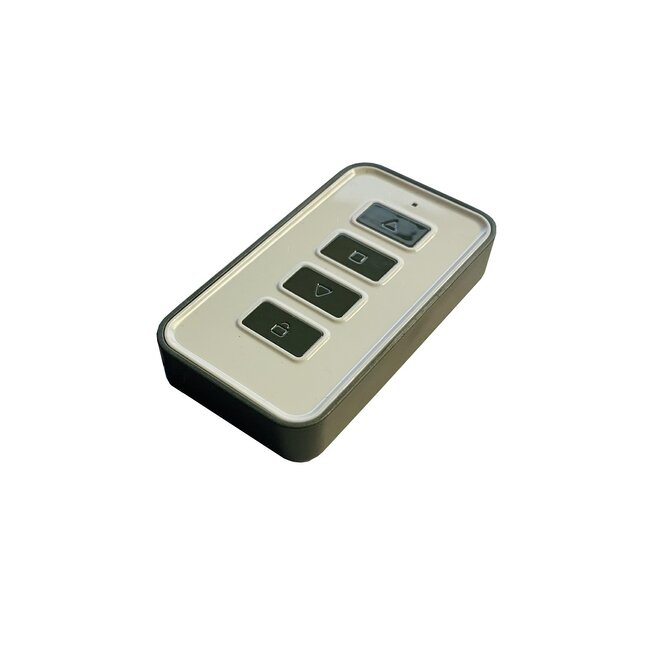

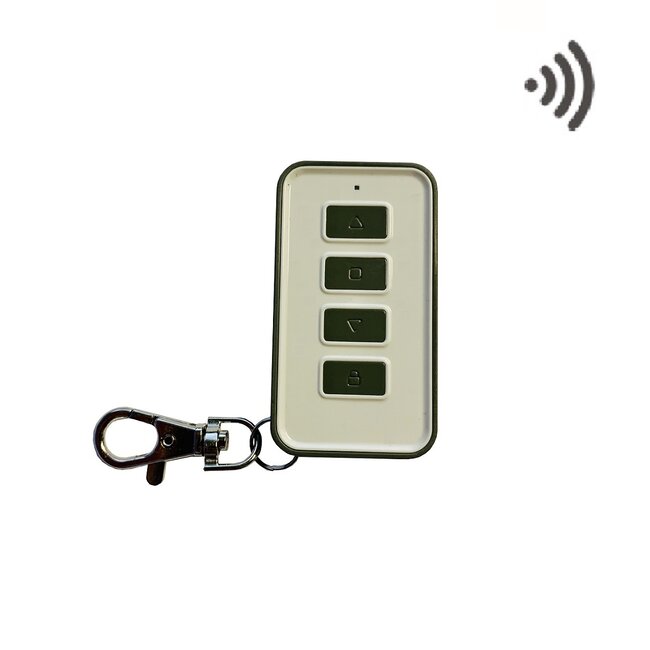

Faher DC2291 1-channel handheld transmitter

Brel or Faher DC2291 1-channel 433 MHz mini handheld transmitter

- 433.92 MHz
- 1-channel mini handheld transmitter
- size 32x62x12 mm
- this DC handheld transmitter is mono-directional
- you need another Faher transmitter to program this transmitter
- grey with white
- standard delivered with CR2032 battery

learning additional Handheld transmitter
- go to the Roller shutter where you want to learn the transmitter
- press 2x the P2 button of an already functioning Handheld transmitter
- Roller shutter Motor confirms with a beep
- Press once the P2 button of the new handheld transmitter
- Roller shutter motor confirms this action with 2x beeps
- Handheld transmitter is programmed

The P2 button can be located at the back or near the battery, the DC61, DC115A and DC2291 do not have a P2 button, use the "up" and "stop" buttons simultaneously as "P2" buttons
