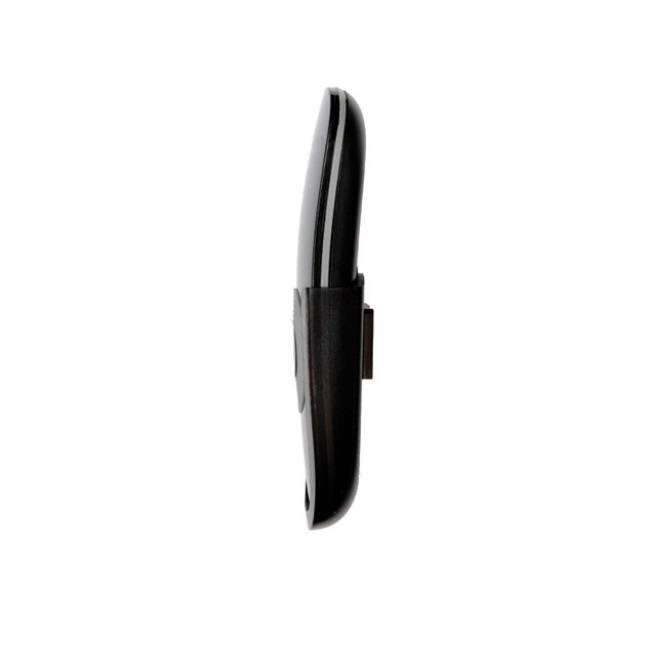

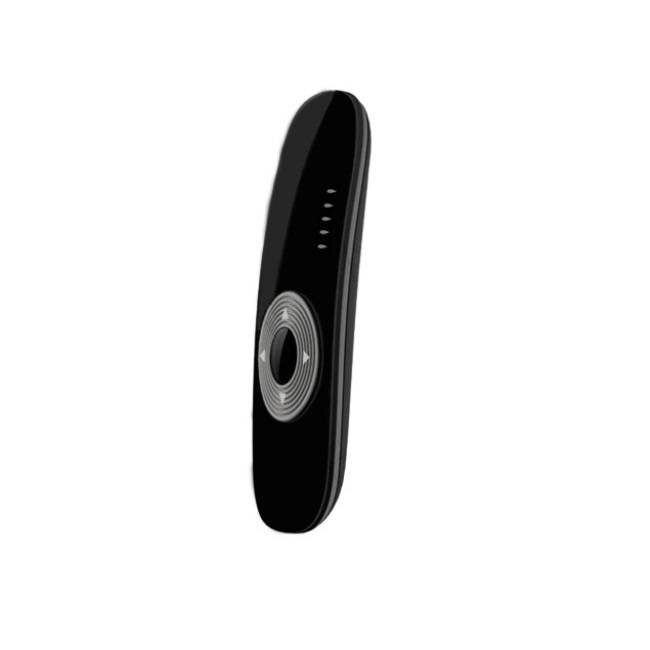

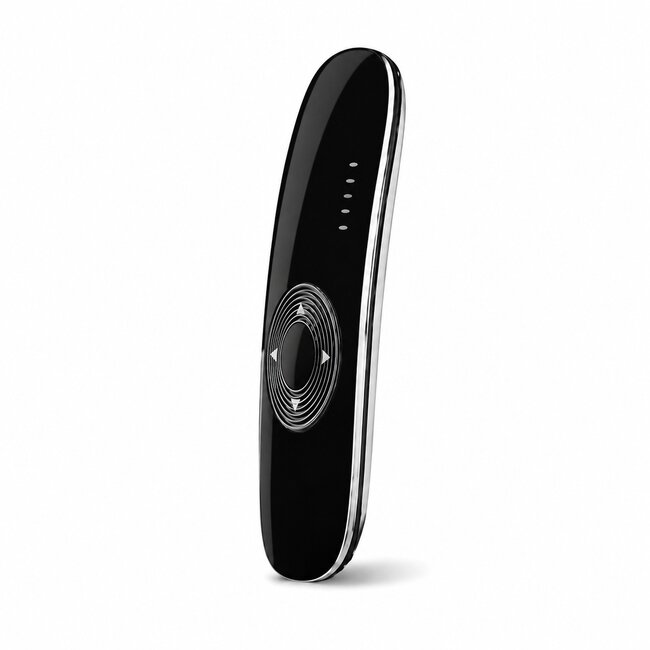

Brel DC306 5-channel handheld transmitter

Brel DC306 5-channel 433 MHz handheld transmitter

- suitable for Brel and Faher tubular motors
- also suitable as replacement for the Esmo DC306
- frequency 433 MHz
- 5 channel

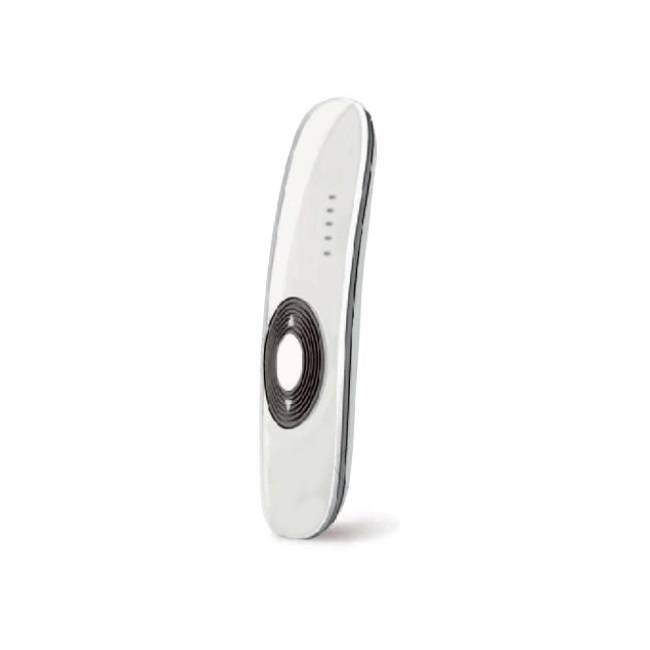

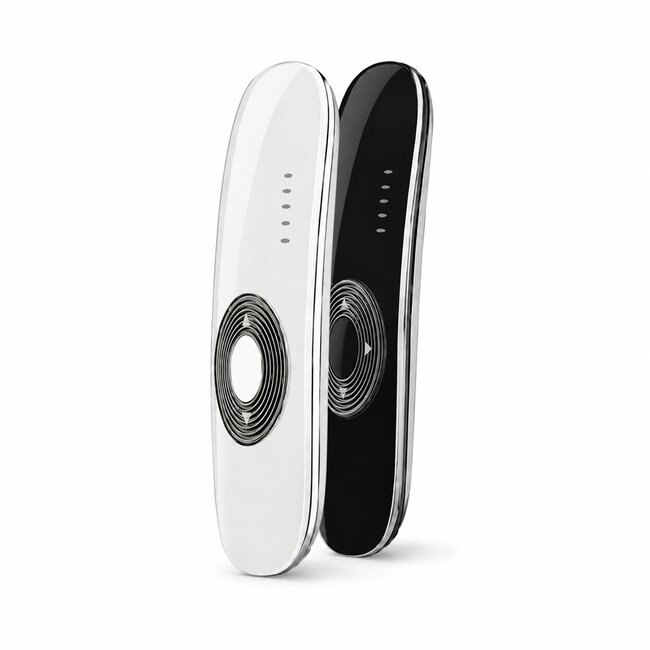

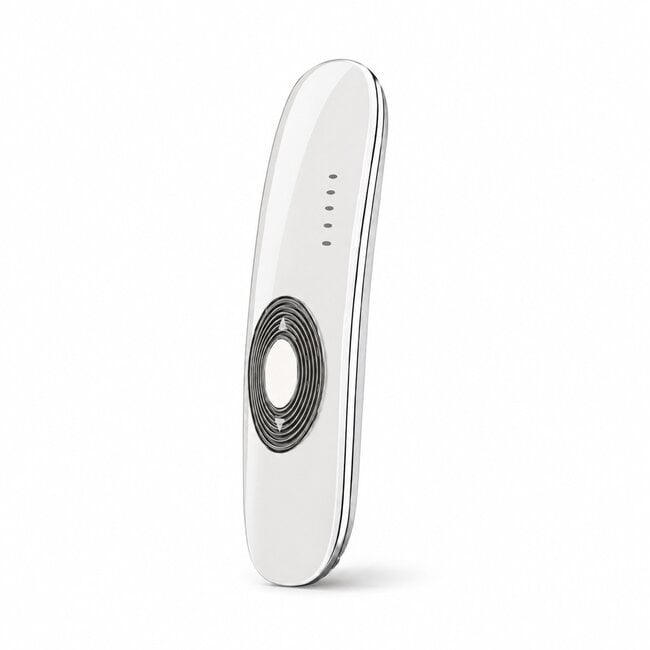

- available in white or black
- battery supplied as standard
- delivered as standard with wall holder

Teach-in additional Handheld transmitter
- go to the Roller shutter where the transmitter needs to be taught-in
- set the already functioning and new Handheld transmitter to the correct channel
- press the P2 button of an existing handheld transmitter twice
- Motor of the roller shutter confirms with a beep
- Press once the P2 button of the new handheld transmitter
- Roller shutter motor confirms this action with 2x beeps
- Handheld transmitter is programmed

The P2 button can be located at the back or near the battery, the DC61 or DC115A does not have a P2 button, use the "up" and "stop" buttons as "P2" buttons simultaneously

Teaching-in of new Handheld transmitter
- go to the Roller shutter where the transmitter needs to be taught-in
- set the already functioning and new Handheld transmitter to the correct channel
- disconnect power from the roller shutter, only the shutter on which this channel is to be learned
- Switch the power back on to the Motor and press the P2 button twice within 3 seconds
- then press the up or down button
- and finally the stop button
- Repeat these steps per channel/motor
