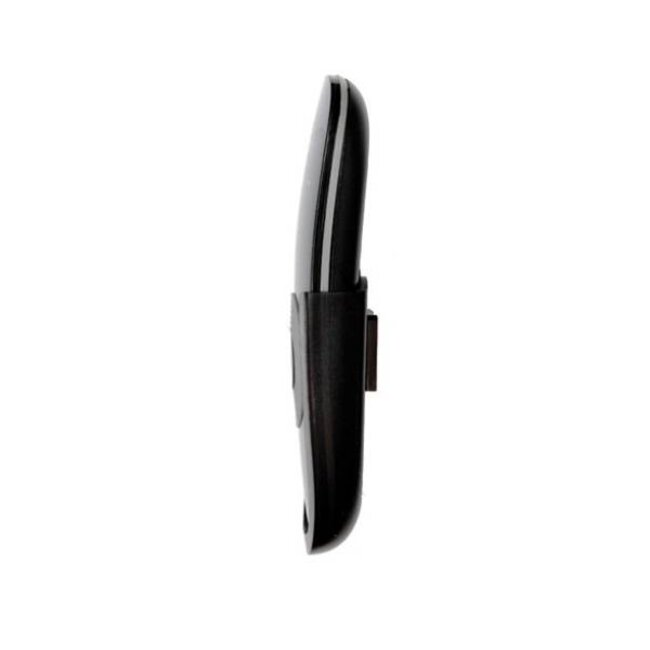

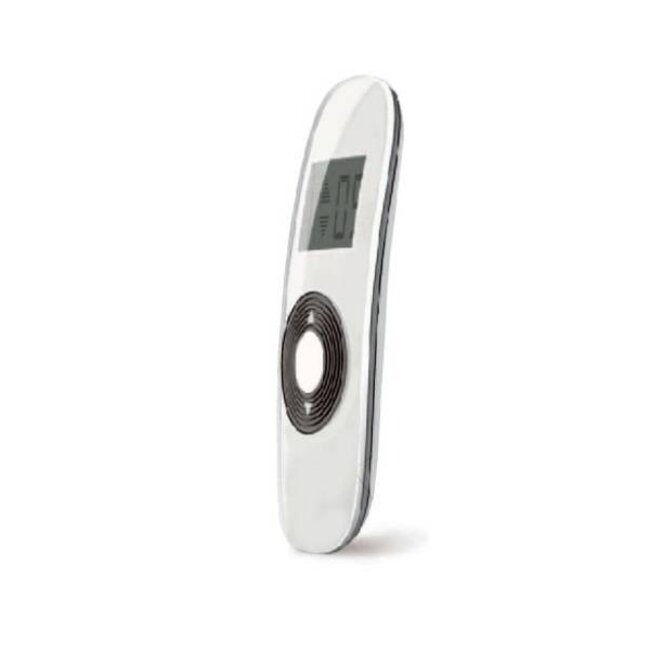

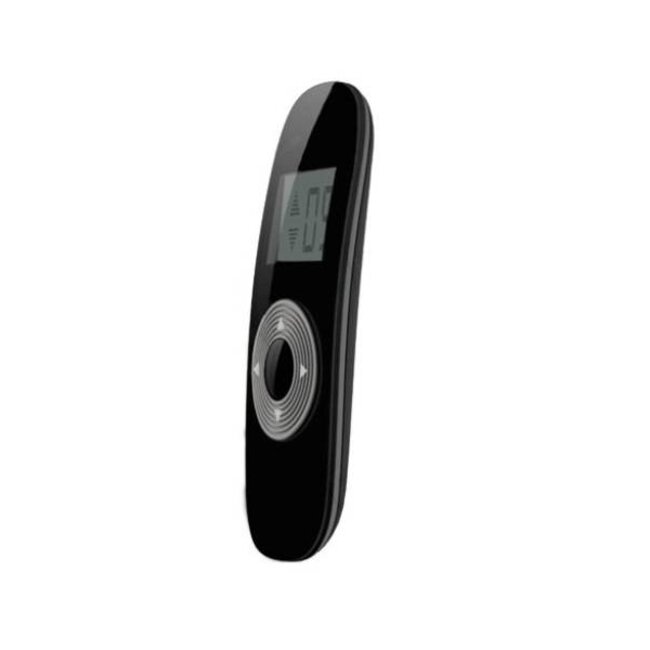

Faher DC307 9-channel handheld transmitter

Faher DC307 9-channel 433 MHz handheld transmitter

- 433 MHz
- 9 channels
- white or black
- battery supplied as standard
- wall holder supplied as standard

learning additional handheld transmitter (with used transmitter)
- go to the roller shutter where the transmitter has to be taught in
- set the already functioning and new Handheld transmitter to the correct channel
- press the P2 button of a handheld transmitter already in use twice
- Motor of the roller shutter confirms with a beep
- Press once the P2 button of the new handheld transmitter
- Roller shutter motor confirms this action with 2x beeps
- Handheld transmitter is programmed
- repeat these steps for each channel/motor

Teaching new Handheld transmitter
- go to the Roller shutter where the transmitter needs to be taught in
- set the new handheld transmitter to the correct channel
- disconnect power from the roller shutter, only the roller shutter on which this channel is to be learned
- Switch the power back on to the Motor and press the P2 button twice within 3 seconds
- then press the up or down button
- and finally the stop button
- Repeat these steps per channel/motor
