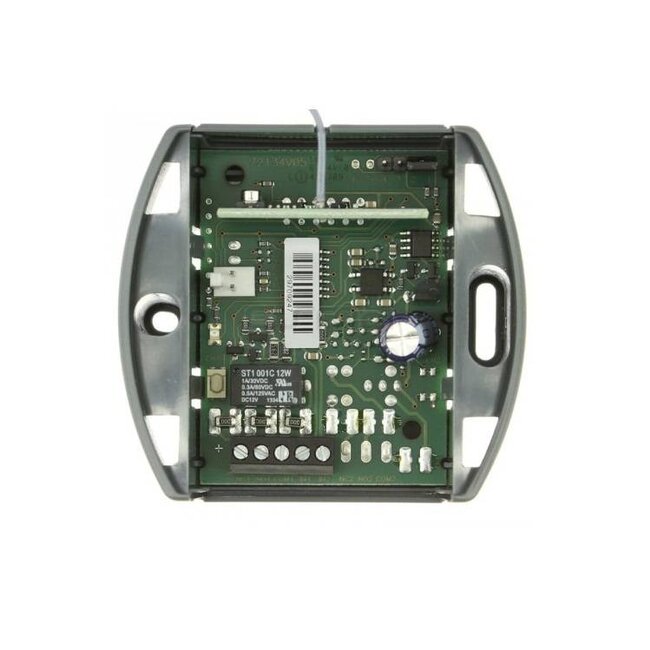

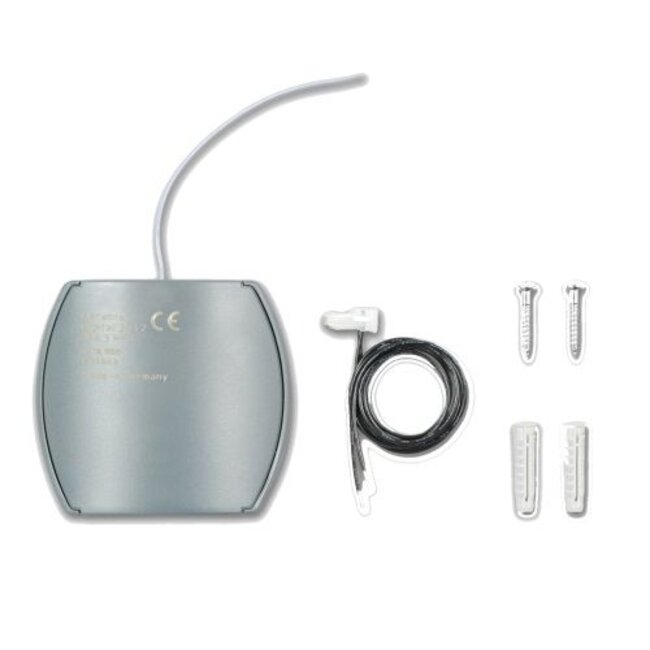

Marantec Digital 339, 1-channel multi-bit receiver

Marantec Universal Receiver Digital 339

- only available in 868 MHz
(when replacing Digital 161 - 433 MHz also order new transmitter)
- multi-bit
- 1 potential-free relay contact
- impulse, duration impulse or on/off function
- individually adjustable per channel
- connection option for external switch with pulse operation
- for direct switching of each relay
- dimensions 70x64x35 mm
- rated voltage 12 to 24 V AC
- current consumption approx. 5 mA
- protection rating IP20
- max. contact load 24 V AC1

download the manual of the Marantec Digital 339 here
