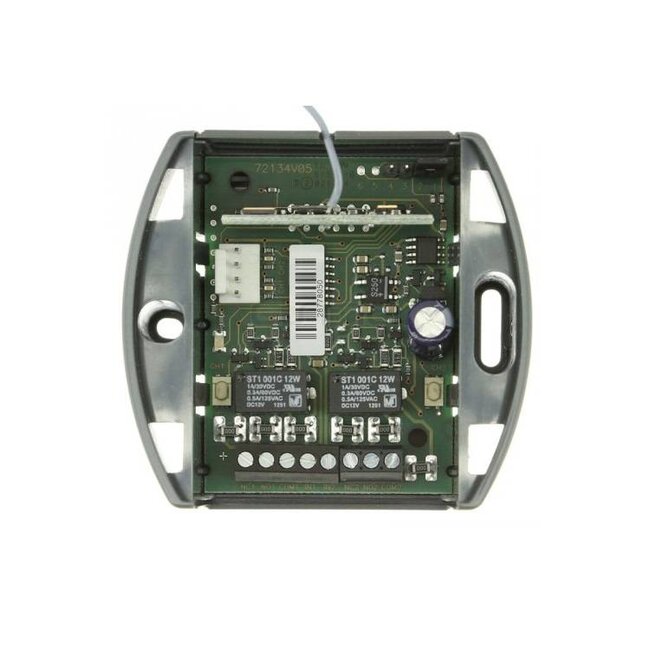

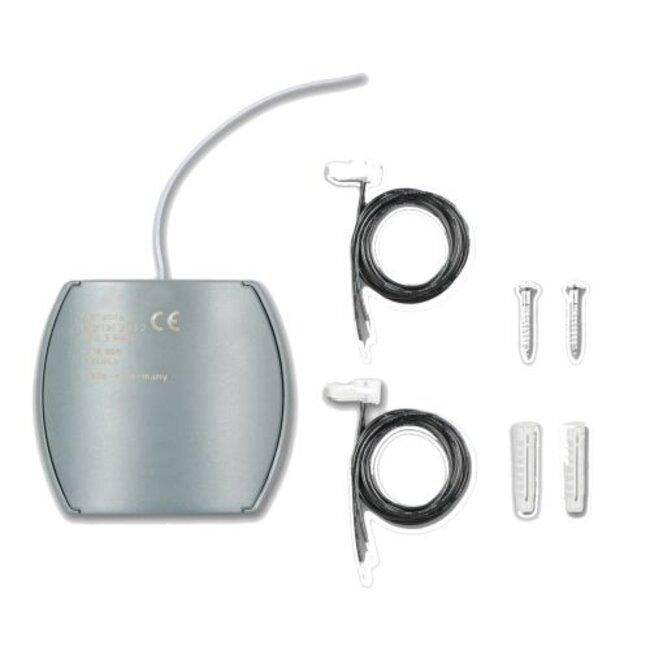

Marantec Digital 343, 2-channel multi-bit receiver

Marantec Universal Receiver Digital 343

- frequency 433 or 868 MHz
- multi-bit
- 2 potential-free relay contacts
- impulse, duration impulse or on/off function
- individually adjustable per channel
- connection option for external switch with pulse operation
- for direct switching of each relay
- dimensions 70x64x35 mm
- rated voltage 12 to 24 V AC
- current consumption approx. 5 mA
- degree of protection IP20
- maximum contact load 24 V AC1

download the manual of the Marantec Digital 343 here
