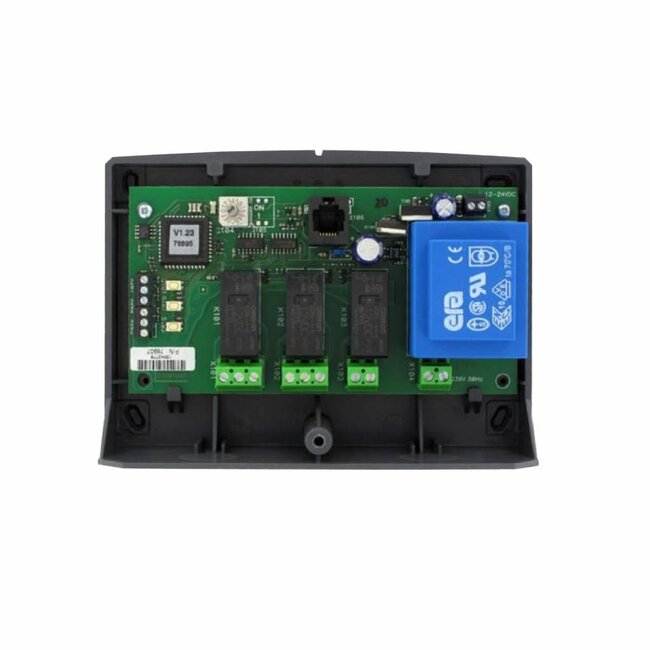

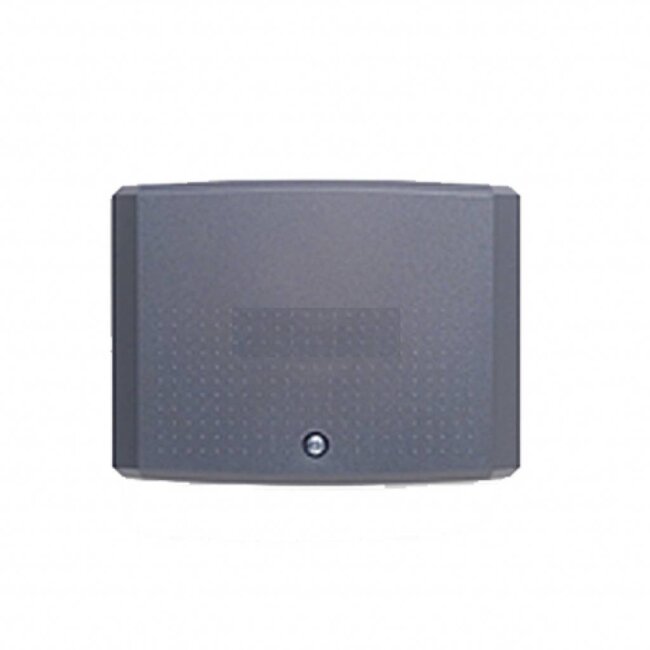

Marantec Digital 351, 3-channel universal receiver

Marantec Universal Receiver Digital 351

- frequency 433 or 868 MHz
- 3 potential-free relay contacts for free assignment
- impulse, Timer function (1/3/8/45 minutes) or on/off function
individually adjustable per channel
- individually adjustable per channel
- connection option for external switch with pulse control
- for direct switching of each relay
- dimensions 150x110x50 mm
- rated voltage 12 to 24 V AC
- current consumption approx. 5 mA
- protection rating IP32
- max. contact load 24 V AC1
