Elero Door Control steering box

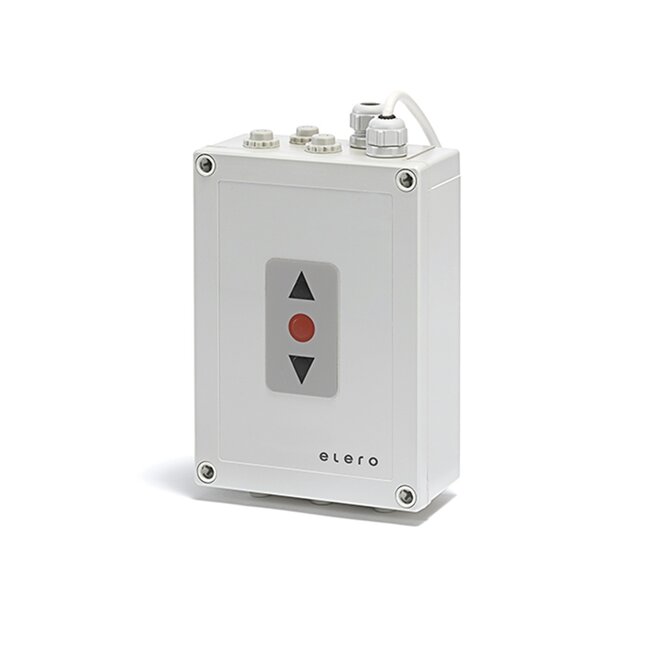

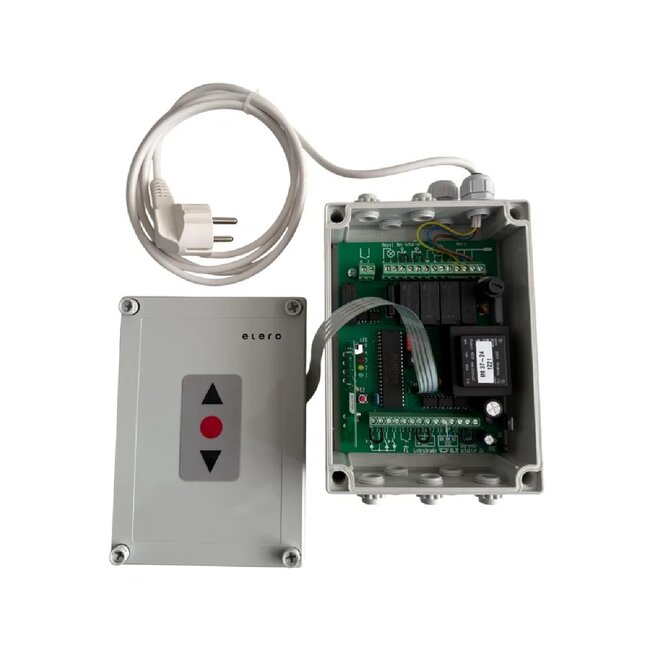

The comfortable door control for tubular motors type 9 - 15 W NHK and NMA with mechanical end adjustment. The Elero DoorControl is designed for the automatic operation of Roller shutters with a 230 Volt tubular motor. The controller is supplied with a 1.5-metre long connecting cable with protective plug and a foil keypad (up-stop-down) integrated in the housing.

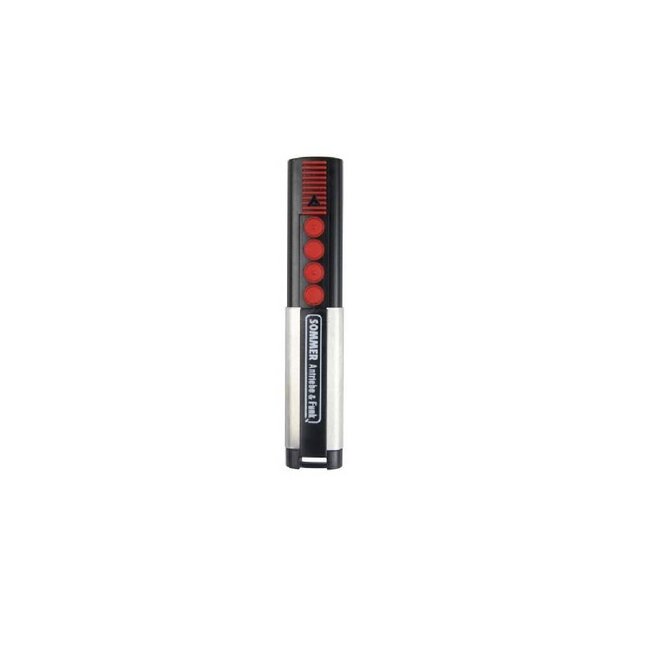

- including receiver and one Sommer handheld transmitter
- motor running time adjustable
- diagnostic display via LED
- connection for underrun protection
- optoelectronic switch strip (OSE) from Witt or Fraba
- an 8.2 kOhm resistor strip
- Test of the signal path, dead man's mode closed in case of defective underrun protection
- Dead man's mode adjustment / self-holding
- setting option for neutral / reversal to full open on activation of underrun
- light control option for impulse / 120 seconds, fault signal or traffic light green
- connection option traffic light red
