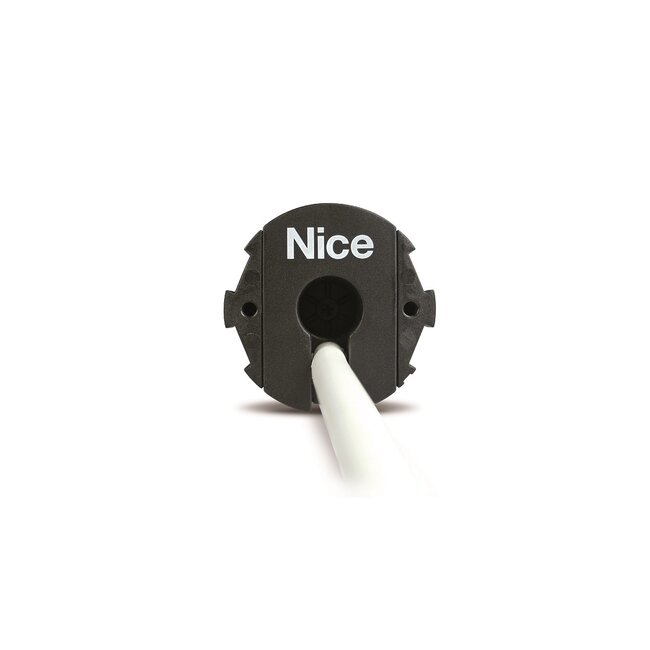

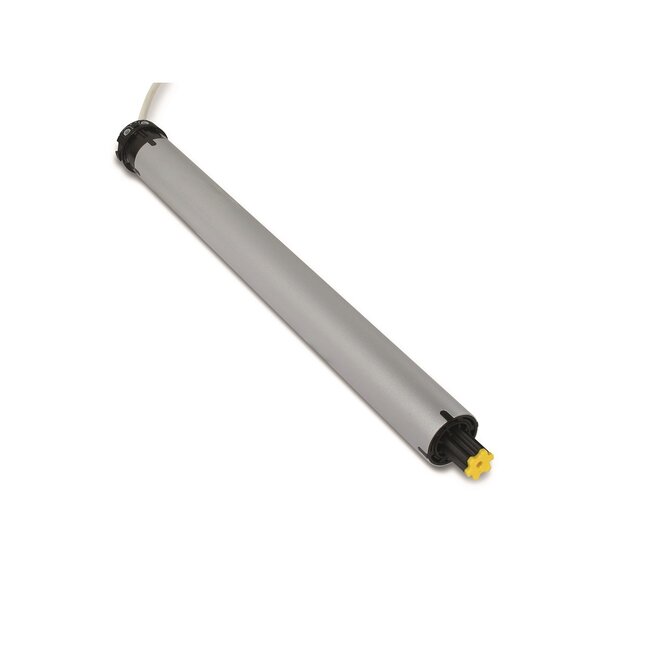

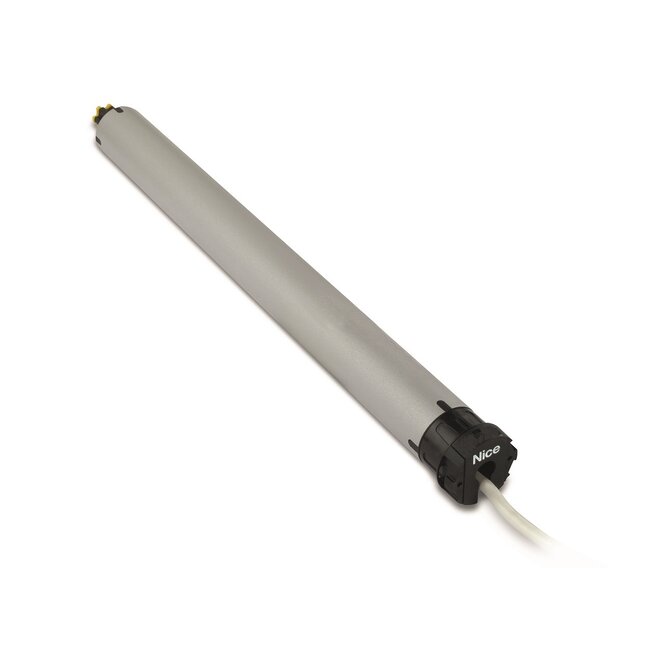

Nice Era Star SP roller shutter motor

Nice Era Star SP roller shutter motor

Nice Era Start SP is a Plug and Play tube motor with electronic limit switch and obstacle detection, which is particularly suitable for small Roller shutters of 6 Nm and 10 Nm and tube motor length of 496 mm. Very easy to install thanks to the Plug and Play adjustment. Also easy to assemble thanks to the new compact motor supports and the innovative click system to attach the adapter set. Wired and/or wireless connection to climate sensors via external control units.

- Suitable for Roller shutters with rigid joints and fixed stops
- Nice S series tubular motor with a diameter of Ø 35 mm
- electronic final adjustment
- hindrance detection in both the up and down direction when rigid joints are used
- motors can be connected in parallel
- supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- speed 11 rpm
- available in 6 and 10 Nm
- 3-core white cable with a length of 2.5 metres
- tubular motor fits in tube with a minimum diameter of 40 mm
- not suitable for continuous use

Type Nice Era Star SP tubular motors
- Nice Era Star SP 6 Nm - 11 rpm - length 496 mm
- Nice Era Star SP 10 Nm - 11 rpm - length 496 mm
