Simu External Hz receiver for tubular motors

SIMU external Hz receiver for roller shutter motors

This external SIMU Hz receiver enables you to adapt a wired tubular motor for control with a SIMU Hz handheld transmitter. A practical solution for modernising an existing Roller shutter or for use in a new installation.

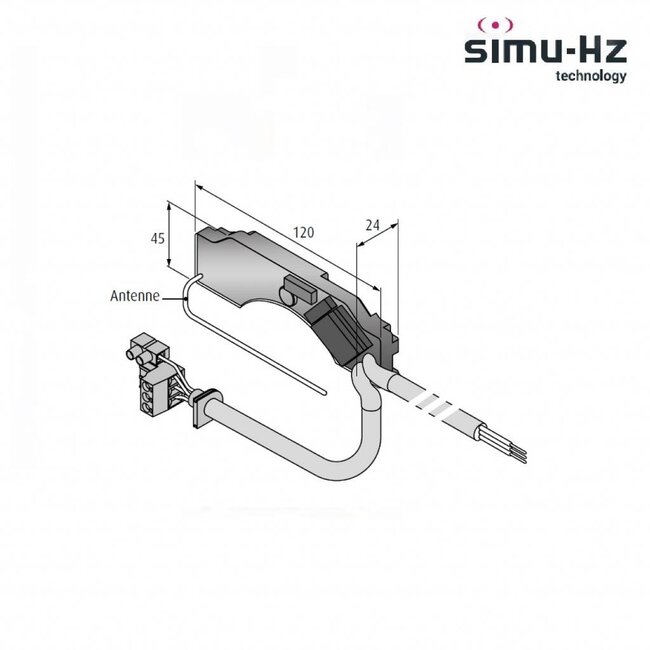

The receiver is fitted directly into the roller shutter box and, thanks to its screwless terminal blocks, can be quickly connected to the Motor and the 230V power supply. The receiver is compatible with all Handheld transmitters and automation products from the SIMU Hz range. Up to 12 transmitters can be registered to a single receiver.

Key features

• Makes a wired tubular motor suitable for SIMU Hz control
• Suitable for installation in the roller shutter box
• Simple connection with screwless terminals
• Compatible with the full SIMU Hz range
• Memory for up to 12 handheld transmitters
• Radio frequency: 433.42 MHz
• Protection class: IP44
• Supply voltage: 230 V – 50 Hz
• Operating temperature: -30 °C to +80 °C
