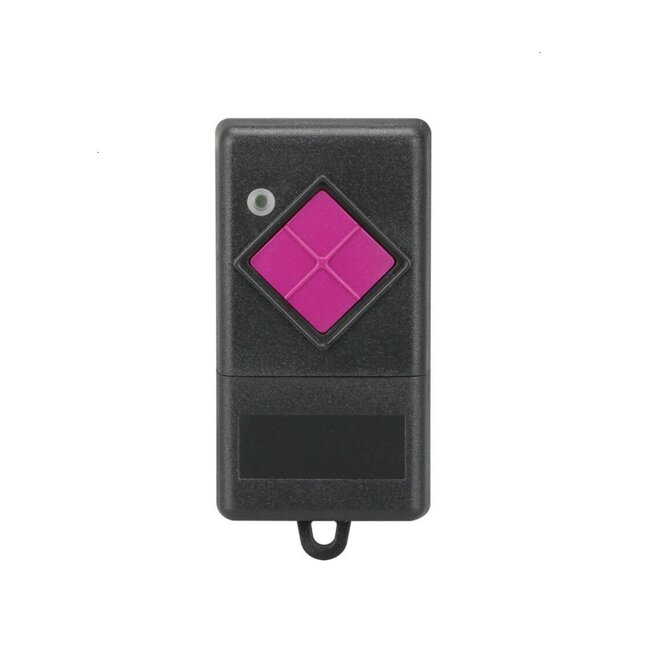

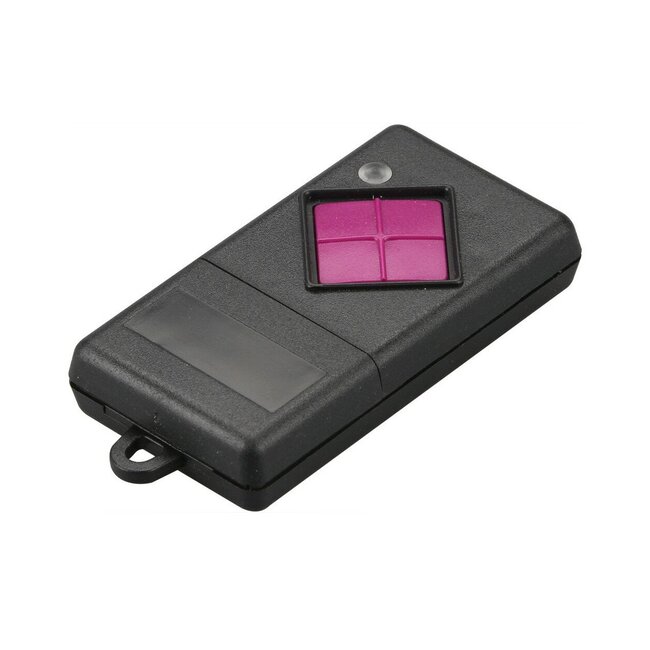

Dickert FHS10-01 - mini handheld transmitter

The Dickert FHS10-01 mini-handheld transmitter has one button and uses FM technology with an 18-bit linear code. This code is already permanently fixed in the software during production. To use the transmitter, it must be paired once with a Dickert FM wireless receiver at 40.685 MHz. Adjusting the code on the Transmitter is not possible.

- frequency 40.685 MHz
- 1 channels
- LED indicator for battery and transmission status
- Control LED is green

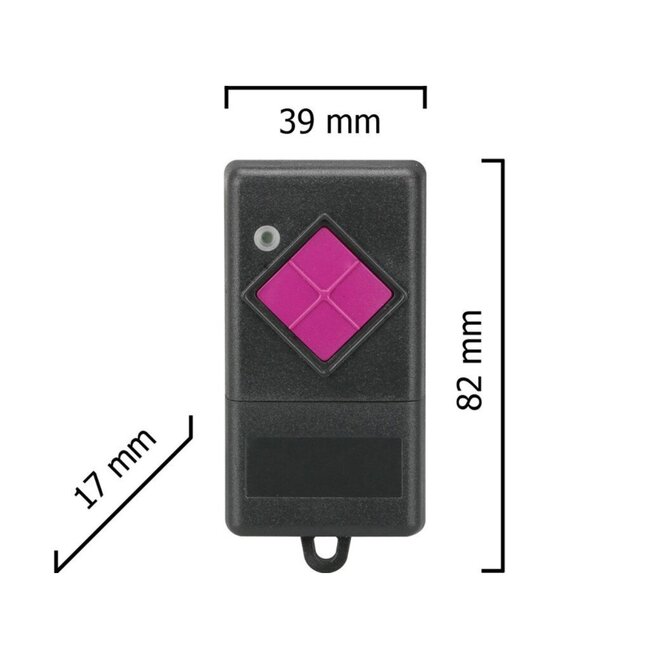

- dimensions 82 x 39 x 17 mm
- operating temperature -20°C to +60°C
- no dip switches for code setting
- linear fixed coding 4.7 million coding possibilities
- battery 12 Volt MN21
- weight 40 g

- replaces the following transmitters:
- Becker FHS 10-01
- Dickert FHS10-01 blue
- Dickert FHS20-03
- Normstahl FHS10-01
- Normstahl T40-1
- Normstahl T40-1M
- Novoferm FHS10-01

The colour of the LED for this model is linked to the frequency, models with different frequencies are not compatible. The LED of this Dickert FHS10-01 remote control is green, moreover, this transmitter does not have dipswitches for setting the code.
- orange LED --> model Dickert MAHS433-01, dipswitch coding
- red LED --> model Dickert MAHS40-01, dipswitch coding
- yellow-green LED --> model Dickert S10-433-A1L00, KeeLoq coding
