The Hörmann infill set is required for double-skinned Hörmann sectional doors type EPU 40 with 42/20 mm panel Read more.
This Hörmann infill set is required for double-skinned Hörmann sectional doors of the EPU 40 type with 42/20 mm profile to fit the infill plates for the lock and to compensate for height differences at the lock case of the door handle set.
As these door types do not have a full-length 42 mm section, they must be pressure-coated at the locking level. This prevents deformation in this area and ensures optimum fastening.
The mounting frame ensures height correction in relation to the 42 mm slat thickness.

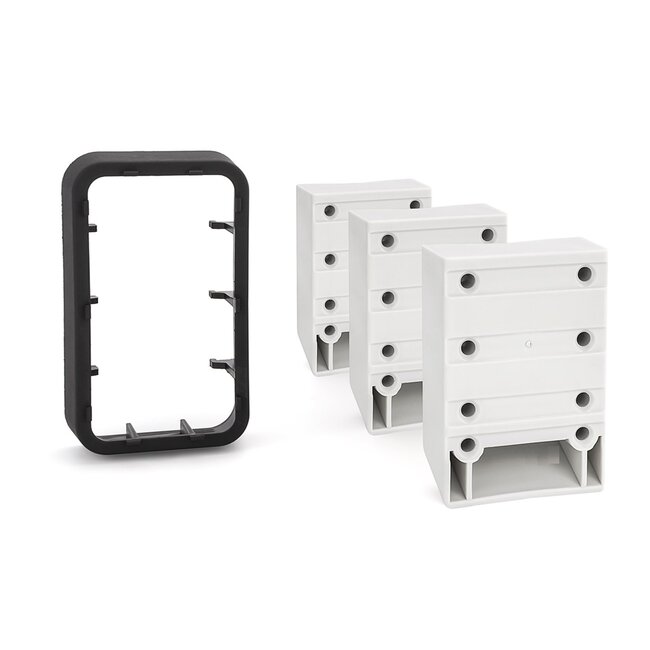

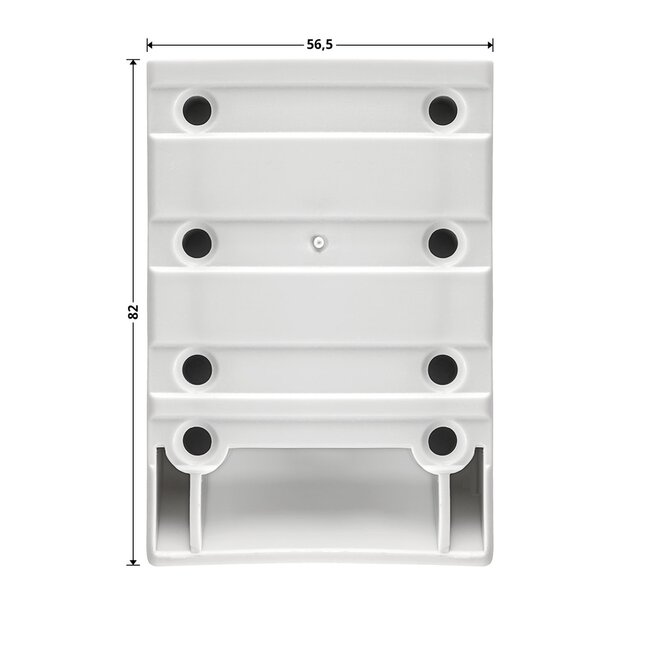

- 3 shims for roll holder and locking device

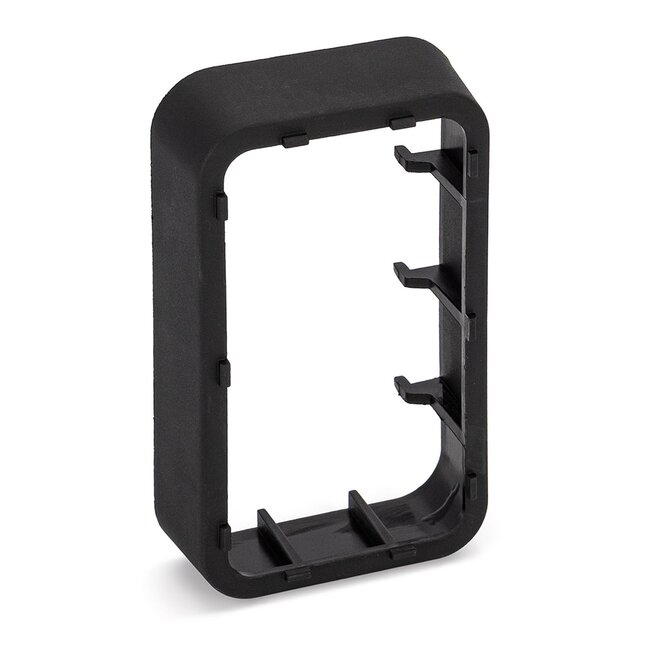

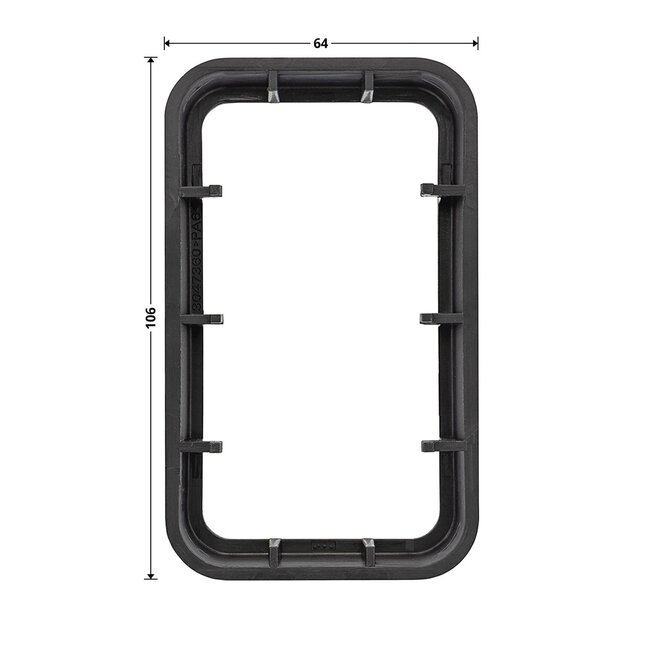

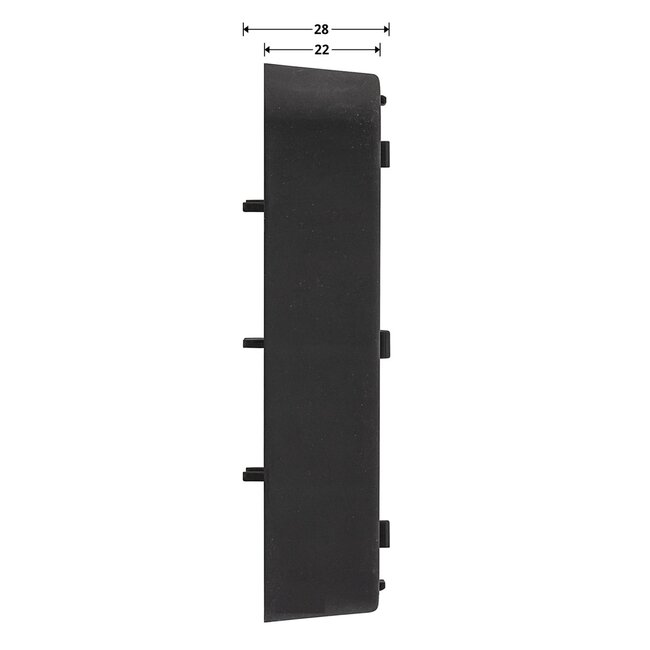

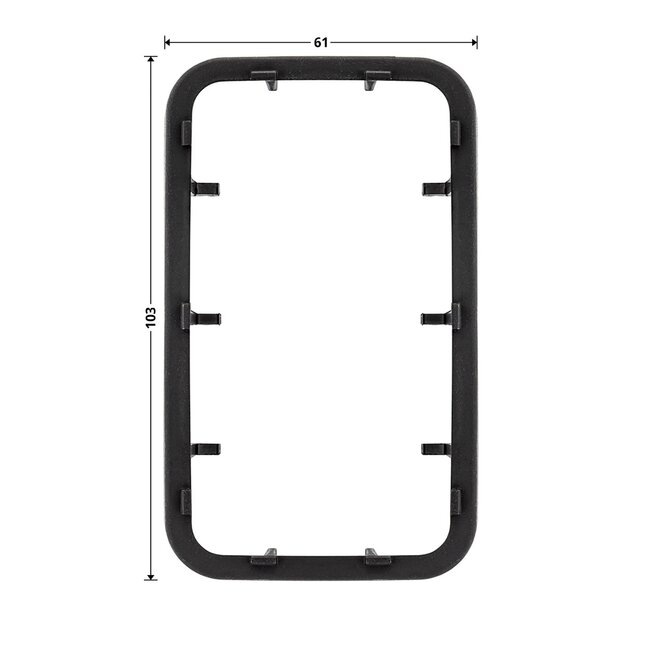

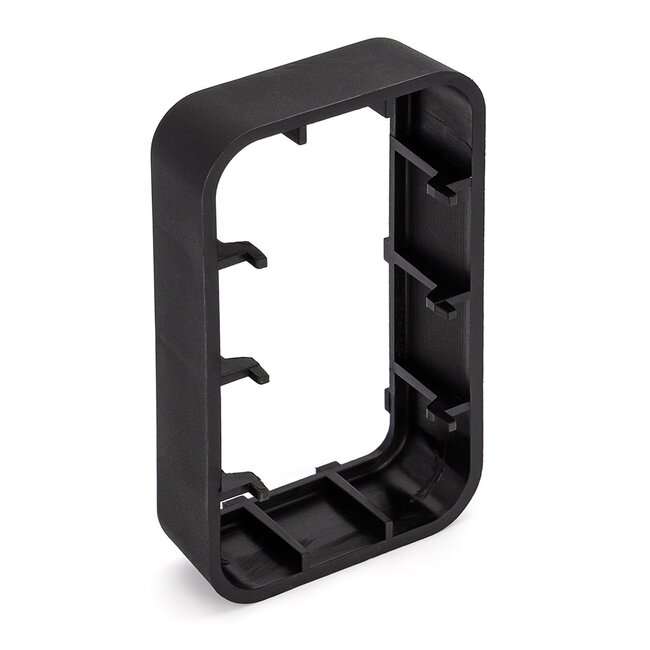

- surface-mounted frame 42/20
- suitable for Hörmann EPU 40 (42/20 mm panel)
Please note: Hörmann sectional doors EPU 40 have a fully foam-filled Slat of 42 mm in the upper and lower sections, with a middle section of 20 mm slat thickness.
