GFA GFA TS971, control with CEE plug and control buttons 5P-3~400V (DES/NES)

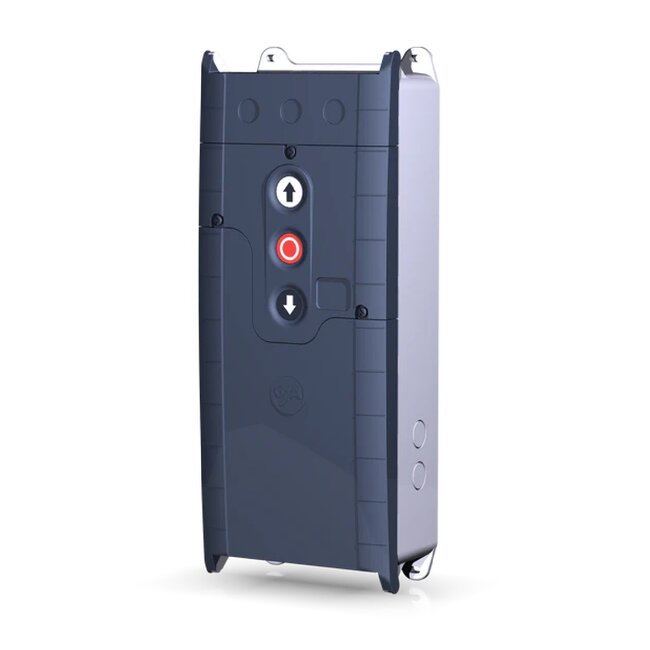

GFA TS971, control box with CEE plug

The GFA TS971 is an advanced microprocessor controller in a durable plastic housing, specially designed to control industrial door operators. This controller supports both pulse and deadman operation and has integrated up-stop-down functions.

Thanks to the supplied 5-pole, 16A CEE plug on a 0.7-metre cable, the TS971 is suitable for 3-phase motors with digital or mechanical limit switches. Setting parameters is easy via the clear menu, which is operated by a turn/push system and a clear display.

The TS971 has a built-in radio receiver (433 MHz) and is prepared for wireless underrun protection (type WSD), further enhancing safety and flexibility.

- supply voltage 3 phase 400 V
- mains frequency 50/60 Hz
- power supply components 24 VDC, 230 VAC
- Motor power supply 3 phase 400 VAC
- maximum motor power 3 kW
- limit switch type NES / DES
- 2 potential-free outputs
- dimensions 155 x 386 x 90 mm
- IP class IP54
- mains cable length 700 mm
- plug type 5-pin 16A CEE
- radio frequency 433 MHz
- temperature range -10 °C to +50 °C

The TS971 combines ease of use, safety and flexibility, making it an excellent choice for industrial applications.
