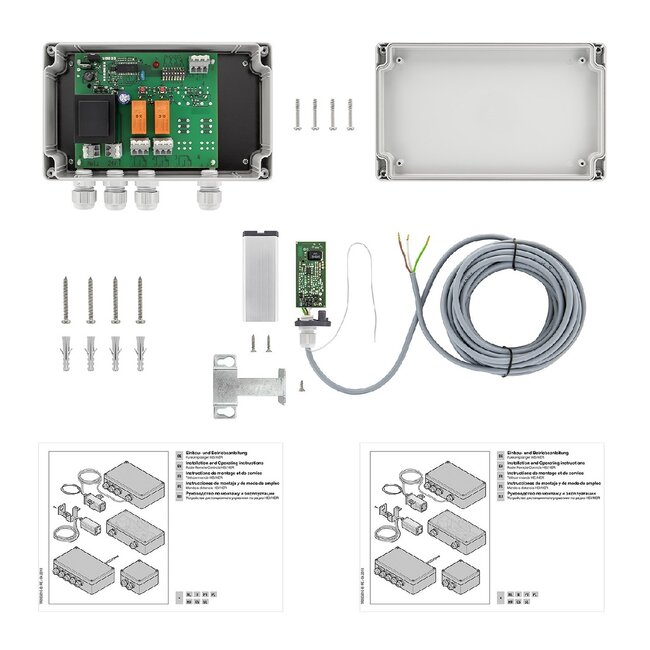

Hörmann HER 2, BiSecur 2-channel receiver

Hörmann HER 2, BiSecur 2-channel receiver

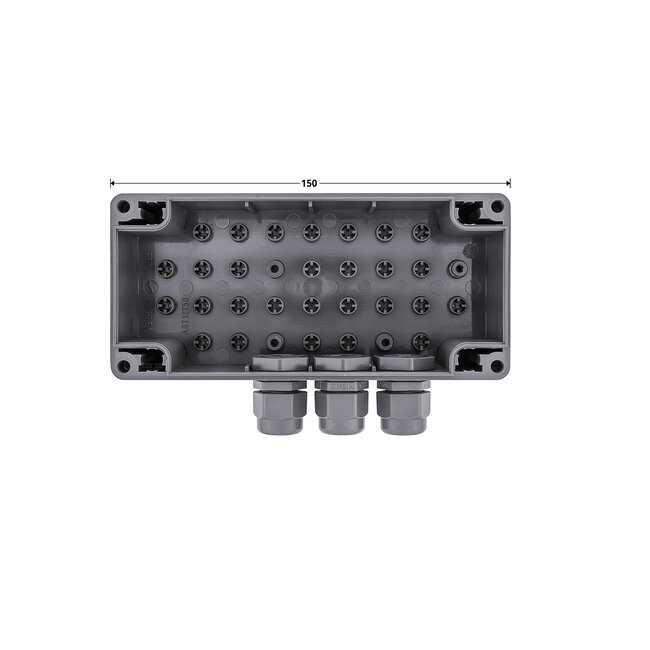

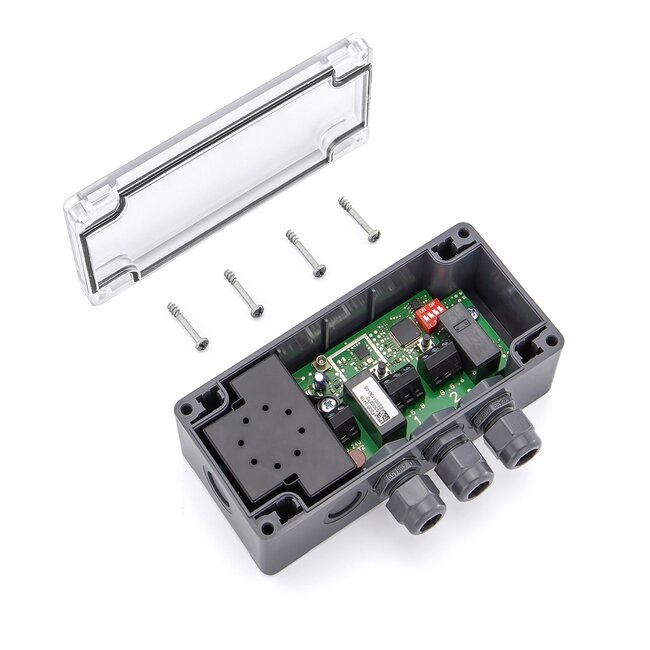

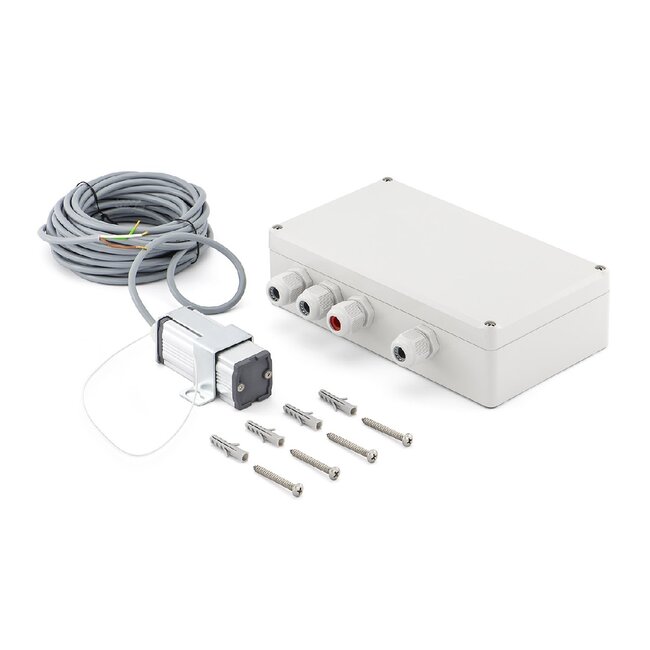

The 2-channel potential-free Hörmann HER 2 receiver, 868 MHz BiSecur (868-BS) can be used as a receiver to control, for example, a third-party garage door operator, an electric door opener, lighting or other electrical devices. The receiver is housed in an IP65-rated enclosure. This makes the HER 2 868-BS ideal for outdoor use.

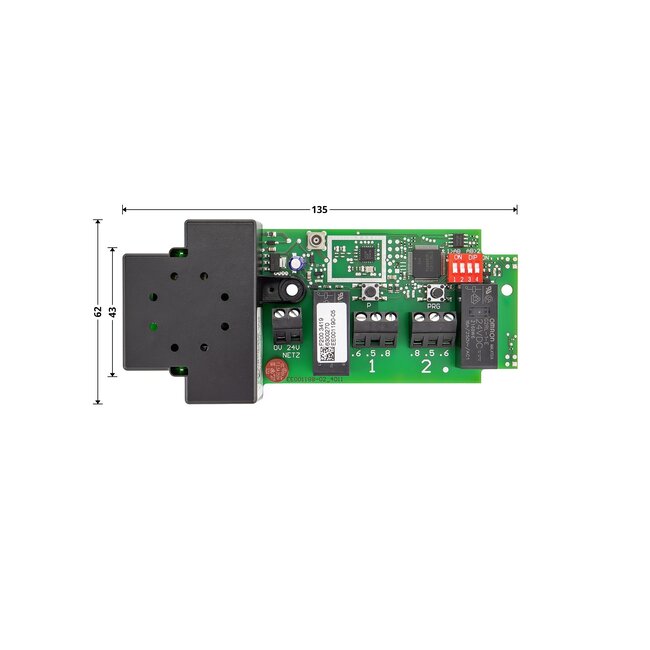

The receiver has two relay outputs that can be switched independently of one another. Using the 4-position DIP switch, the following functions can be set for each relay output.

Functions on relay output 1 (channel 1) of the BiSecur HER 2 receiver:
1. 0.5-second pulse: the relay switches on and drops out after 0.5 seconds, for controlling, for example, a garage door opener.
2. On/off switching: the relay switches on at the first transmission pulse and switches off at the next pulse, for switching electrical loads such as lighting on and off.
3. 3 minutes: upon receiving a transmission pulse, the relay energises for a period of 3 minutes.
4. Adjustable pulse: the relay energises when, during the set time,

Functions on relay output 2 (channel 2) of the BiSecur receiver HER 2:
1. 0.5-second pulse: the relay switches on and de-energises after 0.5 seconds, for controlling, for example, a garage door opener.
2. On/off switching: the relay switches on at the first transmission pulse and switches off at the next pulse, for switching electrical loads such as lighting on and off.
3. 3 minutes: upon receiving a transmission pulse, the relay energises for a period of 3 minutes.
4. 3-second pulse: the relay switches on and de-energises after 0.5 seconds, for controlling, for example, an electric door opener

Technical specifications
- frequency 868.3 MHz
- Protocol: BiSecur
- protection rating: IP65
- plastic housing
- 2 potential-free relay outputs
- power supply: 24 V DC or 230–240 V AC
- switching capacity: 30 V DC / 2.5 A or 250 V AC / 500 W

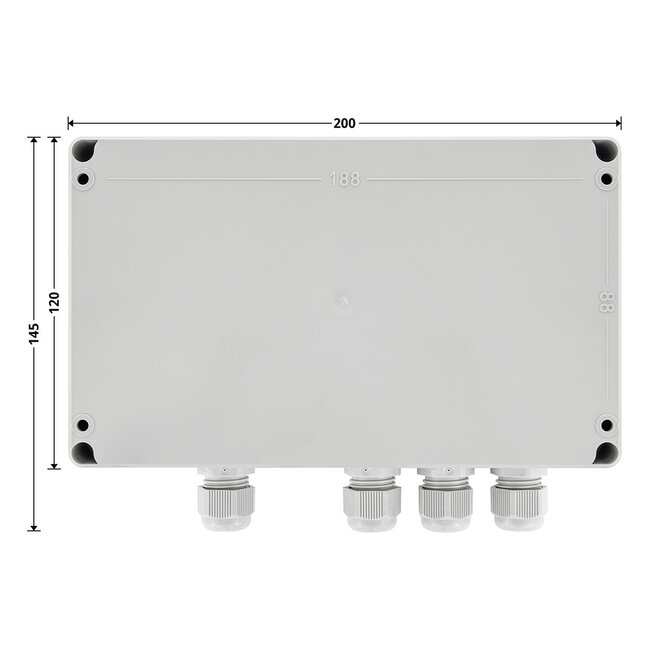

- Dimensions: 200 x 120 x 58 (WxHxD)

Download the user manual for the Hörmann HER 2, BiSecur 2-channel universal receiver here
