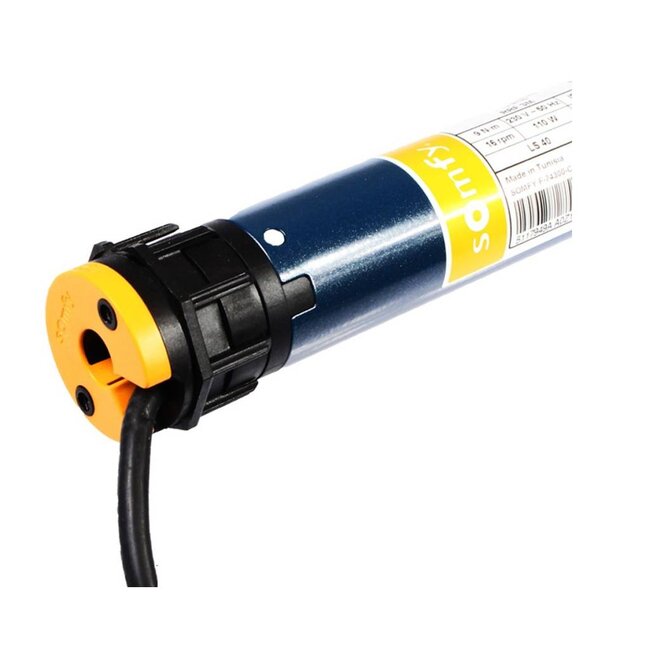

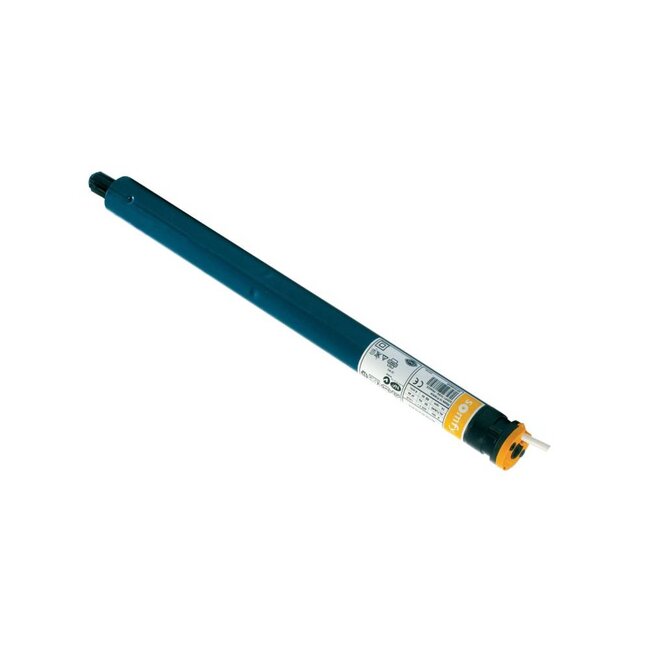

Somfy LS40 tubular motor / roller shutter motor

Somfy LS40 tubular motor for sun blinds and Roller shutters

- Supplied without motor support and adapter set

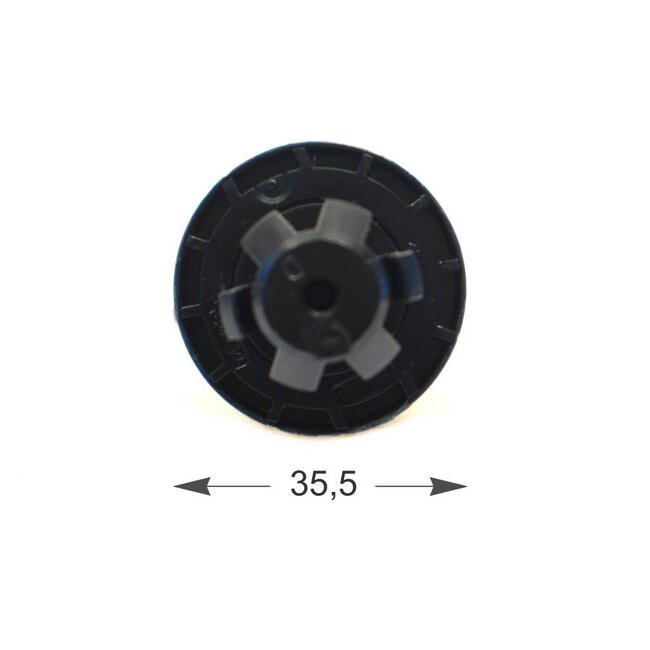

- Fits into a tube with a minimum inner diameter of 37 mm.
- Double insulated according to class II and therefore not equipped with an earth wire.
- Final adjustment capacity: 40 revolutions.
- Supplied as standard with a white 3-wire (VVF), length 3 m. ◦ The Aries S 4/14 has a cord length of 2.5 m.
- Mars version only also with moulded-on working plug (Stas) and locking left-hand clamp (Stasi)
- Applicable with Somfy wired controllers.

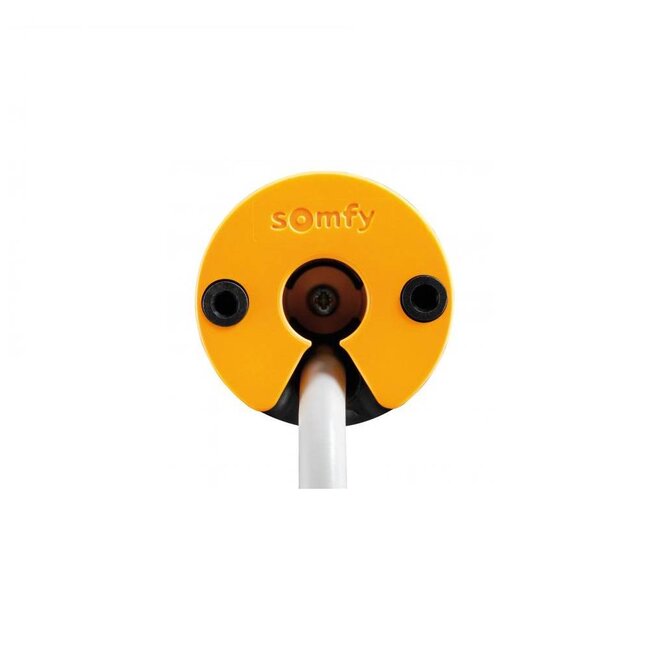

- Round motor head.
- Axial and radial cord outlet.
- Not suitable for continuous use.

Type Somfy LS40 motors

- LS40 3/30 - 3 Nm - 30 rpm - length 485 mm - Mercure
- LS40 S 4/16 - 4 Nm - 16 RPM - length 414 mm - Aries
- LS40 9/16 - 9 Nm - 16 RPM - length 485 mm - Mars
- LS40 13/10 - 13 Nm - 10 RPM - length 485 mm - Vulcan
