Article number
6267
SKU
CDR45101700

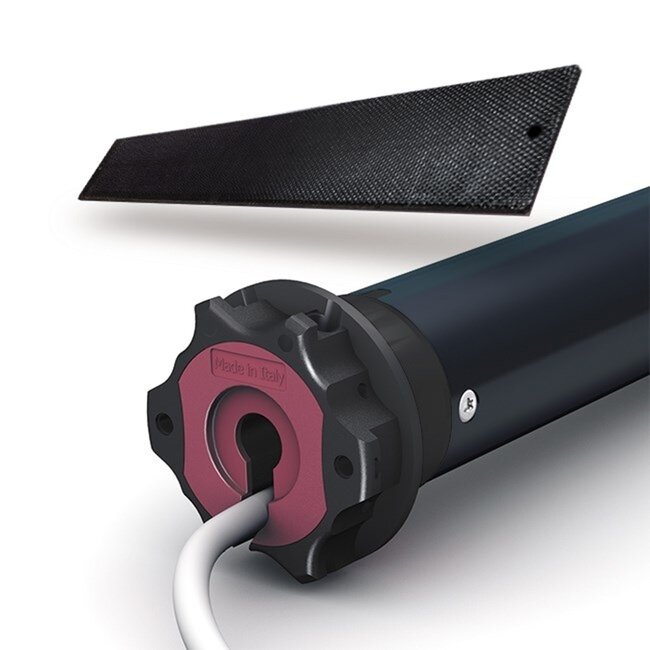

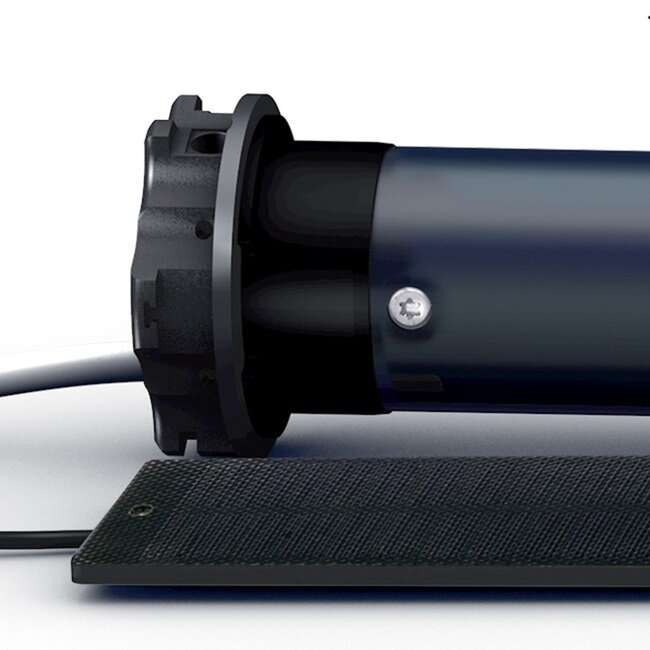

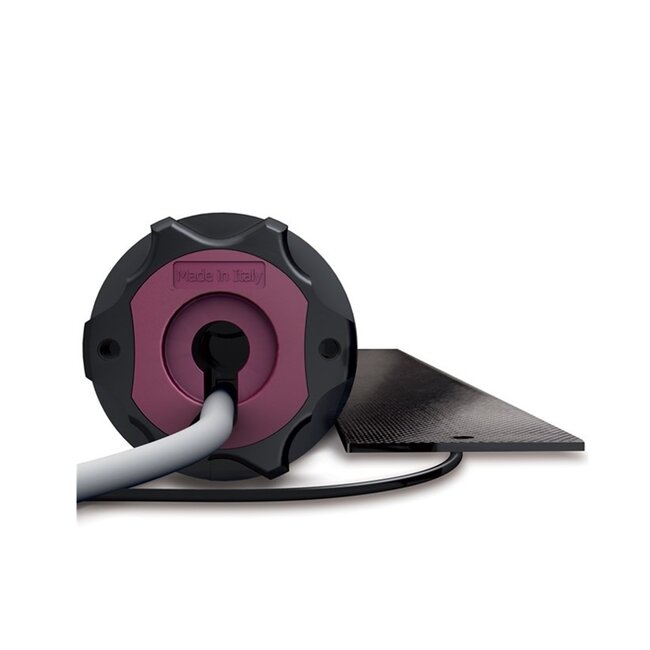

Roller shutter motor with Solar panel and Li-Ion battery, remote control, electronic final adjustment, to easily convert your roller shutter to solar operation Read more.

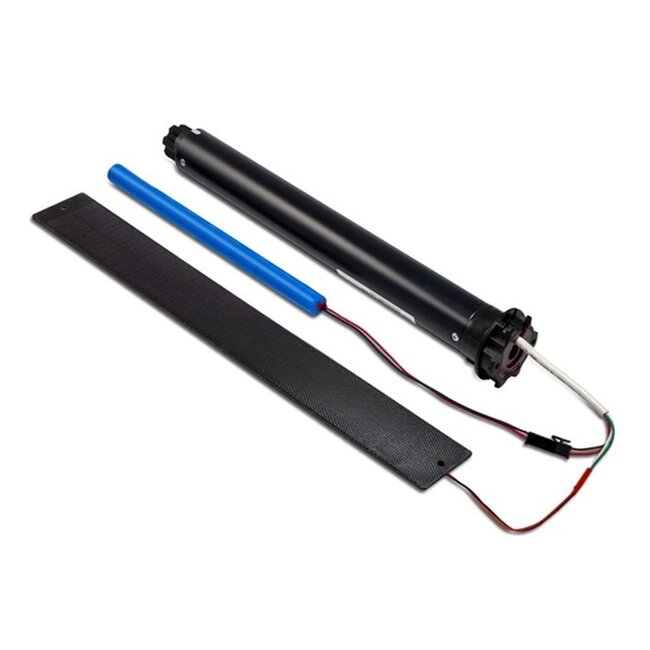

This set consists of:

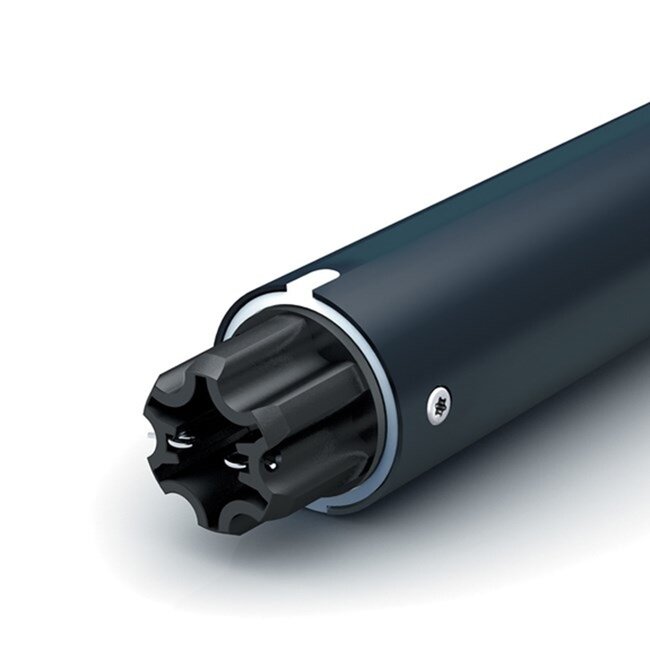

- tubular motor
- force 10 Nm
- speed 17 rpm
- equipped with an integrated receiver

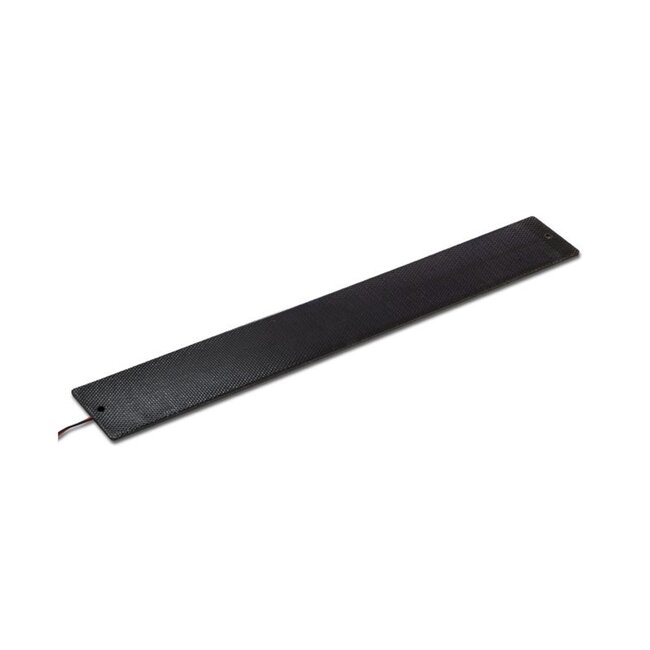

- solar panel
- dimensions 470x60x4.5 mm (lxwxh)
- weight: approx. 210 g
- power: 5 W
- Li-Ion battery
- energy: 50.4 Wh
- capacity: 3500 mAh
- nominal cell voltage: 3.6 V
- cable length is 220 mm
- Molex Minifit connector
- standby time ± 45 days
- battery size Ø 19 mm, length 265 mm
This advanced solar roller shutter motor combines ease of use, quiet operation and maximum reliability in one powerful solution. Thanks to the integrated radio and electronic final adjustment, you easily and accurately set the end positions via remote control, without the hassle of mechanical adjustments.
The built-in encoder technology ensures that set positions are always precisely maintained. This means a perfectly closing and smoothly operating roller shutter, day after day.
The innovative spring brake gearbox ensures noticeably quieter and smoother roller shutter movement. Combined with the speed control at the end points, this results in a soft, controlled stop without loud bangs. Ideal for applications where comfort and noise level are important.
The high-quality ETFE-coated monocrystalline solar panel offers a longer lifetime than traditional panels. The system continues to function reliably in extreme conditions, from -40°C to +85°C.
The efficient DC motor combined with smart software ensures optimal energy consumption. Thanks to MPPT technology, maximum use is made of the solar panel, while the charging process is limited to 90% to extend battery life.
The integrated Battery Management System (BMS) protects against overcharging, deep discharge and short circuits. In addition, the intelligent electronics ensure a longer service life and more charging cycles.
Charging can be done entirely via solar power, but also via an external charger if needed. With just one hour of direct sunlight, the daily consumption is already compensated.
The Motor is equipped with a secure rolling code system, preventing unwanted control. Programming and control are easy and are confirmed by the Motor via small movements, so you always know that settings have been made correctly.
This solar roller shutter motor is the ideal choice for those looking for an energy-efficient, quiet and low-maintenance solution with maximum control and comfort.
