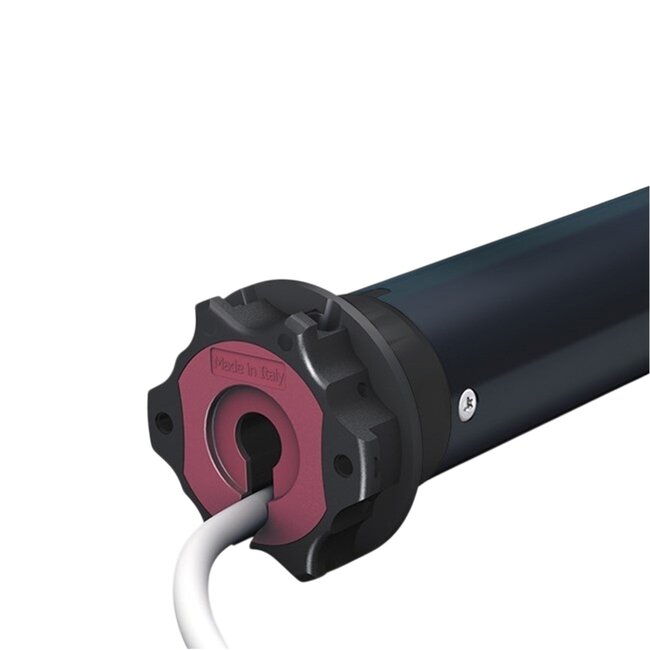

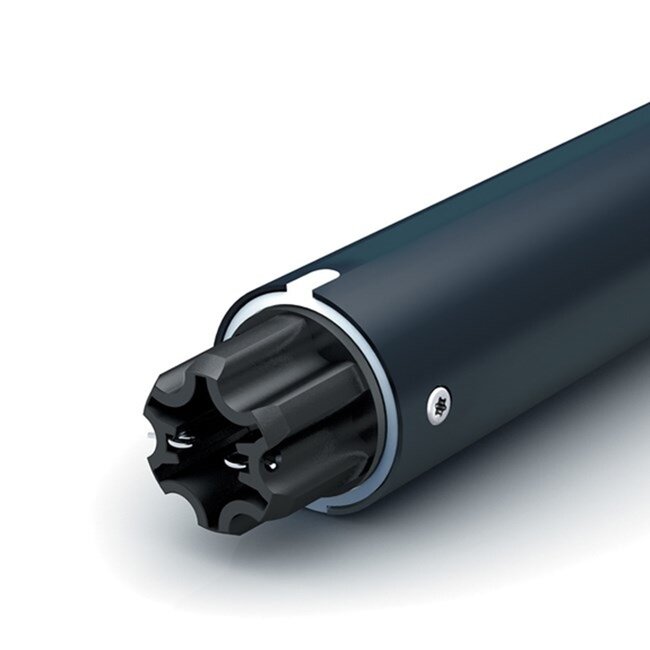

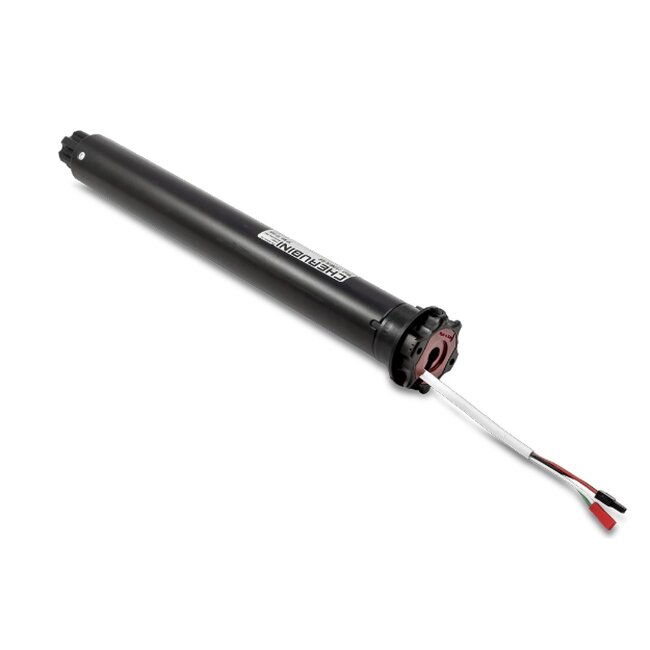

Cherubini Lumen S-RX tubular motor - supplied loose

Cherubini Lumen S-RX Solar tube motor

This advanced solar whisper-quiet roller shutter motor with remote control and electronic final adjustment, combines ease of use, quiet operation and maximum reliability in one powerful solution. Thanks to the integrated radio and electronic final adjustment, you easily and accurately set the end positions via remote control, without the hassle of mechanical adjustments.

- force 10 Nm
- speed 17 rpm
- equipped with an integrated receiver
- end position setting manually or semi-automatically
- frost protection and obstacle detection adjustable in 3 levels
- possibility of storing intermediate positions
- adjustment via handheld transmitter or wired switch
- quiet mootr through soft stop and soft start
- low-noise transmission with spring brake
- possibility of charging via an external battery charger
- MPPT technology for better utilisation of the solar cells
- charge limitation of up to 90% for battery life
- smart electronics in battery operation to increase the number of cycles

For a complete set, you also need a motor support, adapter set, handheld transmitter, solar panel and battery, see related articles
