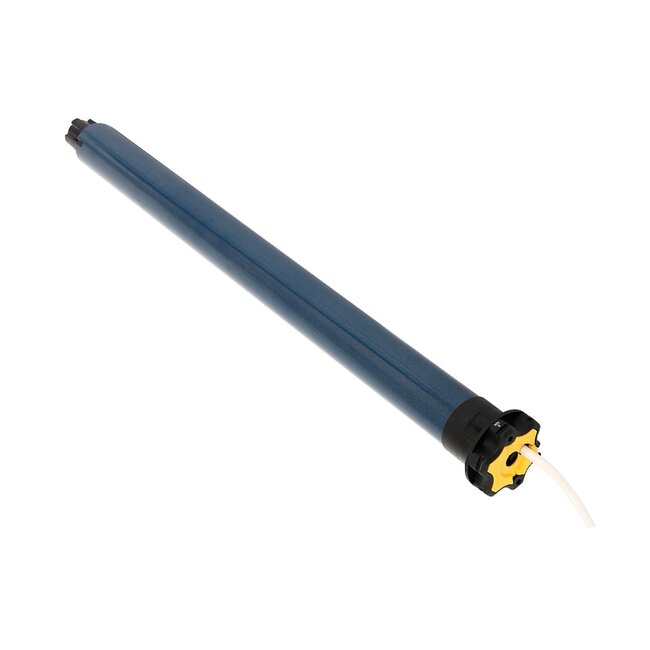

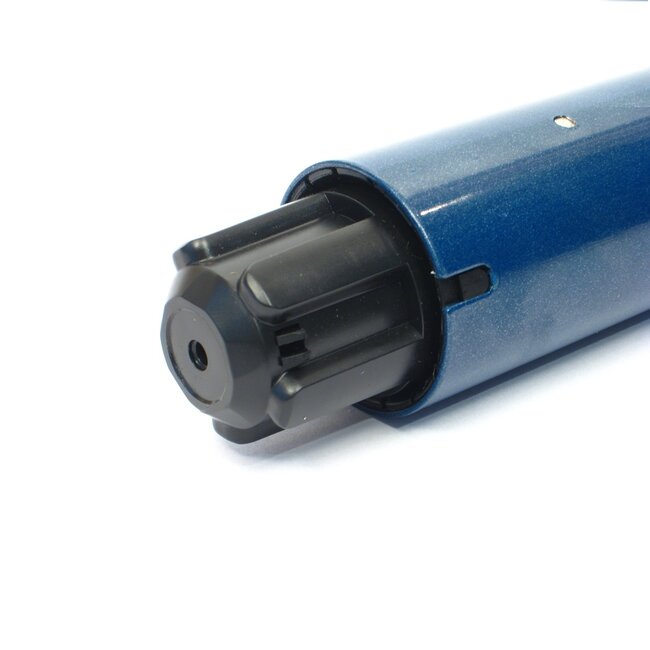

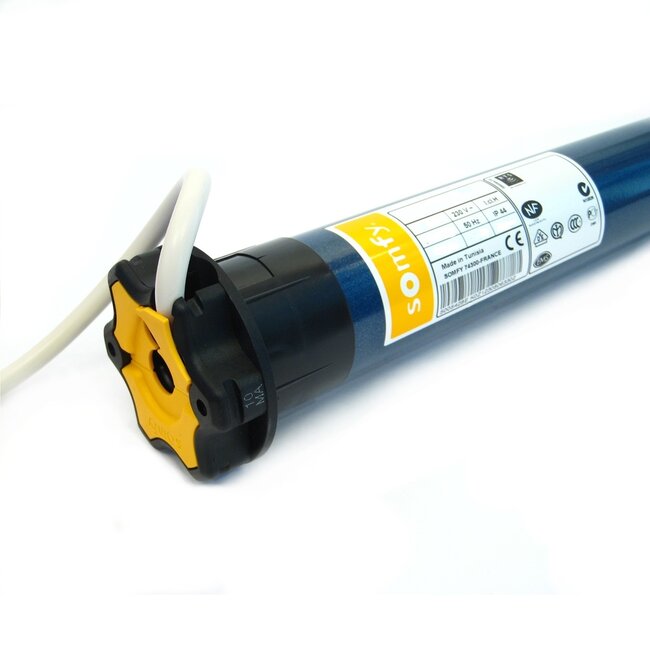

Somfy Maestria 50 WT tubular motor

Somfy Maestria 50 WT

Discover the innovative power of the Somfy Maestria 50 WT, a wired motor designed for screens. Tailored to the specific requirements of screens, this motor has electronic final adjustment, making it possible to connect multiple motors in parallel when individual control is not necessary.

Available in 6 Nm to 35 Nm variants, the Somfy Maestria 50 WT offers the perfect level of power and performance for various applications. Choose this motor and experience the ultimate synergy between technology and design, powering your screens effortlessly and stylishly.

- Supplied without motor support and adapter kit

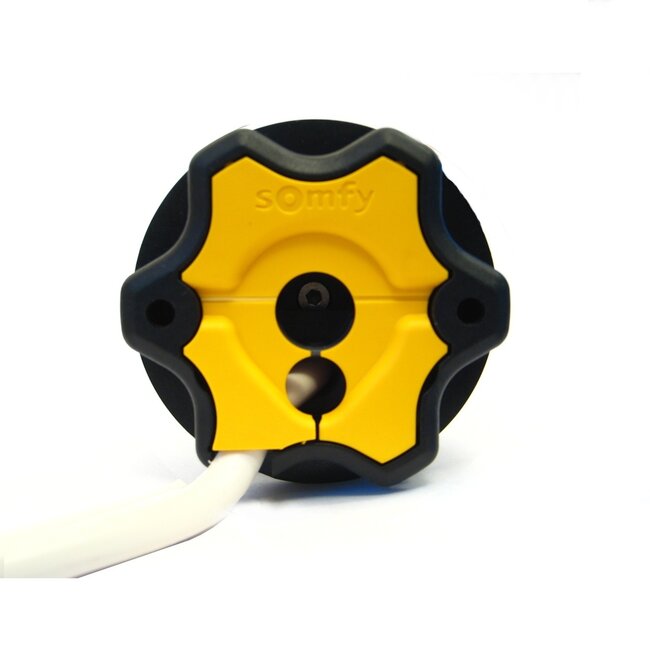

- with starhead Somfy motor head
- speed 17 rpm
- power supply 230 V/50 Hz
- available in 6 and 35 Nm
- perfect motor for windproof screens with a sufficiently heavy slat
- adjustment without access to the motor head, using Somfy universal adjustment cable
- adjustment of the end points can be blocked to prevent unauthorised adjustment
- parallel connection of different motors possible, max. 3 motors

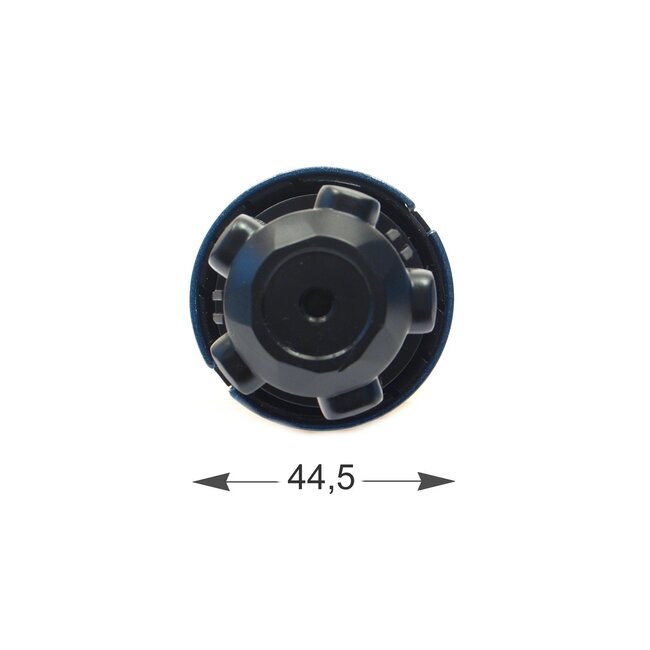

- series Maestria 50 fits into a tube with a minimum inner diameter of 47 mm
- end-point adjustment capacity: 250 revolutions (Maestria 50 WT)
- running time limited to 4 minutes
- not suitable for continuous use
- supplied as standard with a white 4-wire (VVF) cable, length 3 metres
- removable cable, makes installation easier

Type Somfy Maestria 50 WT tubular motors
- Somfy Maestria 50 WT 6/17 - 10 Nm - 17 rpm - length 653 mm
- Somfy Maestria 50 WT 10/17 - 10 Nm - 17 rpm - length 563 mm
- Somfy Maestria 50 WT 15/17 - 15 Nm - 17 rpm - length 613 mm
- Somfy Maestria 50 WT 25/17 - 25 Nm - 17 rpm - length 613 mm
- Somfy Maestria 50 WT 35/17 - 35 Nm - 17 rpm - length 663 mm
