Elero MonoSon-868 Mini handheld transmitter

Elero MonoSon-868 Mini Handheld transmitter

The elero MonoSon-868 Mini is a compact but powerful 1-channel handheld transmitter that allows you to effortlessly control your vision and sun blinds. Whether for individual, group or central control - this remote control offers both manual and automatic control.

Thanks to advanced bi-directional radio technology, reliable signal reception and processing is guaranteed. The built-in routing function also ensures safe and stable signal transmission, even in more complex installations.

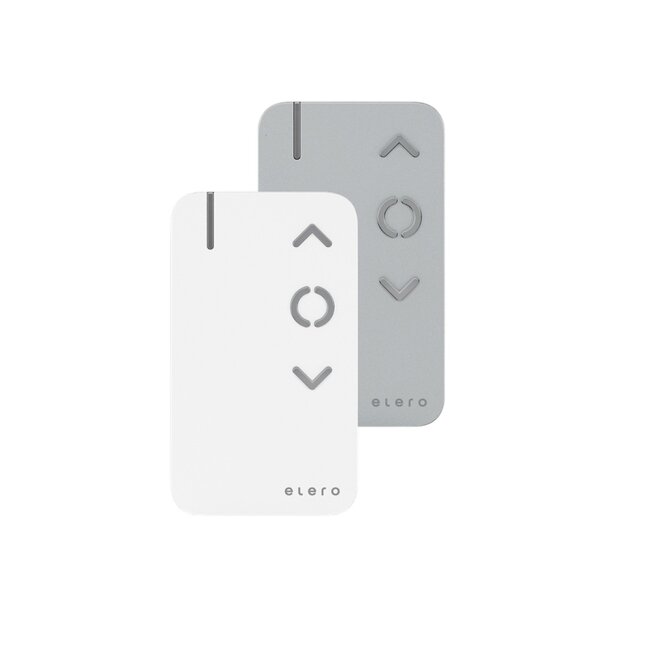

You can choose between two stylish finishes - classic white or elegant silver - so the Transmitter fits perfectly into any interior. Large, raised buttons and a convenient slider make control simple and convenient.

The MonoSon-868 Mini is the solution for those who want to combine functionality, reliability and design in one compact handheld transmitter.

- 1-channel bi-directional transmitter
- frequency 868 MHz
- transmission power 500 mW - 10 dBm
- protection category IP20
- dimensions 71x40x10 mm
- weight 27 grammes
- including CR2450 battery

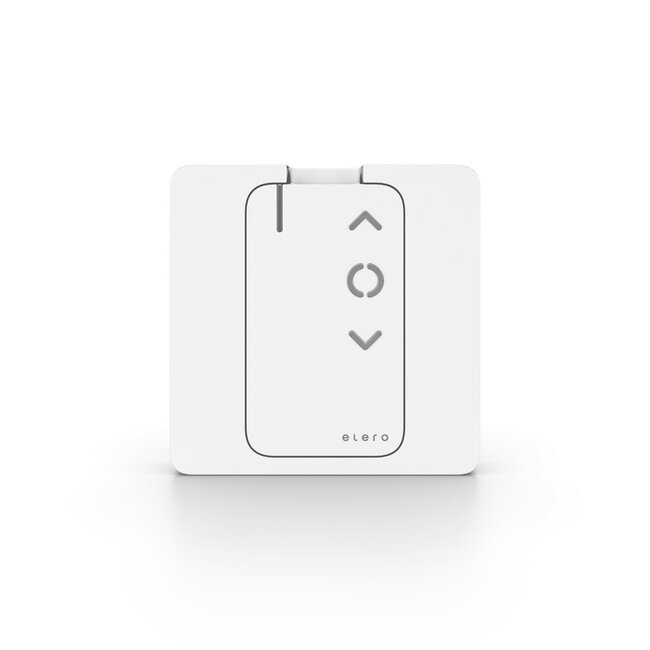

- delivered including wall mount

Download here the manual of the Elero MonoSon-868 mini handheld transmitter

Register additional handheld transmitter

(up to 16 transmitters can be stored in the memory of the tubular motor)

Option 1, using an already functioning transmitter
Simultaneously press - on the old transmitter - the UP, DOWN and P-buttons for min. 3 seconds
--> Motor runs up and down for 2 minutes
After the up movement has started, press the UP button
--> Motor stops and goes up again
Press the DOWN button after starting the downward movement
--> Motor stops and Transmitter is registered

Option 2, without old transmitter register new transmitter.
1. switch the mains voltage of the respective tube motor off and on again
--> the receiver in the drive is open for 5 minutes
2. Press the P button on the transmitter
--> Motor runs up and down for 2 minutes
3. after the up movement has started, press the UP button
--> Motor stops and goes up again
4. after starting the downward movement, press the DOWN button
--> Motor stops and Transmitter is registered
