Cherubini Ocean RX Ø 45 tubular motor with receiver and NHB

Cherubini Ocean RX Ø 45 tubular motor with receiver and NHB

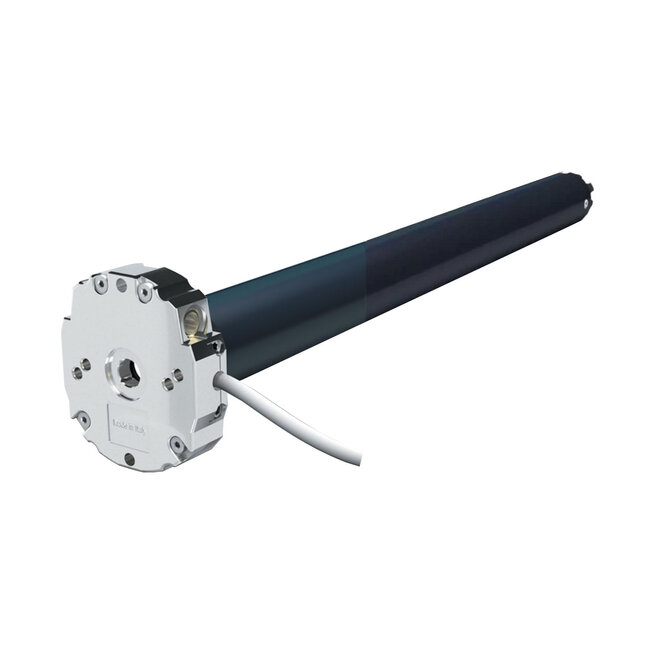

The Cherubini Ocean RX is a tubular motor with electronic limit adjustment, a built-in radio receiver and emergency manual control. The motor is suitable for roller shutters and awnings and fits into tubes with a minimum internal diameter of 50 mm. Available in 32, 40 and 50 Nm versions. The rotation speed varies depending on the version; please refer to the table below.

Thanks to the integrated emergency manual control, you can operate the Roller shutter or awning even during a power cut. The set end positions are retained in this case. The gear ratio of the emergency manual control is 1:24.

- Supplied excluding motor support and adaptation kit
- tubular motor 230 V/50 Hz
- available in 32, 40 and 50 Nm
- Obstacle detection during both upward and downward movement

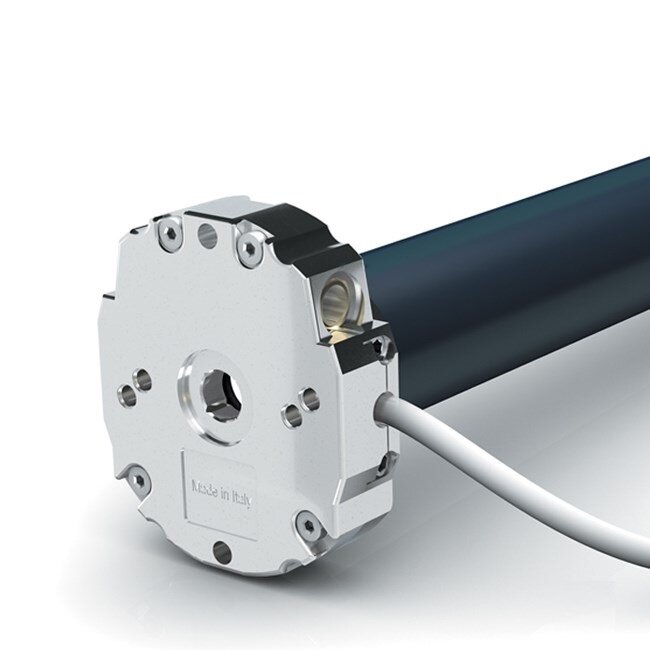

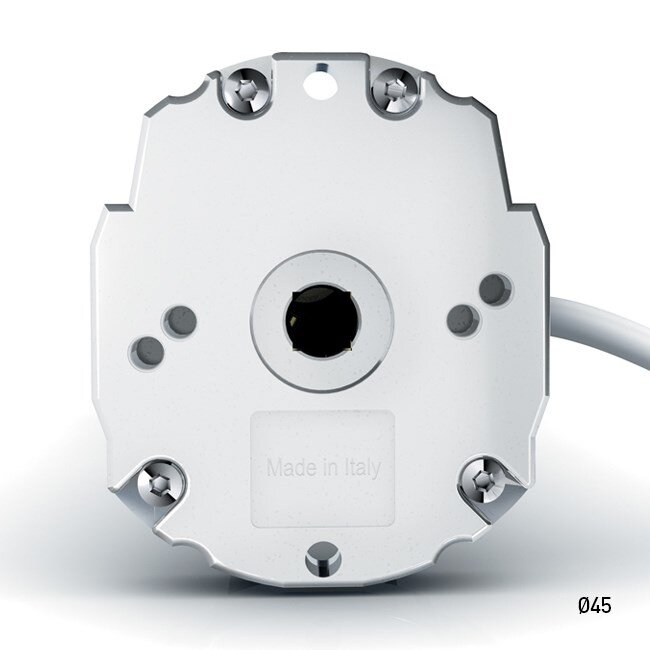

- Direct mounting of the metal motor head is possible, without a special motor support
- Suitable for roller shutters, roller doors and awnings
- simple, electronic adjustment of the end positions
- Suitable for emergency manual control with a 6 mm square or 7 mm hexagonal eye
- Emergency manual operation gear ratio 1:24

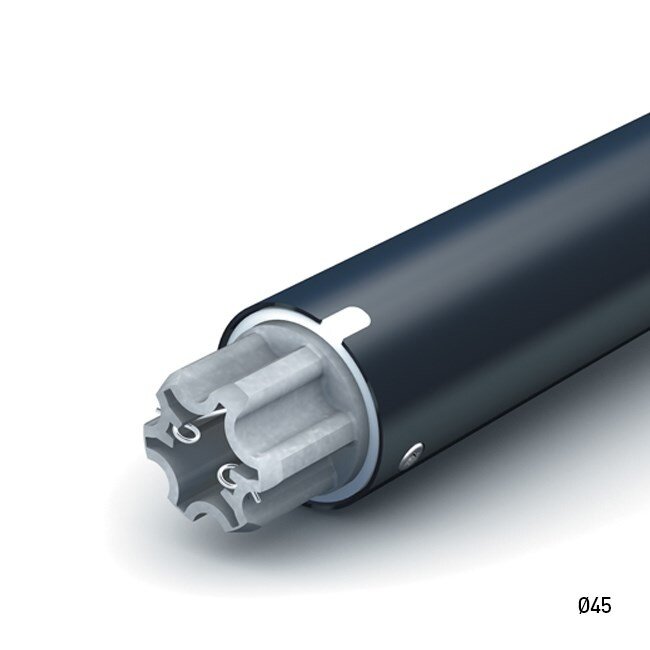

- The Cherubini Ocean 45 mm fits into a tube with a minimum internal diameter of 50 mm
- End-position adjustment range: 25 revolutions
- Supplied as standard with a white cord, 2.5 metres in length
- Not suitable for continuous use
- Can be operated via a Switch (optional)
- Wireless connection to WindTec, Mistral and Rugiada climate control systems

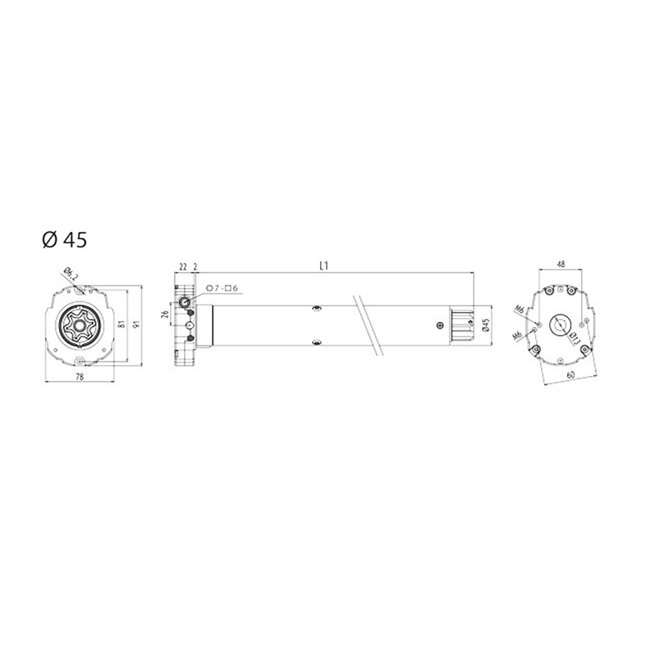

Cherubini Ocean RX type Ø 45 tubular motors
- Cherubini Ocean 32/17 – 32 Nm – 17 rpm – 250 watts – length 646 mm
- Cherubini Ocean 40/17 – 40 Nm – 17 rpm – 275 watts – length 646 mm
- Cherubini Ocean 50/12 - 50 Nm - 12 rpm - 275 watts - length 646 mm

Important notes: This tubular motor is interchangeable with the Faac TM2 45 M tubular motor.
If you are using this motor to replace a faulty Altron tubular motor, you must also order the corresponding adapter set and Handheld transmitter.
