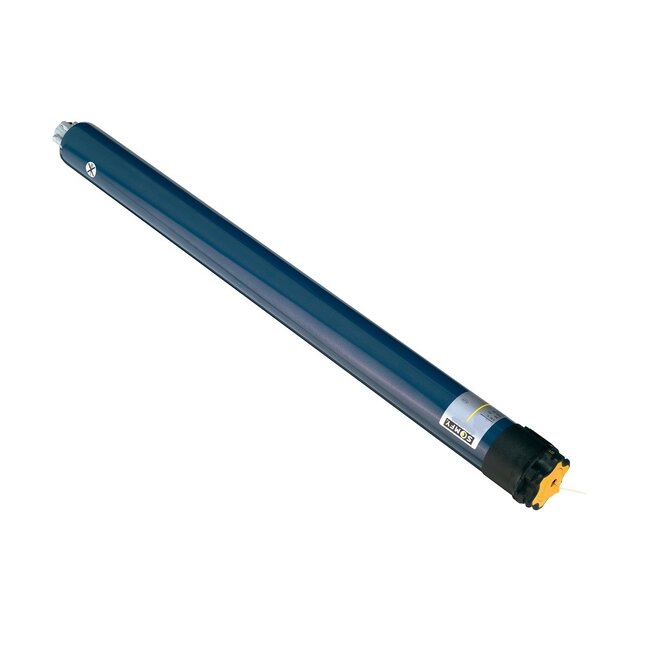

Somfy Orea 60 RTS awning motor

Somfy Orea 60 RTS tubular motor for sun blinds

Somfy Orea 60 RTS tubular motor with a power of 55 to 120 Nm and a speed of 12 or 17 rpm, a tubular motor for awnings with built-in RTS receiver with automatic corrections to the set upper end position and fabric stretch compensation so awnings always close perfectly.

- Supplied without motor support and adapter set
- power supply 230 V/50 Hz
- Tubular motor with built-in RTS receiver
- available in 55 Nm to 85 Nm with a speed of 17 rpm
- available in 100 Nm and 120 Nm with a speed of 12 rpm
- reception range 20 metres through 2 concrete walls
- automatic corrections to the set upper end position
- fabric stretch compensation so blinds always close perfectly
- suitable for wireless RTS sun and wind automatics
- quick and easy adjustment and operation with Somfy Situo RTS Handheld transmitter
- feedback during programming (by moving the end product)
- adjustable automatic intermediate position possible
- simple addition, relocation and removal of wireless RTS control points
- minimum cabling requirement with multiple end products
- not applicable with relay boxes, standard switches and standard controllers
- not suitable for continuous use and in combination with free-wheel systems (ABS)
- Orea RTS tubular motor can teach a maximum of 12 RTS control points
- the tubular motor can teach a maximum of 3 RTS Sensors
- final adjustment capacity is 200 revolutions
- operating time limited to 4 minutes
- supplied with a white 3-wire (VVF) cable, length 5 m, axial and radial cable outlet

Somfy Orea 60 RTS tube motor is available in the following versions
- Orea 60 RTS 55/17 - 55 Nm - 17 rpm - length 740 mm
- Orea 60 RTS 70/17 - 70 Nm - 17 rpm - length 740 mm
- Orea 60 RTS 85/17 - 85 Nm - 17 rpm - length 740 mm
- Orea 60 RTS 100/12 - 100 Nm - 12 rpm - length 740 mm
- Orea 60 RTS 120/12 - 120 Nm - 12 rpm - length 740 mm
