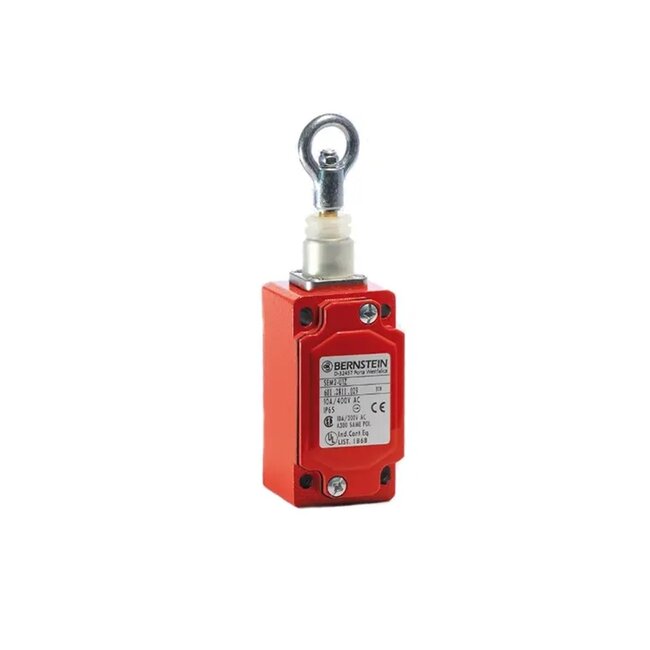

Bernstein Pull-wire switch SEK-U1Z

Bernstein SEK-U1Z pull-rope switch

- surface-mounted pull-rope switch
- thermoplastic glass-fibre reinforced housing
- mounting 4 x M5
- suitable for e.g. control of overhead door or high-speed door
- protection class IP65 splash-proof
- protection class II, fully insulated
- equipped with 1x changeover contact
- ambient air temperature -30 °C ... +80 °C
- Ue (operating voltage) 240 VAC
- Ui (rated insulation voltage) 400 VAC
- Ithe (conv. thermal current) 10 Ampere
- Utilisation category AC-15, Ue /Ie 240 V / 3 A
