Tedsen Receiver board EKXR2IRP920 - memory for 200 transmitters

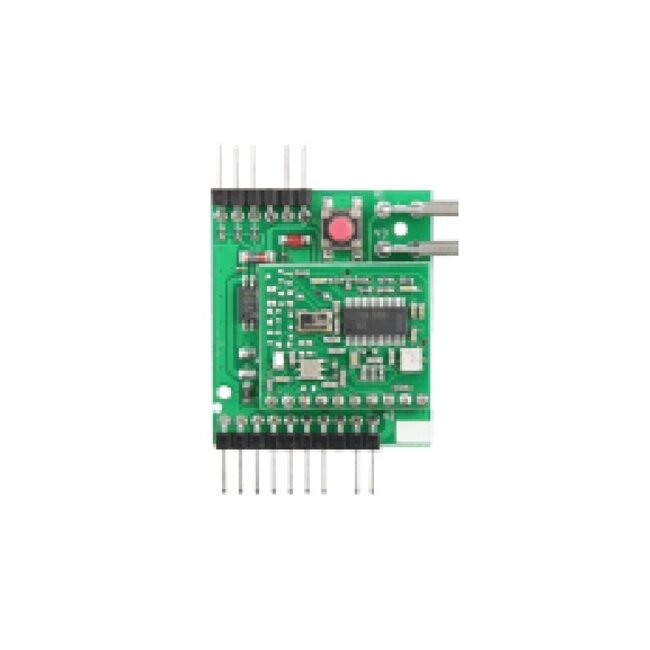

Tedsen receiver circuit board EKXR2IRP920

This receiver has been specially developed for use with Tedsen brand transmitters working with the IRP system.

This receiver only functions when the Tedsen IRP handheld transmitter is registered by us in the receiver with our IRP management system.

- 2 control outputs (Open Collector)
- virtual numbers on internal memory module ZM256IRP
- coding by means of KeeLoq® Hopping code method
- dimensions 53x34x9 mm (LxWxH)
- suitable for MO710AZ/RZ & MO713 controllers
- designed as plug-in PCB
- memory 200 transmitters (via memory module ZM256IRP)

Our IRP system is extra safe
- non-copiable handheld transmitters
- a rolling code system, Keeloq hopping code
- a unique factory serial number per handheld transmitter
- encrypted communication on 434 MHz

Full control via management software
- which transmitter is active
- which transmitters are deactivated
- history of lost and replaced transmitters
- programming of new/extra transmitters

No hassle if a transmitter is lost
- lost transmitters can be deactivated remotely
- no on-site reprogramming work
- new transmitters can be added immediately
- old transmitters can be reactivated later if found again
