Somfy Rigid connection OctoEasy

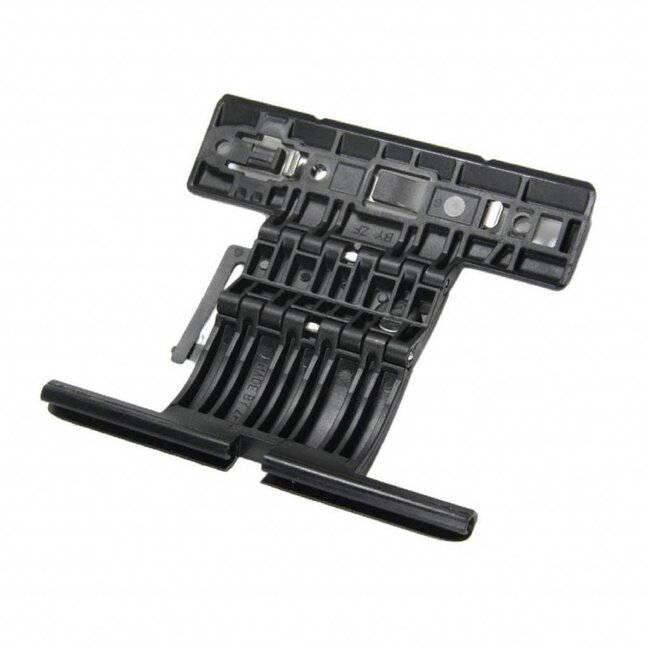

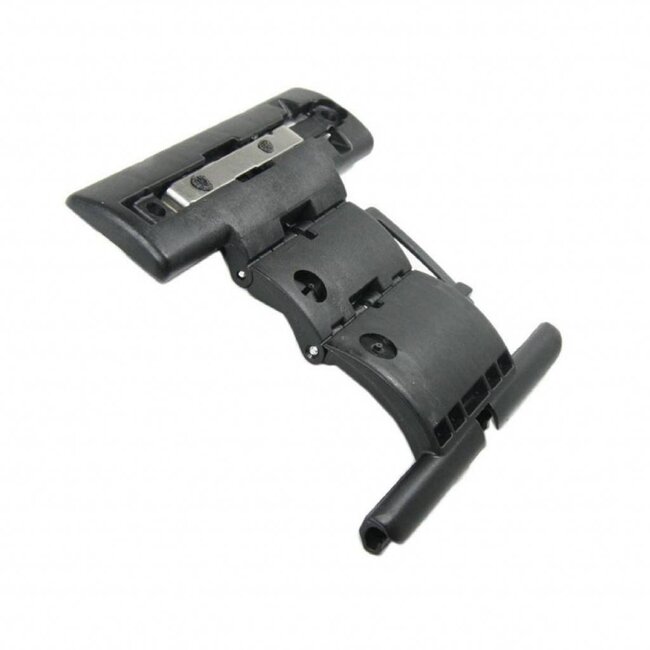

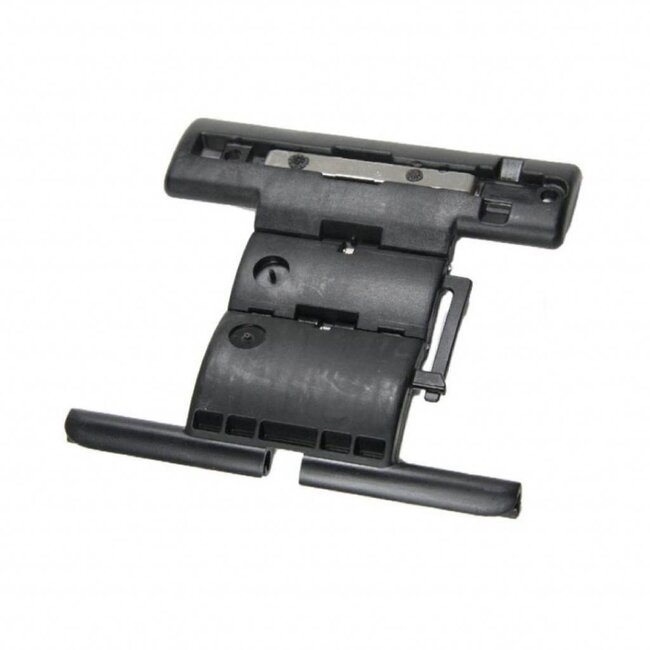

OctoEasy rigid connector

- New rigid joints suitable for Axle/Shafts 8k40, 8k50 and 8k60
- This rigid connection is also called suspension spring, insert spring, roller shutter holder, mini spring or safety spring
- Ensures automatic detection of obstacles and automatic detection of the
lower end point when used with shutter motors such as Somfy Ilmo, Somfy Oximo and Somfy RS100
- Works as an anti-lift security device for roller shutters
- You will need at least 2 of these rigid joints per roller shutter
- The maximum distance between the joints is 1250 mm
- Maximum weight of 10 kg per connection, for mini roller shutters ± 2.5 m2

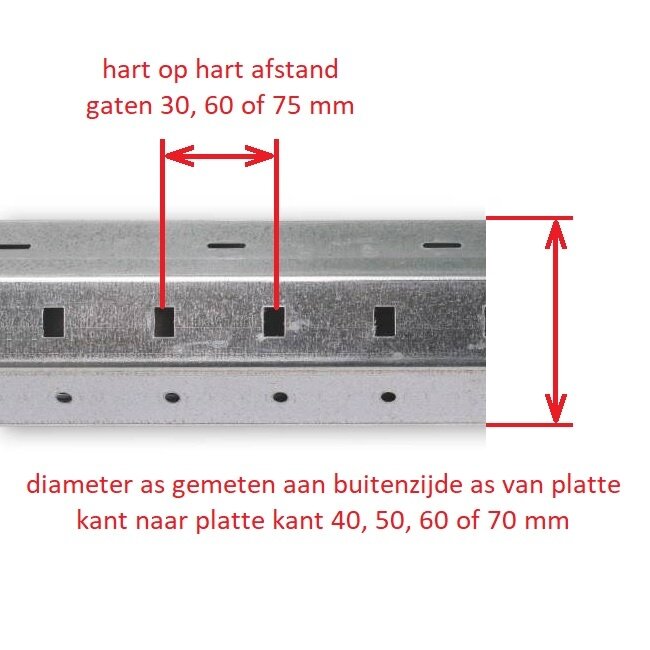

- Compatible with 3 types of Axle/Shaft
- Centre-to-centre distance 30 mm → 60 mm type
- Heart distance 60 mm → 60 mm type
- Heart distance 75 mm → 75 mm type

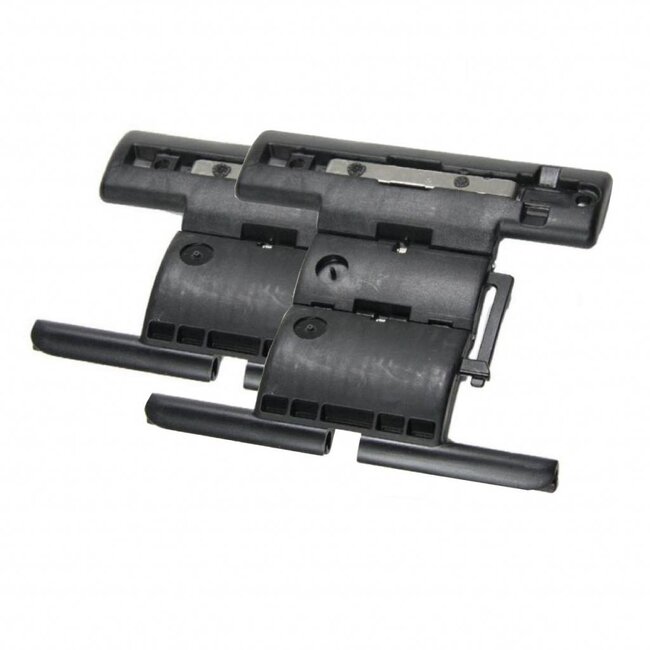

- Available 1-piece (case 150-165mm) or 2-piece (case 180-205mm)
- Break-in-retardant:
- OctoEasy was developed according to the EN 13659 standard
- Withstands a vertical compression force of up to 250 N
- The coiling diameter is smaller than in Lock to Play rigid joints and equal to or better than
Selve's Secublock rigid connections
- Quick assembly without tools, in the "square holes" of your roller shutter.
- Replaces Lock to Play rigid joints
