Article number
6069

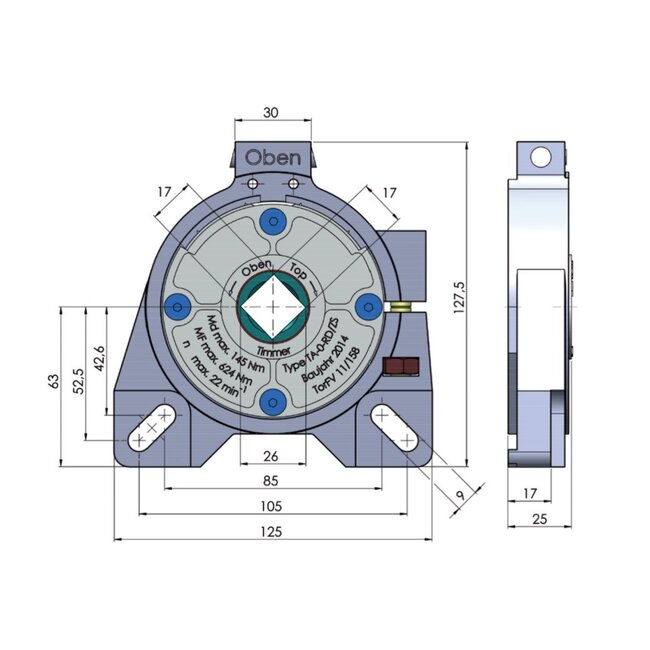

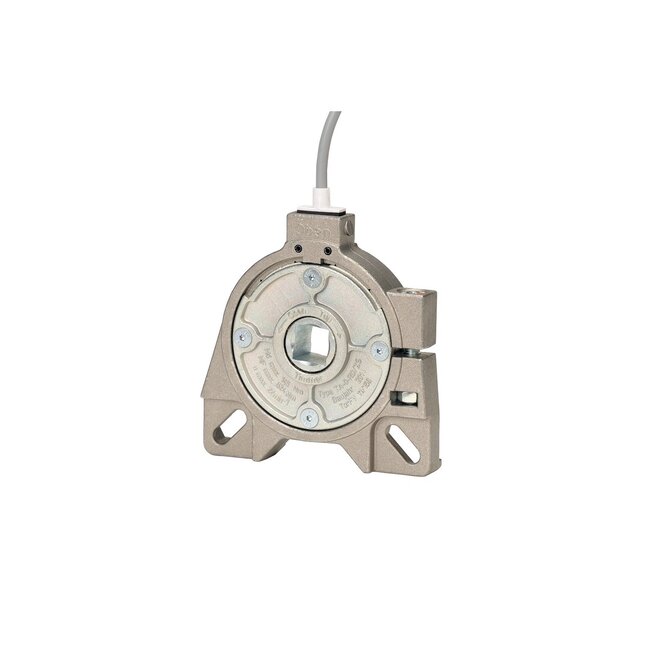

Roller protection/valve bearing Timer TA-0-RD/ZS, torque 145 Nm, torque (rpm) 22 rpm, shaft diameter 18x18 mm Read more.
A roller protection works like a standard bearing and is placed on the opposite side of the roller shutter shaft where the tube motor sits. Should something go wrong with the tube motor, e.g. a defect, the Roller shutter could roll down uncontrollably. The roll-off safety device prevents this by intervening and blocking the Axle/Shaft, bringing the Roller shutter to a safe stop.
- torque 145 Nm
- blocking torque 624 Nm
- torque (rpm) 22 rpm
- shaft diameter 18x18 mm (hole ± 18.5x18.5)
- fixing hole spacing 100 mm
- weight 1 kg
