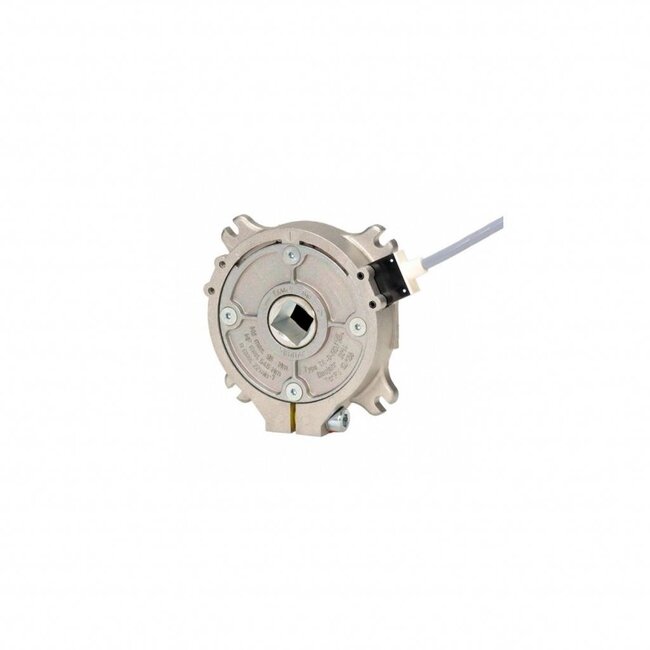

Timmer Roller protection/trap bearing TA-0-RD XS

Timer roll-down protection TA-0-RD XS

A roll-off protection functions like a normal bearing, on the other side of the roller shutter shaft than where the tube motor is mounted. If something in or on the tube motor fails, the Roller shutter will unwind at high speed, the roll-off protection intervenes and will block the Axle/Shaft, bringing the Roller shutter to a stop.

- also called TA-0-RD/X6
- torque 147 Nm
- blocking torque 812 Nm
- torque (rpm) 22 rpm
- suitable for square Axle/Shaft 18x18 mm (hole ± 18.5x18.5)
- an adapter sleeve 13x13 is supplied

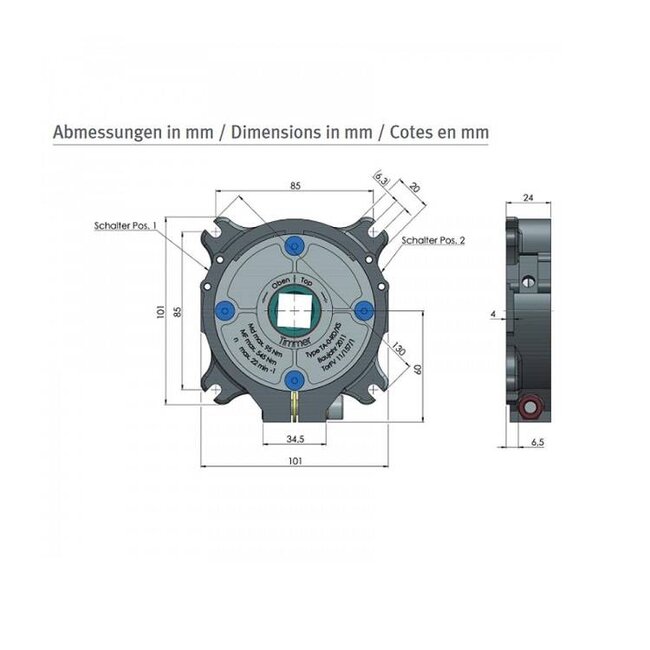

- fixing hole spacing 85 mm
- weight 1 kg
