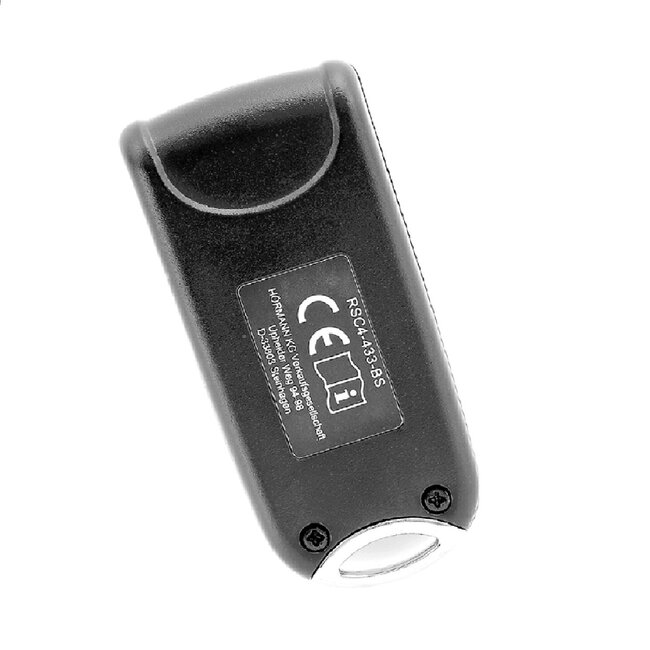

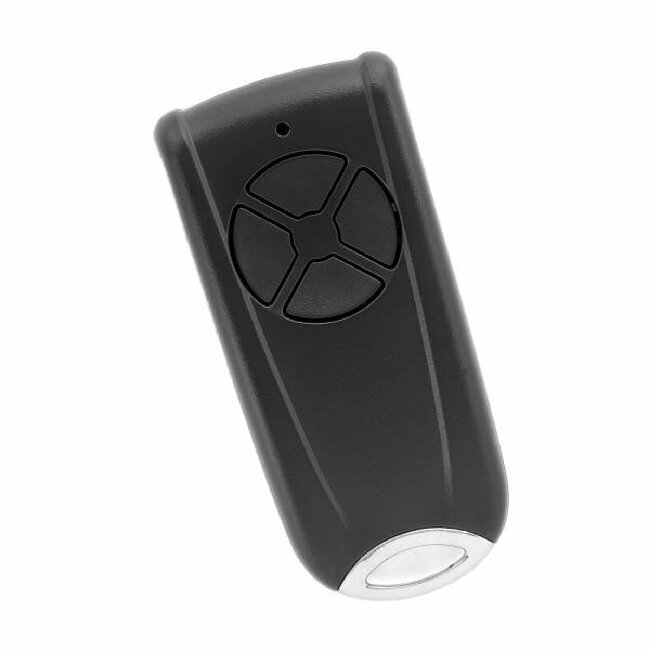

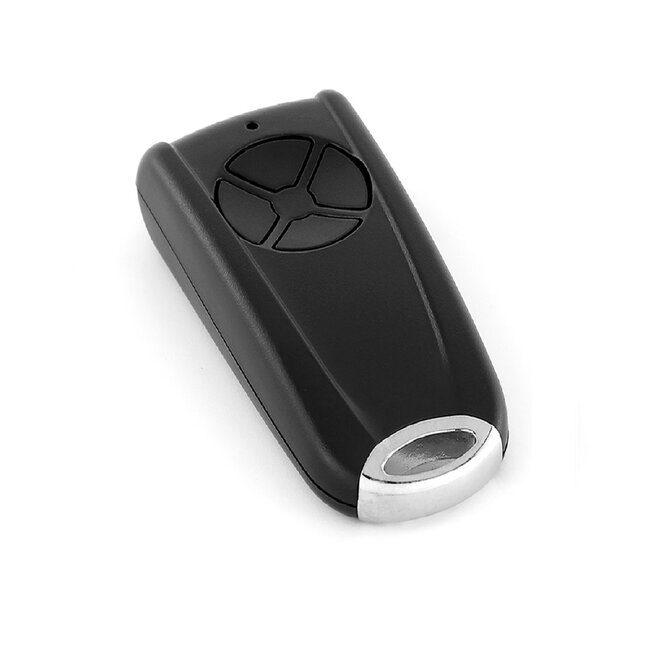

Hörmann RSC4 - 433 EcoStar handheld transmitter

Hormann EcoStar RSC4 handheld transmitter

- frequency 433.92 MHz
- suitable for all Hörmann EcoStar operators with frequency 433 MHz
- dimensions 30x65x14 mm (wxhxd)
- 4 channels (4 buttons) for 4 different functions
- housing and push buttons in black

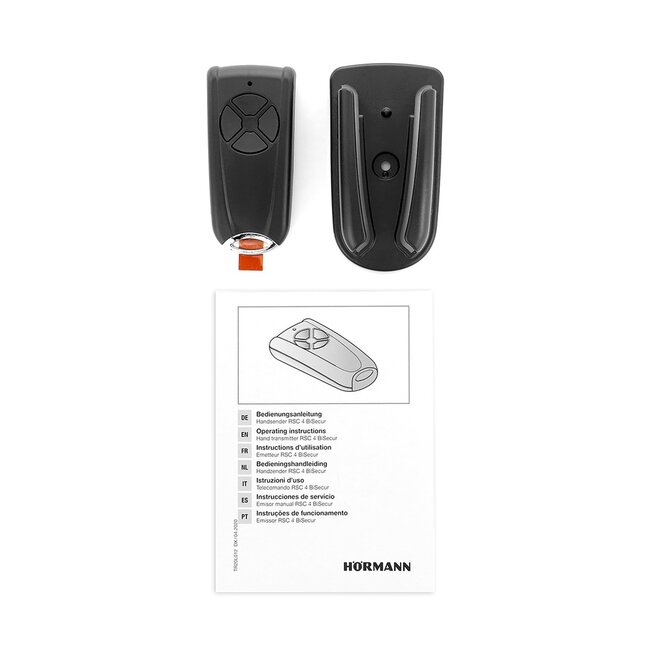

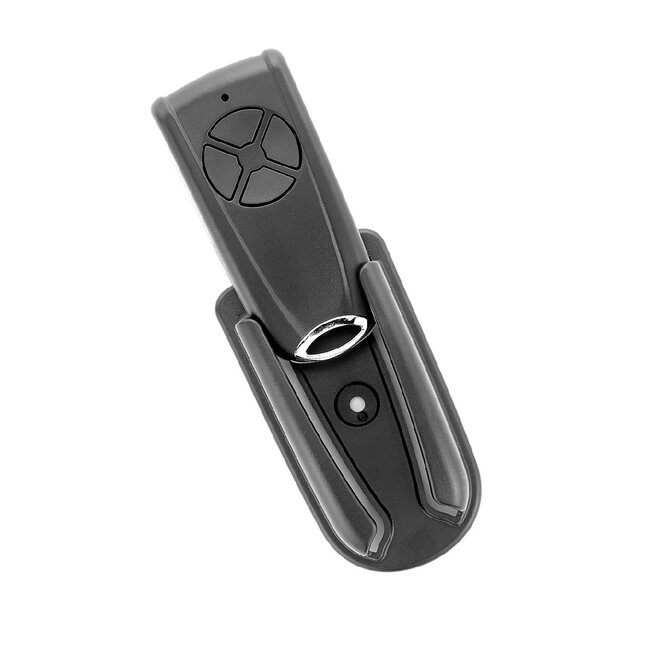

- including battery 3 Volt, type CR2032 and wall bracket
- self-learning rolling code for EcoStar and Liftronic
- range of up to 30 metres (depending on local conditions)
- transmitter must be learned in the receiver
- this transmitter is the successor to the Ecostar RSE2 handheld transmitter
- this transmitter can also be used instead of:
- Hörmann RS4-433 Handheld transmitter
- Hörmann RSM4-433 handheld transmitter

Anleitung Hörmann hand transmitter EcoStar RSC 4, 433 MHz BiSecur

Handheld transmitter EcoStar RSC4

With the EcoStar RSC4 handheld transmitter, you can easily and conveniently operate your Hörmann EcoStar garage door from the car. Please note: Remote control is only compatible with the EcoStar, Portronic and Liftronic garage door operators. You will need a different remote control for all other Hörmann garage door operators. There are 4 channels available on the Handheld transmitter RSC4, allowing you to remotely control 4 different garage doors with one remote control. The Handheld transmitter is compatible with the EcoStar RSE2.

The EcoStar handheld transmitter comes with the battery and a wall bracket. The range of up to 30 metres may be affected by local conditions. However, for safety reasons, it is recommended to use the Handheld transmitter only when the garage door is already in sight. The EcoStar RSC4 is set to the frequency 433.92 MHz, the housing and buttons are completely black. The detailed operating instructions make programming the remote control easy. If necessary, you can use the Transmitter's two buttons to remotely control two different garage doors.

Important note:
The Handheld transmitter offered is ONLY compatible with ECOSTAR, PORTRONIC or LIFTRONIC door operators! Other remote controls must be used for other Hörmann garage door operators
