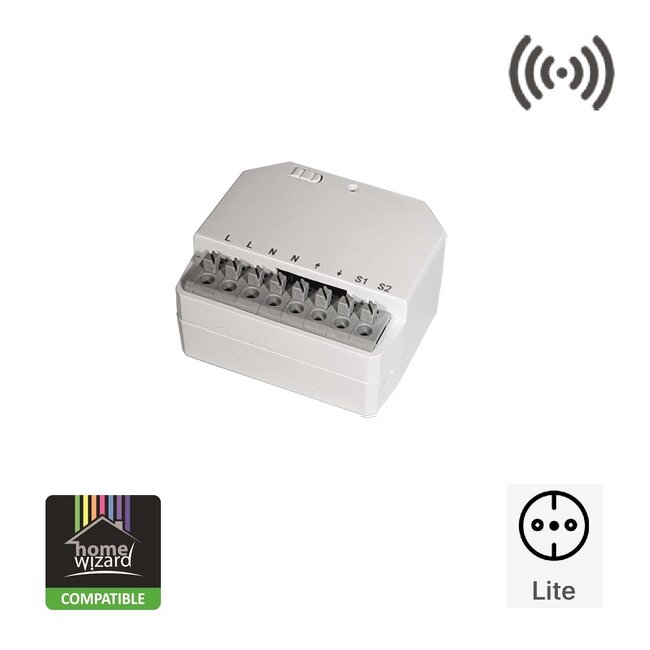

Brel RW100 bi-directional in-wall receiver for roller shutters, ideal when renovating a motorised roller shutter operated by a Switch. Read more.
The RW100 is a reliable radio receiver for wireless control of (garage) roller shutters, awnings and various drives. Thanks to its robust housing, it is suitable for built-in in a standard wall box and offers a durable and neat solution for any installation.
This receiver supports up to 20 handheld transmitters and is compatible with all DD handheld transmitters in our range. In addition, the RW100 can also be linked to the Brel Home hub and controlled via its app - ideal for those who want to intelligently control their blinds or Roller shutters.
- formerly DD117c
- compatible with: Roller shutters, awnings, garage drives
- frequency 433 MHz
- bi-directional
- max 20 transmitters
- range 35 metres indoors and up to 200 metres outdoors
- voltage 230 V
- switching capacity max 500 Watt
- suitable for 1 tubular motor
- dimensions 51x51x27 mm (wxhxd)
- fits in a flush-mounting box Ø 60, at least 30 mm deep
- possibility to connect pulse push button
- works with Brel Home hub + app
