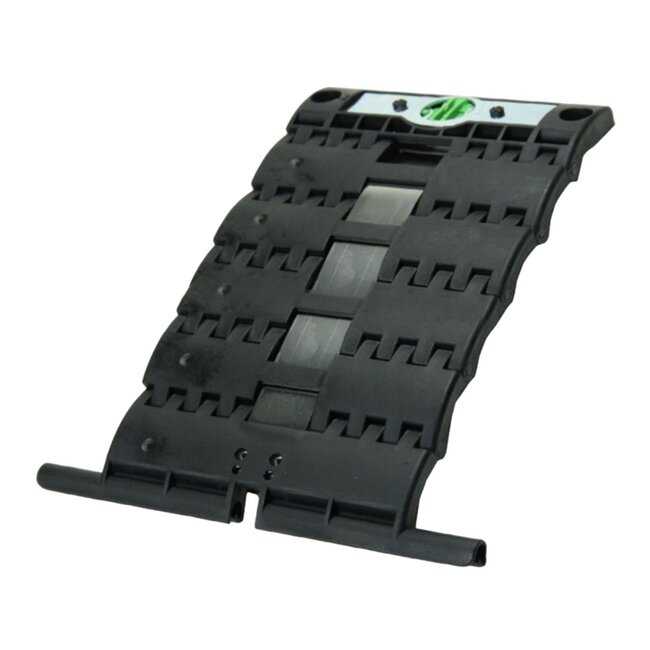

Selve SecuBlock rapid, rigid connection

Selve SecuBlock rapid, rigid joint

The SecuBlock rigid joint is used for connecting the roller shutter armour to the 8-angle steel roller shutter Axle/Shaft. SecuBlock is primarily intended for use with tube motors with hindrance detection.

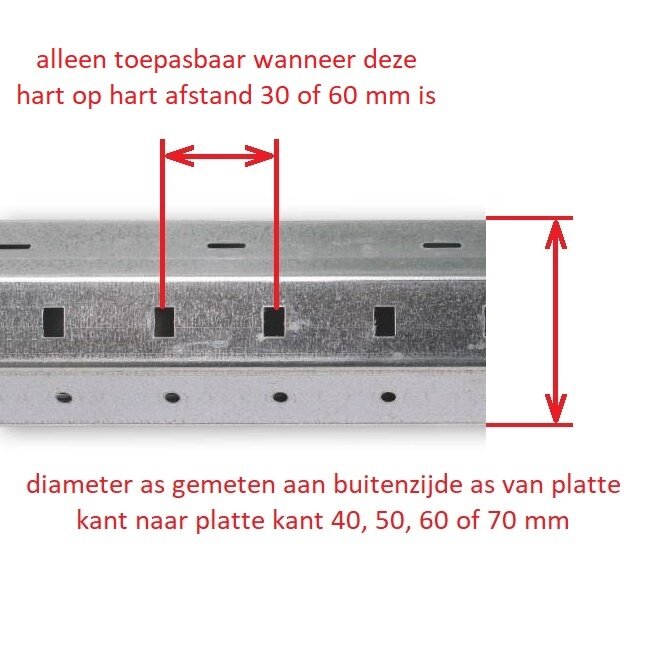

The SecuBlock fixings are connected without screws to the octagonal steel Axle/Shaft via the rectangular recesses (5.5 mm x 8.0 mm). This requires a precise centre-to-centre distance of these holes of 60 mm.

- Ensure automatic detection of obstacles and automatic detection of the
lower end point when used with roller shutter motors with obstacle detection
- works as anti-lift security for roller shutters
- you need at least 2 of these rigid joints per roller shutter
- The joints may be a maximum of 800 mm apart
- a minimum of 30 mm from the end Axle/Shaft and a maximum of 80 mm
- maximum weight of 8 kg per connection
- directly applicable for roller shutter profiles with a thickness of 7.5 - 13 mm (32 to 54 mm)
- additional connection piece available when using 13.5 - 18.5 mm thick profiles (55 and 77 mm)
- compatible with Roller shutter axles 8 side 40, 8 side 50, 8 side 60 and 8 side 70

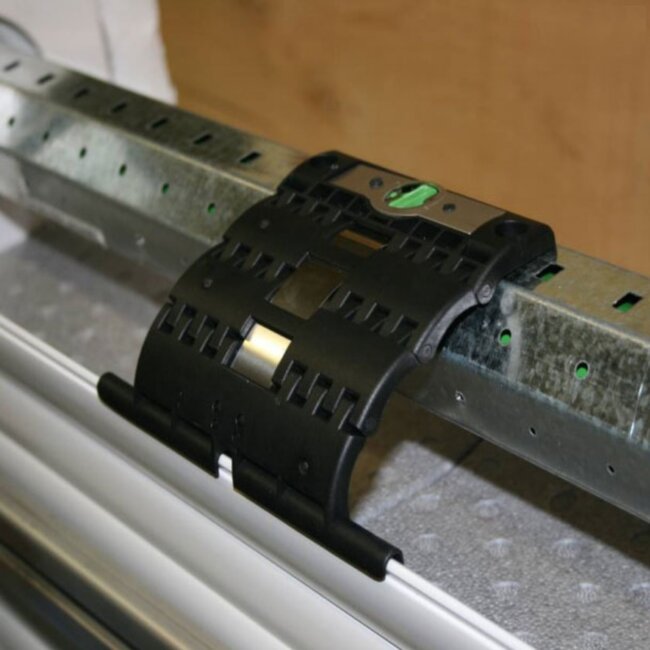

- quick assembly without tools, in the "rectangular holes" of your Roller shutter Axle/Shaft

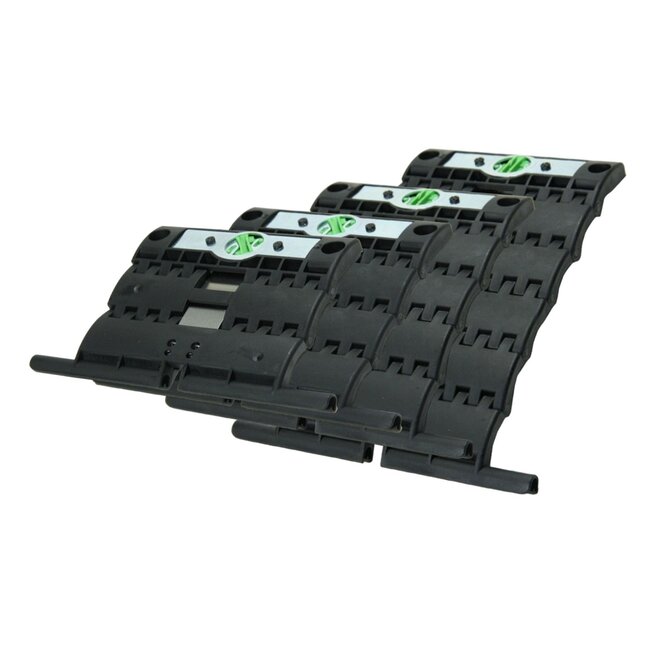

- available in:

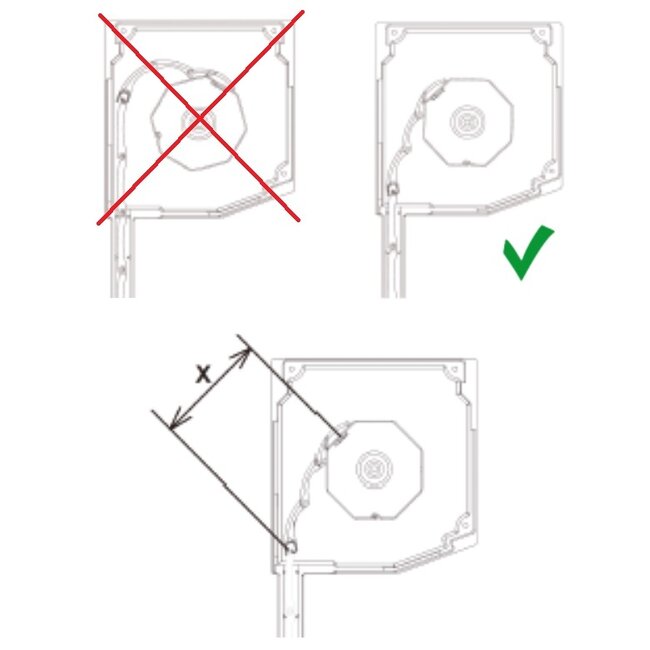

- 1 link - case 150-165 mm - X = 60-90 mm

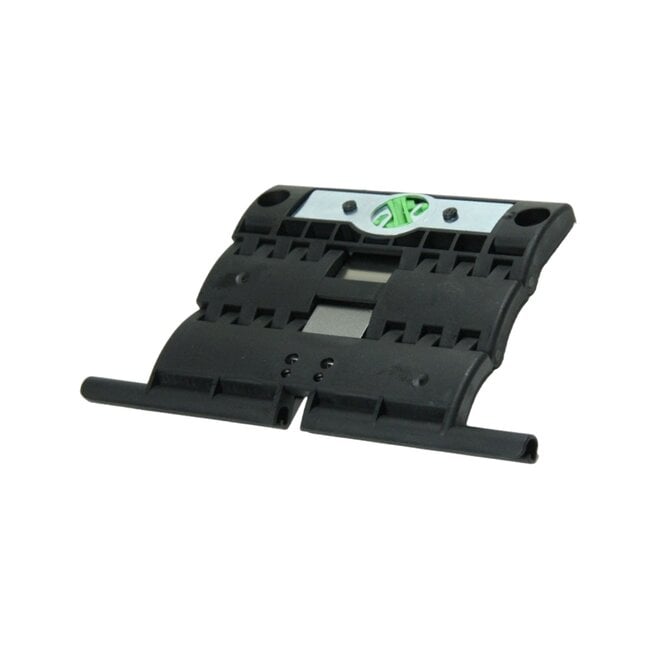

- 2 links - casing 180-205 mm - X = 85-115 mm

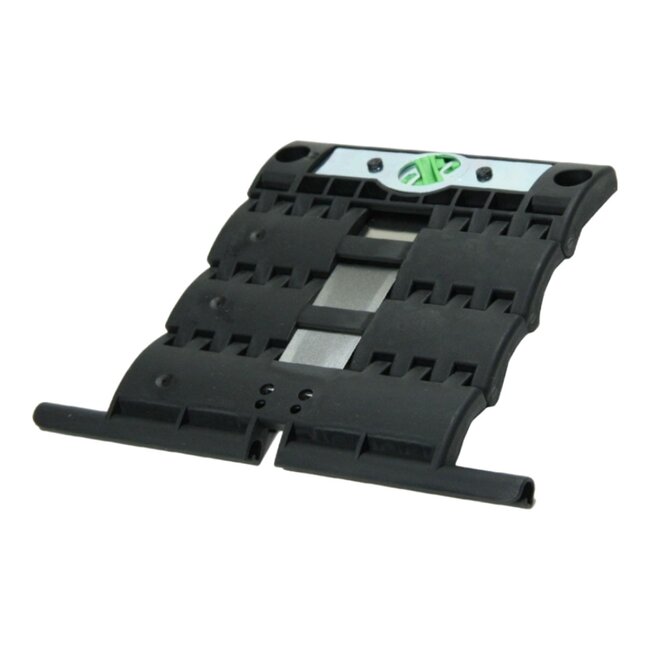

- 3 links - casing 230-300 mm - X = 110-140 mm

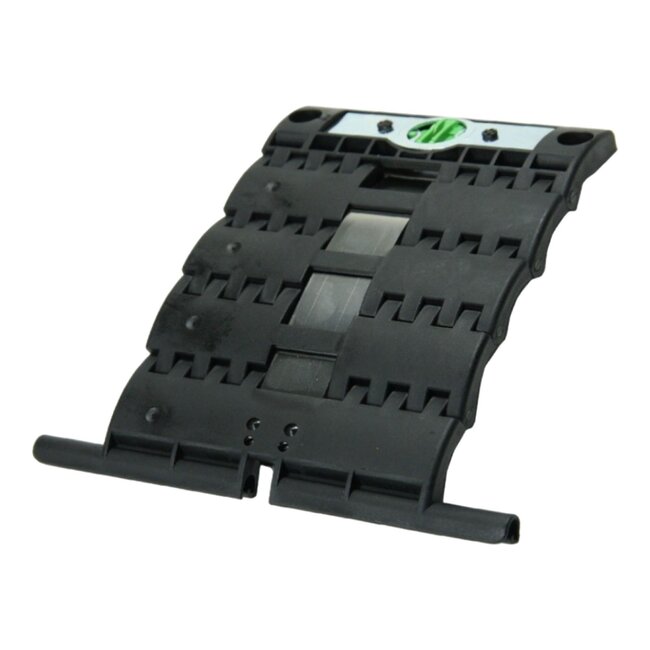

- 4 links - casing 360 mm - X = 135-165 mm

Discover the unparalleled security and performance of our Secu-Block roller shutter joints. These rigid joints are designed to enhance your peace of mind by ensuring a solid roller shutter closure, keeping your home protected from unwanted intruders.

A true innovation in roller shutter technology, the Seco-Block joint not only offers increased wind resistance, but also minimises annoying noise in windy conditions. So you can enjoy a quiet and comfortable living environment, regardless of the weather outside.

These rigid joints are universally applicable and perfectly fit small winding diameters for 8-sided Axle/Shafts such as SW 40 / SW 50 / SW 60 / SW 70. This versatile design allows for seamless integration with different window sizes and styles, while still delivering optimal performance.

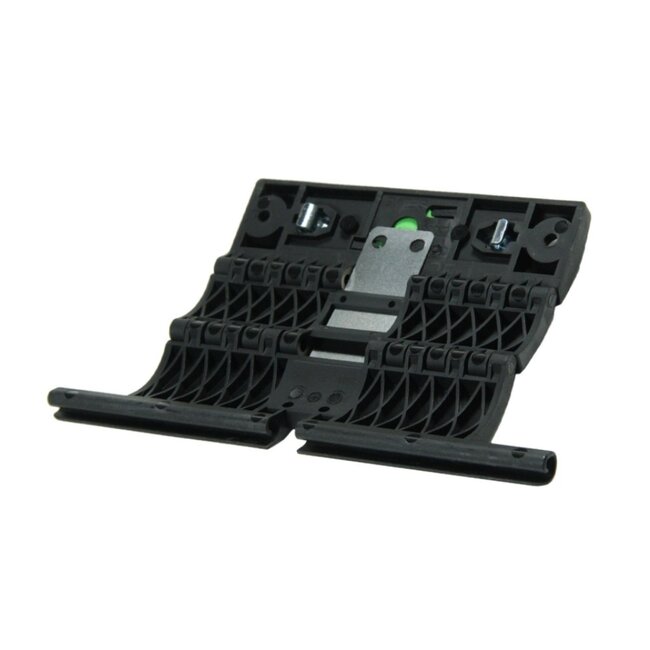

The high stability of the Secu-Block is guaranteed by high-quality spring steel and glass-fibre reinforced plastic, ensuring durability and reliability. This is just one of the many features that make the Selve Secu-Block a top choice for roller shutter systems.

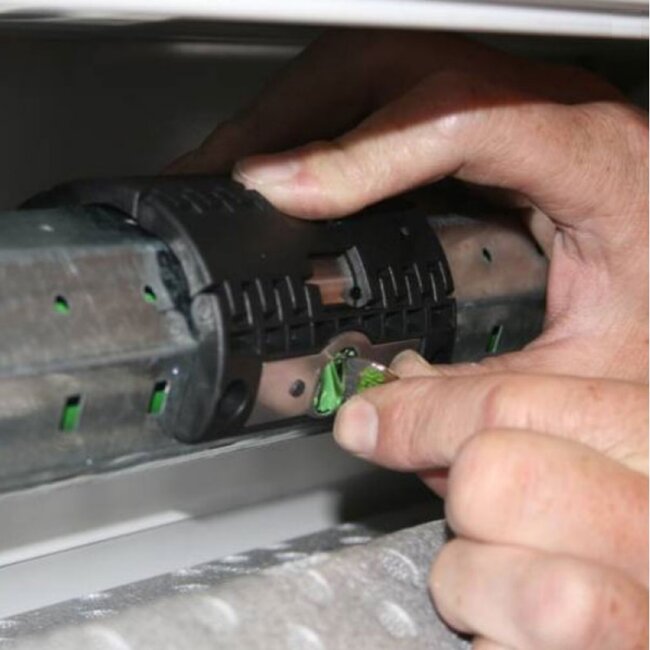

Installing and maintaining the Secu-Block is a breeze thanks to the simple and intuitive twist lock, which ensures comfortable locking. Moreover, additional coupling profiles are available for mini shutters and roller shutters with a 55 or 77 mm profile, making installation of the roller shutter armour effortless.

With four different lengths available, there is always a Secu-Block that fits the dimensions of your roller shutter box perfectly. And for situations where a twist lock is not the ideal solution, we also offer the option of screwing the Secu-Block in place for a perfect fit and installation. Choose peace of mind and top performance with Secu-Block roller shutter joints.
