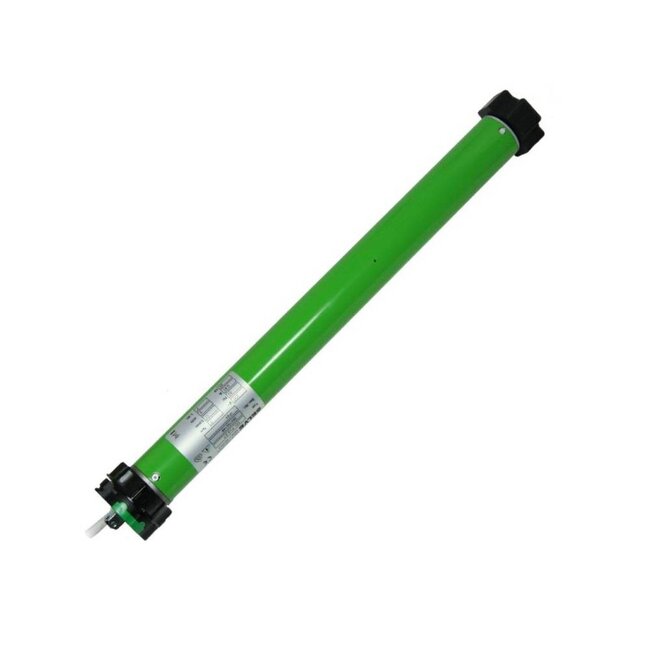

Selve SEM Plus, type 2 awning motor

SEM Plus, type 2 tubular motor for awnings

The Selve SEM Plus tubular motors guarantee that the awnings always close securely or move against the stop. Adjusting the awning after fabric stretching is not necessary because the Motor travels the preset distance with every movement. These motors can be used with all awnings. During the first installation, it is determined whether the Motor should reverse after reaching the end stop (short free run) or not. (e.g. cassette awning).

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 7 and 50 Nm
- speed 17 rpm (6 to 40 Nm) and 12 rpm (50 Nm)
- suitable for axle/Shaft from Ø 50 mm
- no adjustment of the awning after fabric stretching necessary
- simple motor adjustment via the four-axis connection
- soft stop against the end stop
- Built-in as usual
- external limit switches are not necessary
- protection of the awning during inward travel
- parallel connection of several SELVE electronics motors
- possible without additional switching elements
- simple adaptation to all conventional roller shutter tubes through a perfect adapter system
- automatic rotation direction allocation
- soft stop against the end stop
- adjusting the end positions of a SELVE motor is possible using:
- the SELVE motor adjustment switch or with
- any blind/shutter switch (only in semi-automatic adjustment mode)

Download the full manual here.
