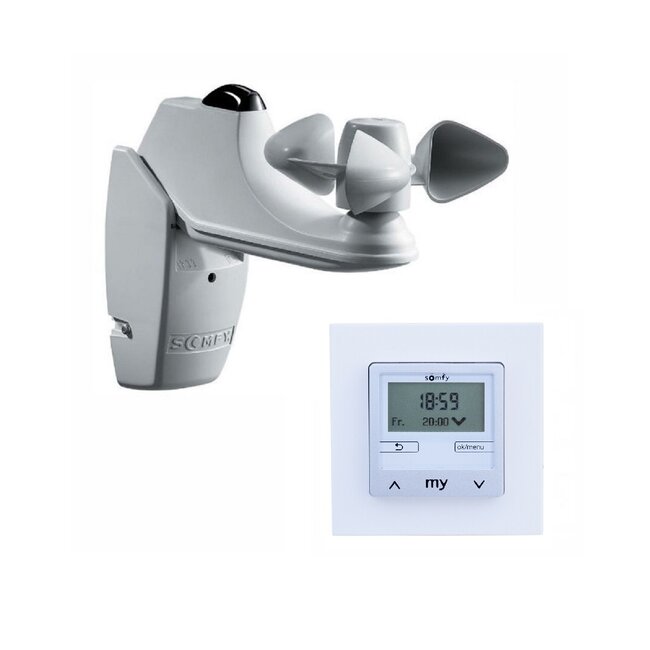

Somfy Soliris Uno sun and wind automaton set

Somfy Soliris Uno sun and wind control set

Automatically lowers and raises awnings based on the measured sunlight and wind speed. Connects directly to a standard tubular motor or to several motors via a relay box. Consists of control box and sun and wind sensor.

- design control with display, backlighting and touch operation
- manual operation is retained by touch control on dispaly
- This set consists of:
- Somfy Soliris sun and wind sensor with 5 mtr cable, article 2821
- Somfy Soliris Smoove Uno control panel, article 2818
- sun function can be switched off permanently (in winter) or temporarily (6,12 or 18 hours)
- built-in timer function
- can send the products to a certain position at a fixed time
- to switch the sun function on and off automatically
- to temporarily deactivate and automatically reactivate the automatic operation
- possibility of setting the intermediate position
- also suitable for controlling blinds
- sun limit values adjustable from 0 to 60kLux
- wind limits adjustable from 10 to 80 km/h (2-9Bft)
- control (motor runtime) can be set manually
- smart electronics ensure optimal delay times, so no unnecessary control in variable weather conditions
- several tubular motors can be controlled via relay boxes
- white cover frame supplied as standard
- data can be quickly loaded or copied using the quick copy tool
- an order is given 2 seconds after exceeding the wind threshold
- Option of connecting Ondeis rain sensor, article 2820 (9016345)
- Supplied without Inteo surface-mounted housing (item 2070)

Fixed delays
- sun comes: 2 minutes
- sun goes: 30 and if below 12 klux 15 minutes
- wind comes: 2 seconds
- wind goes: 12 minutes
