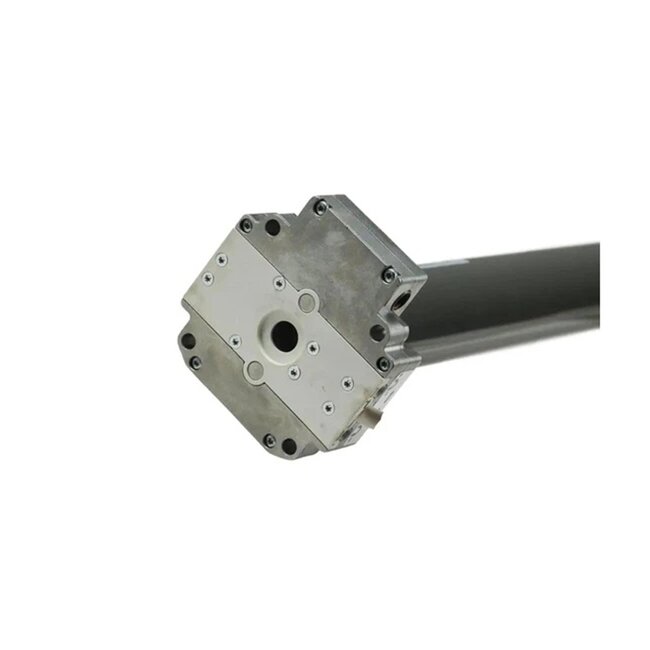

Selve SP, type 3 NHK tubular motor

Selve SP 3 NHK tubular motor

The Selve SP3 is a powerful with emergency hand control specifically for Roller shutters. This motor is known for its fast operation and durable performance within both private and industrial applications.

Thanks to the integrated emergency hand control (NHK), the system remains easy to operate with a handheld hose even in the event of a power failure. This makes this type of motor very suitable for roller grilles, roller gates and larger awnings, among others.

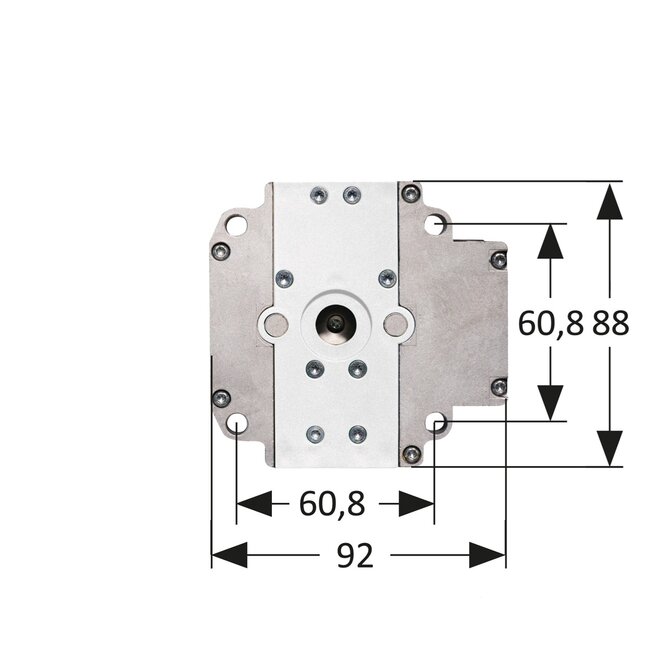

The Motor is equipped with a spindle-controlled final adjustment. Adjusting the upper and lower positions is easy via two socket head screws on the motor head, ensuring accurate and safe adjustment.

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 50 to 120 Nm
- speed 11, 12 and 17 rpm depending on motor power
- suitable for axle/Shaft from Ø 70 mm
- tubular motor with mechanical limit switch
- spindle limit switch with microswitch and patented spin protection
- reduction in installation width due to universal motor head
- Built-in in the familiar way
- easy adaptation to all conventional roller shutter tubes through a perfect adapter system
- no top stop required thanks to position-controlled switch-off

- Selve SP 3/50 NHK - 50 Nm - 17 rpm - length 776 mm
- Selve SP 3/60 NHK - 60 Nm - 12 rpm - length 776 mm
- Selve SP 3/70 NHK - 70 Nm - 17 rpm - length 776 mm
- Selve SP 3/80 NHK - 80 Nm - 12 rpm - length 776 mm
- Selve SP 3/120 NHK - 120 Nm - 11 rpm - length 776 mm
