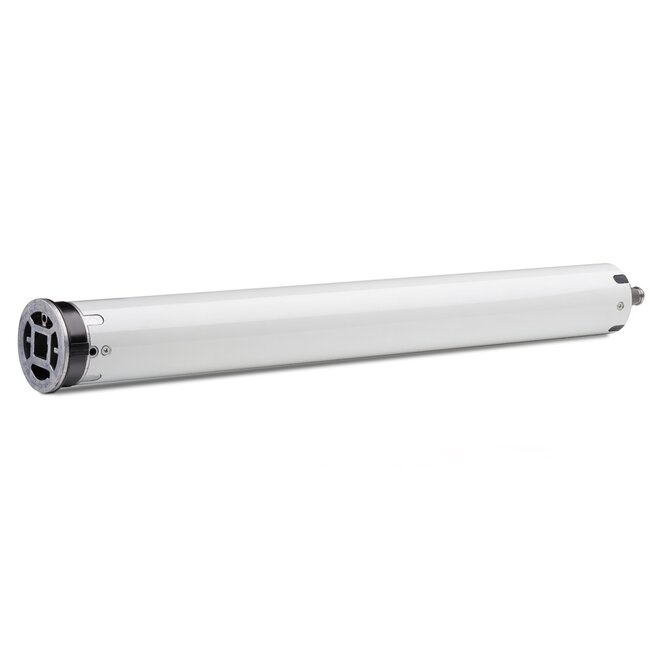

Elero SunTop L RH tubular motor

Elero SunTop L RH tubular motor

With a diameter of 63 mm and a length from 000 mm, the SunTop L series tubular motors are suitable for awnings, screens and roller blinds. These drives are available in 40, 60 and 80 Nm and 14 rpm. The adjustment of the end positions is done with a separately available adjustment cable, making it easy to adjust the Motor even when the awning box is completely closed. With adapter plate, you can reuse the already installed motor support of an old Elero T11.

- tubular motor specifically for blinds
- Supplied without motor support and adapter set
- tubular motor with a diameter of Ø 55
- electronic end position adjustment with soft-stop function
- end positions must be set via mounting cable (available separately)
- intelligent force measurement
- tubular motor 230 V/50 Hz
- speed 14 rpm
- available in 40, 60 and 80 Nm
- limit switch range 40 rpm
- protection class IP44
- 4-core white cable with a length of 2 metres
- tubular motor fits into tube with a minimum diameter of Ø 70 mm
- blocking detection up/down
- blocking detection in upward direction with repeat function
- blocking detection in downward direction with repeat function
- relief at end positions can be activated
- parallel switching possible
- Not suitable for continuous operation

- Elero SunTop L 40 SH - 40 Nm - 14 rpm - 280 Watt - length 515 mm
- Elero SunTop L 60 SH - 60 Nm - 14 rpm - 380 Watt - length 575 mm
- Elero SunTop L 80 SH - 80 Nm - 14 rpm - 490 Watt - length 575 mm
