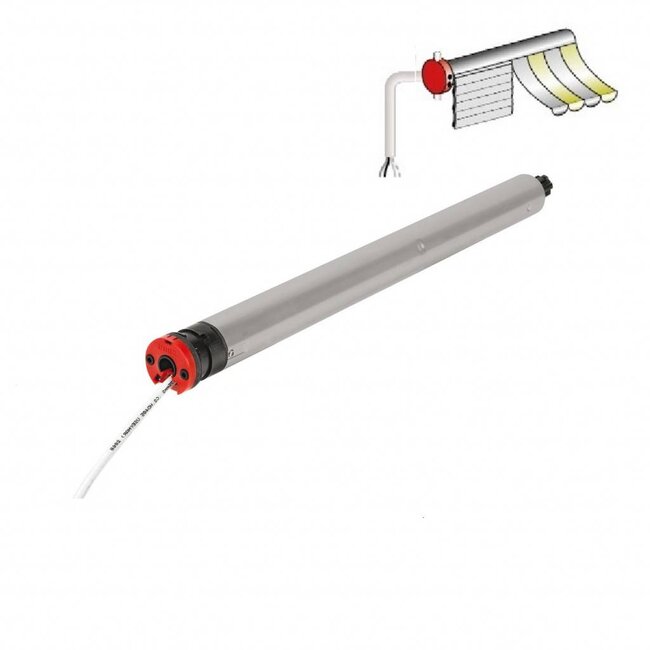

Simu T3.5 tubular motor for screens and Roller shutters

Tubular motor for screens and roller shutters

- Supplied excluding motor support and adaptation kit
- Power supply: 230 V/50 Hz.
- Speed: 30 rpm at 3 Nm, 16 rpm at 4, 6 & 9 Nm, 10 rpm at 13 Nm
- Adjustment via recessed set screws.
- Compatible with relay boxes, standard switches and standard control units.
- The roller shutter motor fits into a tube with a minimum internal diameter of Ø 40 mm.
- End-stop adjustment range: 40 revolutions (± 8°).
- Roller shutter motor supplied as standard with a 3-core white cable, length 2.5 m.
- Accessories: Somfy LT40 tubular motors or Simu T3.5
- Not suitable for continuous use.
