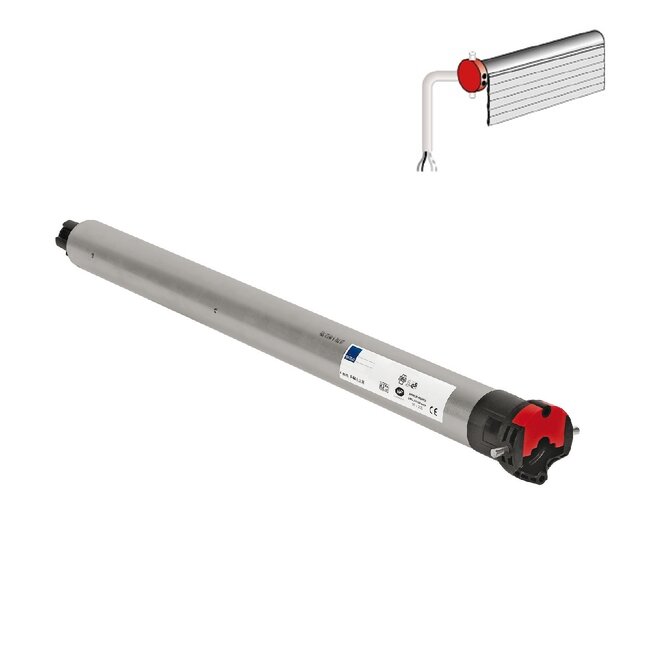

Simu T5 E roller shutter motor with automatic adjustment

Simu tubular motor T5 E with automatic adjustment

- supplied without motor support and adapter set
- wired tube motor especially for Roller shutters
- final adjustments are set fully automatically
- available in strengths from 8 to 50 Nm
- power supply 230 V/50 Hz.
- speed 17 rpm for 8 to 35 Nm and speed 12 rpm for 50 Nm

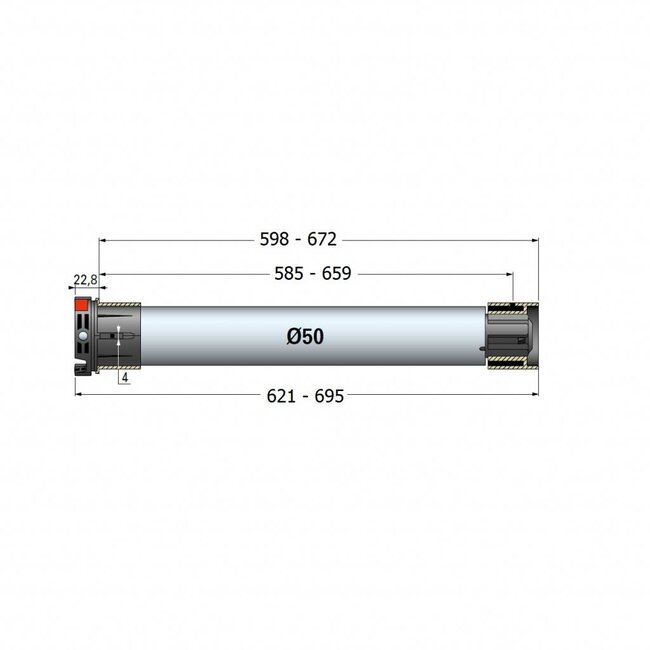

- fits into a tube with a minimum inner diameter of Ø 47 mm.
- supplied as standard with a 4-core white cable, length 5 m.
- accessories Somfy LT50 tube motors or Simu T5
- maximum protection and comfort through:
- obstacle detection,
- anti-optil function,
- frost protection
- simple and quick adjustment with the adjustment switch T5E / T5 ESP, article 3717
- no maintenance on the final adjustment by automatic maintenance cycle after every 56 cycles
- capacity of the final adjustment: 3 minutes
- removable cable
- 3 motors can be connected in parallel
