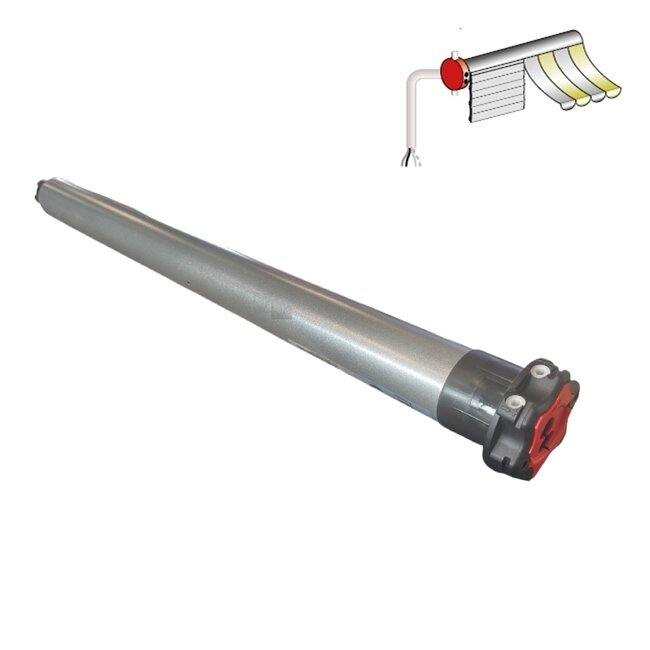

Simu T5 S tubular motor / roller shutter motor - 17 rpm

Name: Simu T5 S tubular motor / roller shutter motor - 17 rpm
Brand: Simu
SKU: 2010408
Price: 109.95 EUR
Availability: InStock

A Simu T5 S with 17 rpm is the familiar Simu T5 now equipped with a StarHead motor head, suitable for hoods, drop-down screens, screens, and roller shutters. The tubular motor is available in 8 to 35 Nm and can be adjusted with rotating pins. Read more.

109,95 Incl. tax

In stock

Make a choice:

Je hebt nog 00:00:00 uur om je bestelling af te ronden.

Fast delivery Delivery within 2 working days
Free shipping when spending €100 (in NL)
Affiliated to Home shopping guarantee

Product description

Simu T5 S tubular motor - 17 rpm - mechanical adjustment

- supplied without motor support and adapter set

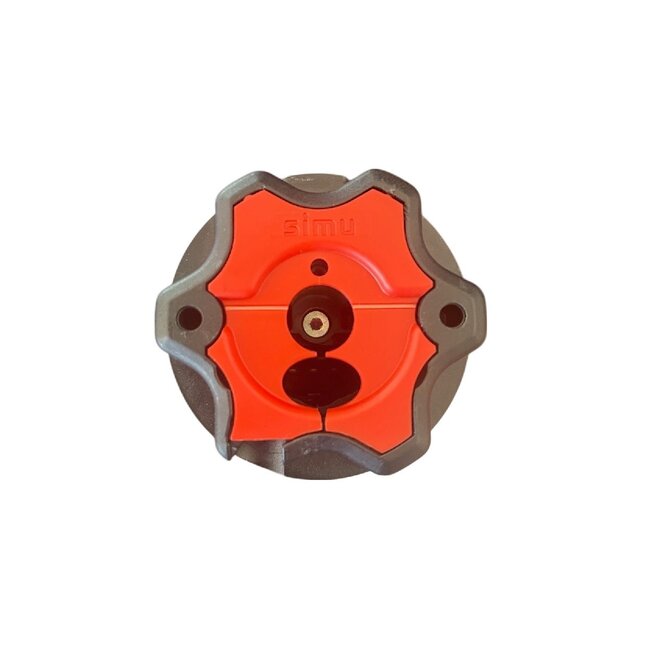

- equipped with new StarHead motor head
- 15, 25 and 35 Nm are no longer supplied in 17 rpm since new SH motor head
- power supply 230 V/50 Hz
- available in 8 to 30 Nm
- speed 17 rpm
- adjustment with countersunk pins.
- Applicable with relay boxes, standard switches and standard controllers.
- fits a tube with a minimum inner diameter of Ø 47 mm.
- final adjustment capacity: 29 revolutions (± 8°).
- supplied as standard with a (detachable) 4-wire white cable, length 2.5 m.
- accessories Somfy LT50 tubular motors or Simu T5
- not suitable for continuous use.

-- download here the assembly instructions for the T5 tubular motor --
