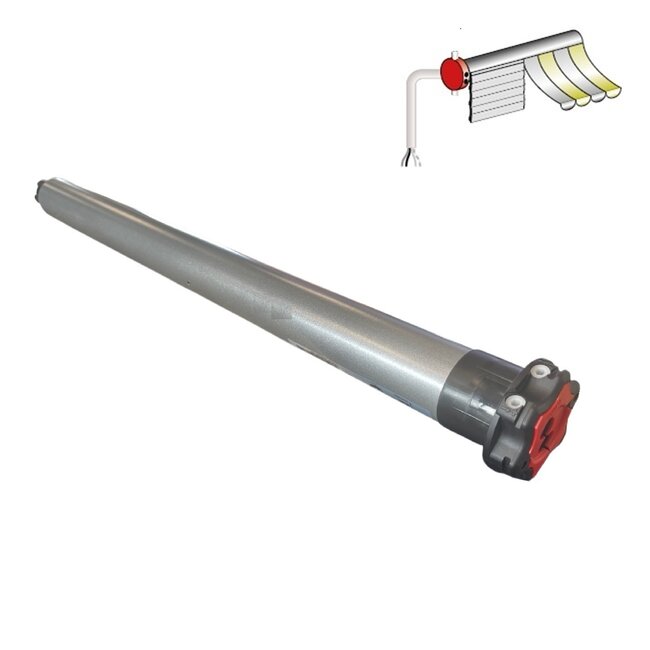

Simu T5 S tubular motor / roller shutter motor

Simu T5 S tubular motor - mechanical adjustment

- supplied without motor support and adapter set

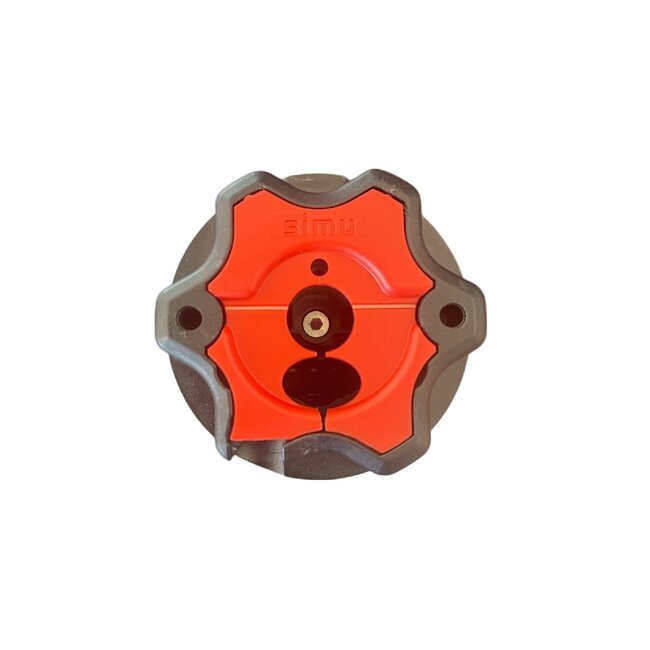

- equipped with new StarHead motor head
- 15, 25 and 35 Nm are no longer supplied in 17 rpm.
- 6, 10, 15, 20 and 30 Nm are no longer delivered in 12 rpm
- power supply 230 V/50 Hz.
- speed 12 or 17 rpm depending on force
- adjustment via countersunk pins.
- applicable with relay boxes, standard switches and standard controllers.
- fits a tube with a minimum inner diameter of Ø 47 mm.
- final adjustment capacity: 29 revolutions (± 8°).
- supplied as standard with a (detachable) 4-wire white cable, length 2.5 m.
- accessories Somfy LT50 tubular motors or Simu T5
- not suitable for continuous use.

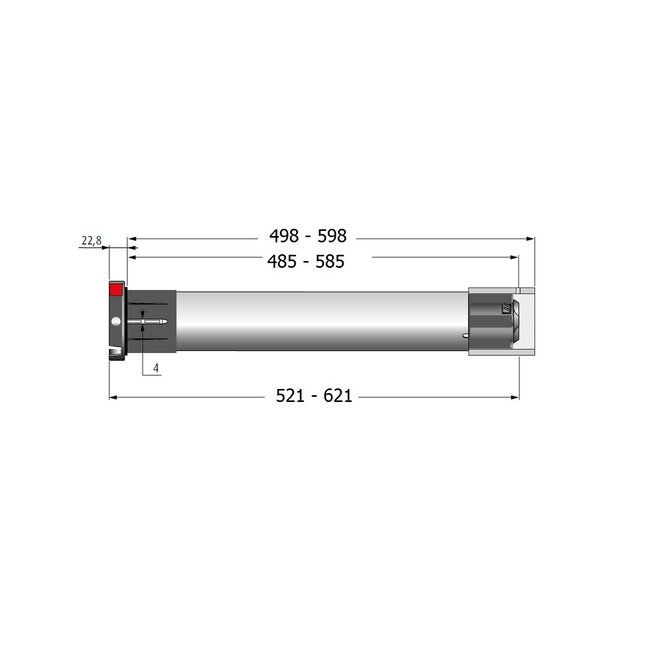

Type Simu T5 S tubular motors
- Simu T5 S 8/17 - 8 Nm - 17 rpm - 100 Watt - length 521 mm
- Simu T5 S 10/17 - 10 Nm - 17 rpm - 120 Watt - length 521 mm
- Simu T5 S 20/17 - 20 Nm - 17 rpm - 160 Watt - length 621 mm
- Simu T5 S 30/17 - 30 Nm - 17 rpm - 240 Watt - length 621 mm
- Simu T5 S 40/12 - 40 Nm - 12 rpm - 240 Watt - length 621 mm
- Simu T5 S 50/12 - 50 Nm - 12 rpm - 240 Watt - length 621 mm

-- download here the assembly instructions for the T5 tubular motor --
